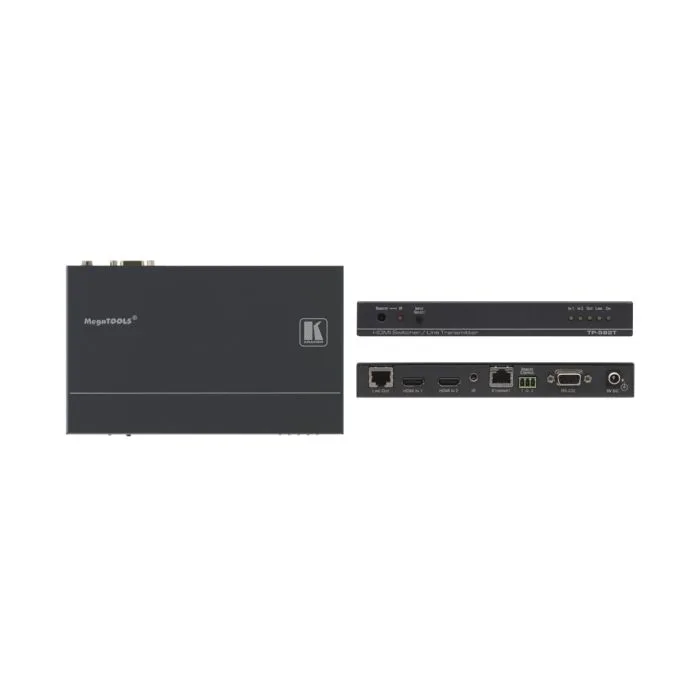

Nadajnik Kramer TP-582T
Nadajnik sygnałów HDMI, dwukierunkowego RS-232, Ethernet i IR, wysyłanych skrętką.
Wyjście skrętki: RJ-45.
SKU
TP-582T
The TP−582T is a high−quality twisted pair transmitter for HDMI, Ethernet 100BaseT, bidirectional RS−232 and IR signals. The TP−582T selects one of two HDMI inputs, and converts it with the Ethernet 100BaseT, RS−232 and IR input signals to an HDBaseT twisted pair signal. The TP−582R converts the HDBaseT twisted pair signal back to Ethernet 100BaseT, RS−232, IR and two HDMI outputs, and de−embeds the audio to S/PDIF and TOSLINK® audio outputs.
-
Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
-
HDBaseT Technology.
-
HDTV Compatible.
-
HDCP Compliance.
-
HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
-
3D Pass-Through.
-
EDID PassThru - Passes EDID signals between the source and display.
-
Bidirectional RS-232 Interface - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and control of the destination unit.
-
Ethernet Interface - Passes 100BaseT.
-
System Range - Up to 100m (330ft).
-
Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
-
Control - Front panel and contact closure switching.
-
Indicators - Status LEDs for input selection, output, link and power.
-
Compact MegaTOOLS® - 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−T2B universal rack adapter.
Zastosowania
Home theater, presentation and multimedia applications.
Rental and staging.
Przykładowa aplikacja
Specyfikacja
INPUTS: | 2 HDMI connectors, 1 IR on a 3.5mm mini jack, 1 Ethernet 100BaseT on an RJ−45 connector, 1 RS−232 on a 9−pin D−sub connector, 1 remote contact closure on a terminal block connector. |
OUTPUT: | 1 HDBaseT RJ−45 connector. |
MAX. DATA RATE: | 6.75Gbps (2.25Gbps per graphic channel). |
COMPLIANCE WITH HDMI STANDARD: | Supports HDMI and HDCP. |
POWER CONSUMPTION: | 5V DC, 800mA. |
DIMENSIONS: | 18.8cm x 11.4cm x 2.4cm (7.4" x 4.5" x 1.0") W, D, H. |
WEIGHT: | 0.6kg (1.4lbs). |
ACCESSORIES: | Power supply. |
OPTIONS: | RK−T2B 19” rack mount. |
Skrót właściwości | Nadajnik sygnałów HDMI, dwukierunkowego RS-232, Ethernet i IR, wysyłanych skrętką. Wyjście skrętki: RJ-45. |
---|
