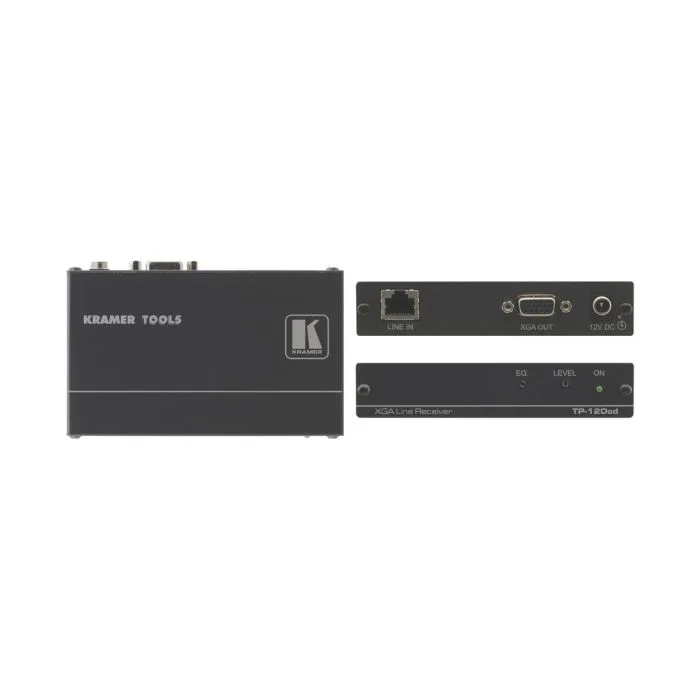

Odbiornik Kramer TP-120-od
Odbiornik sygnałów VGA wysyłanych skrętką, z zabezpieczeniem EMP.
Wyjście skrętki: RJ-45.
SKU
TP-120-od
The TP−120−od is a twisted pair receiver for computer graphics video signals. When used in conjunction with the PT−110−od twisted pair transmitter (or other compatible Kramer transmitter), it converts a twisted pair signal back into a computer graphics video signal.
-
Max. Resolution - WUXGA & 1080p.
-
HDTV Compatible.
-
EMP Protection - Protected from voltage surges induced by the electromagnetic field of nearby lightning. The system does not protect against direct lightning strikes.
-
Twisted Pair Input - RJ−45.
-
Level (Gain) and EQ (Peaking) Controls.
-
System Range - Up to 100m (320ft), greater distances possible depending on resolution and cable.
-
Cable - UTP (unshielded twisted pair) or STP (shielded twisted pair) such as CAT 5.
-
Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 50m (150ft) of each other.
-
Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
Zastosowania
Presentation and multimedia applications.Long range graphics distribution for schools, hospitals, security and point of sale.
Przykładowa aplikacja
Specyfikacja
| INPUT: | 1 RJ−45 line in. |
| OUTPUT: | 1 VGA/UXGA on a 15−pin HD connector. |
| MAX. OUTPUT LEVEL: | 1.7Vpp. |
| MAX. RESOLUTION: | WUXGA & 1080p. |
| S/N RATIO: | 80dB. |
| CONTROLS: | −10.3dB to +1.7dB 60m, level; 0dB to +35dBu 100m, EQ. |
| COUPLING: | AC. |
| POWER CONSUMPTION: | 12V DC, 240mA. |
| DIMENSIONS: | 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98") W, D, H. |
| WEIGHT: | 0.3kg (0.66lbs) approx. |
| ACCESSORIES: | Power supply. |
| OPTIONS: | RK−3T 19" rack adapter. |
| Skrót właściwości | Odbiornik sygnałów VGA wysyłanych skrętką, z zabezpieczeniem EMP. Wyjście skrętki: RJ-45. |
|---|
