Przełącznik Kramer DIP-30

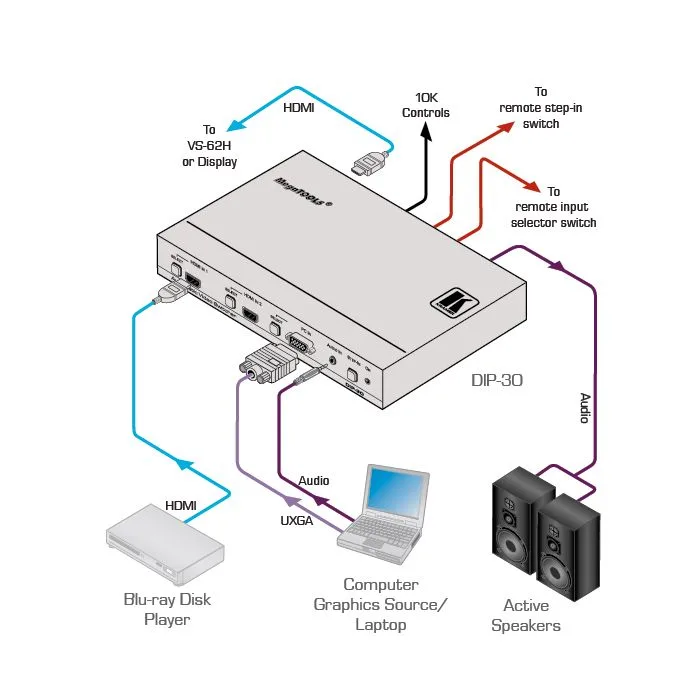

The DIP−30 is a 4K UHD automatic switcher for HDMI, VGA, Ethernet, data and unbalanced audio signals. The unit supports resolutions up to 4K@60Hz (4:2:0) UHD and various modes of input selection and transmits the signal via HDMI cable to a compatible receiver (for example the VS−62H or when connecting directly to a display/projector). The DIP−30 is a Step−in commander when connected to a matrix switcher that supports Step−in over HDMI such as the VS−62H.

• Max. Resolution — 4K@60Hz (4:2:0) UHD and WUXGA.
• Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
• HDTV Compatible.
• HDCP Compliant — With sources that support HDCP repeater mode.
• HDMI Support — Deep Color, x.v.Color™ and 3D.
• Automatic Live Input Detection — Based on video clock presence.
• Automatic Input Selection — Based on priority selection or last connected input.
• Manual Input Selection.
• Step–in Support.
• Automatic Analog Audio Detection & Embedding.
• Convenient Control — Via Kramer Protocol 3000 and embedded Web pages over a LAN.
• I–EDIDPro™ Kramer Intelligent EDID Processing™ — Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
