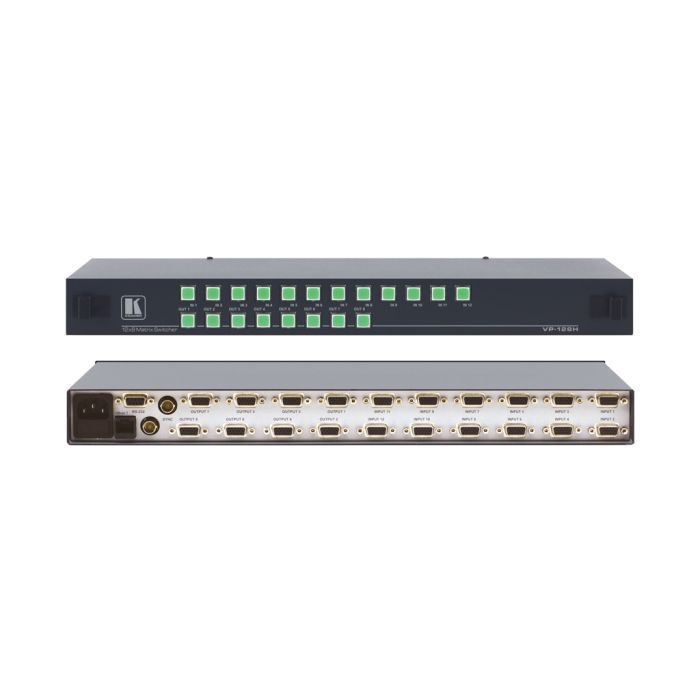

Przełącznik Kramer VP-128H
Przełącznik 12x8 sygnałów grafiki komputerowej o rozdzielczości przekraczającej UXGA.
Pasmo przenoszenia 315 MHz (-3 dB)
SKU
VP-128H
! Ograniczona dostępność. Urządzenie zostanie wycofane po wyczerpaniu stanów magazynowych we wszystkich oddziałach Kramer.
The VP-128H is a high performance matrix switcher for computer graphics video signals, with resolutions ranging from VGA through UXGA and higher on HD-15 connectors. It can route any or all inputs to any or all outputs simultaneously.
-
Bandwidth-315MHz (- 3dB) fully loaded.
-
Memory Locations-Store multiple switchesas presets to be recalled and executed whenneeded.
-
Delayed SwitchingTM-Switches sync ahead ofvideo to provide near glitch-free switching of nongenlocked sources.
-
Linear Sync Processing-to process nonstandardsync signals.
-
Vertical Interval Switching.
-
Looping Analog Sync Input.
-
Control-Front panel (removable for remoteoperation), RS-232 (K-Router™ Windows®- based software is included), and Ethernet.
-
Standard 19” Rack Mount Size-1U.
Zastosowania
Any professional display system requiring a true 12x8 computer graphics matrix operation.
Multimedia and presentation source and acceptor selection.
Przykładowa aplikacja
Specyfikacja
INPUTS: | 12 analog red, green, blue signals - 0.7 Vpp / 75Ω; H & V syncs, TTL level on HD15F connectors. The H and V channels are not TTL, they are linear |
OUTPUTS: | 8 analog red, green, blue signals - 0.7 Vpp / 75Ω; H & V syncs, TTL level on HD15F connectors. The H and V channels are not TTL, they are linear |
MAX. OUTPUT LEVEL: | +/- 1.5V |
BANDWIDTH (-3dB): | 315MHz, Fully Loaded |
DIFF. GAIN: | < 0.06 % |
DIFF. PHASE: | < 0.17 deg. |
K-FACTOR: | <0.05% |
S/N RATIO: | 60dB weighted to 5MHz |
CROSSTALK (all hostile): | > 45dB@150MHz |
CONTROLS: | 24 front panel switches, RS-232 |
COUPLING: | DC |
POWER SOURCE: | 90-240VAC 47-63Hz, 120mA AC |
DIMENSIONS: | 48.3cm x 30.5cm x 4.5cm (19-inch x 12-inch x 1U, W, D, H) rack mountable |
WEIGHT: | 5.5 kg. (12.2 lbs.) approx. |
ACCESSORIES: | Power cord, Null modem adapter, Control software |
Skrót właściwości | Przełącznik 12x8 sygnałów grafiki komputerowej o rozdzielczości przekraczającej UXGA. Pasmo przenoszenia 315 MHz (-3 dB) |
---|
