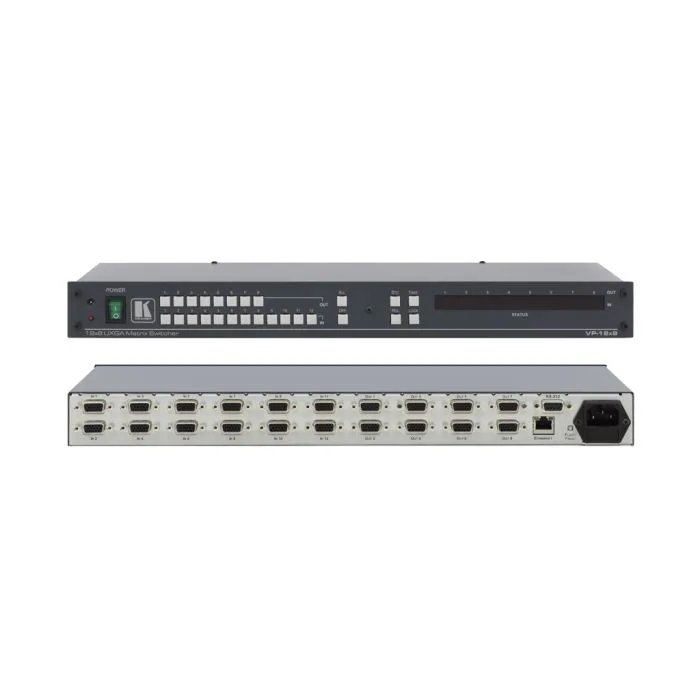

Przełącznik Kramer VP-12x8
Przełącznik 12x8 sygnałów grafiki komputerowej o rozdzielczości przekraczającej UXGA.
Pasmo przenoszenia 380 MHz (-3 dB)
SKU
VP-12x8
The VP−12x8 is a high−performance matrix switcher for computer graphics video signals, with resolutions up to and exceeding UXGA on 15−pin HD connectors. It can route any or all inputs to any or all outputs simultaneously.
-
High Bandwidth-380Mhz.
-
HDTV Compatible.
-
Memory Locations-Stores multiple switches as presets to be recalled and executed when needed.
-
Take Button-Executes multiple switches all at once.
-
Front Panel Control Lockout.
-
Control-RS−232 (K−Router™ Windows®−based Kramer software is included), Ethernet & IR Remote (included).
-
Worldwide Power Supply-100−240V AC.
-
Standard 19” Rack Mount Size-1U. Rack “ears” included.
Zastosowania
Any professional display system requiring a true 12x8 computer graphics matrix operation.
Multimedia and presentation source and acceptor selection.
Przykładowa aplikacja
Specyfikacja
INPUTS: | 12 VGA on 15−pin HD connectors (VGA through UXGA). |
OUTPUTS: | 8 VGA on 15−pin HD connectors (VGA through UXGA). |
MAX. OUTPUT LEVEL: | 2Vpp. |
BANDWIDTH (-3dB): | 380MHz. |
DIFF. GAIN: | 0.06%. |
DIFF. PHASE: | 0.03Deg. |
K-FACTOR: | <0.05%. |
S/N RATIO: | 71.5dB @5MHz. |
CROSSTALK (all hostile): | −49dB @5MHz. |
COUPLING: | DC. |
CONTROLS: | RS−232, Ethernet & IR remote. |
INDICATORS: | 8−character display on the front panel. |
POWER CONSUMPTION: | 100−264V AC, 50/60Hz; 12VA. |
DIMENSIONS: | 19" x 7" x 1U W, D, H, rack mountable. |
WEIGHT: | 2.7kg (6lbs) approx. |
ACCESSORIES: | Power cord, null−modem adapter, Windows® based Kramer control software, infrared remote control transmitter, rack "ears". |
Skrót właściwości | Przełącznik 12x8 sygnałów grafiki komputerowej o rozdzielczości przekraczającej UXGA. Pasmo przenoszenia 380 MHz (-3 dB) |
---|
