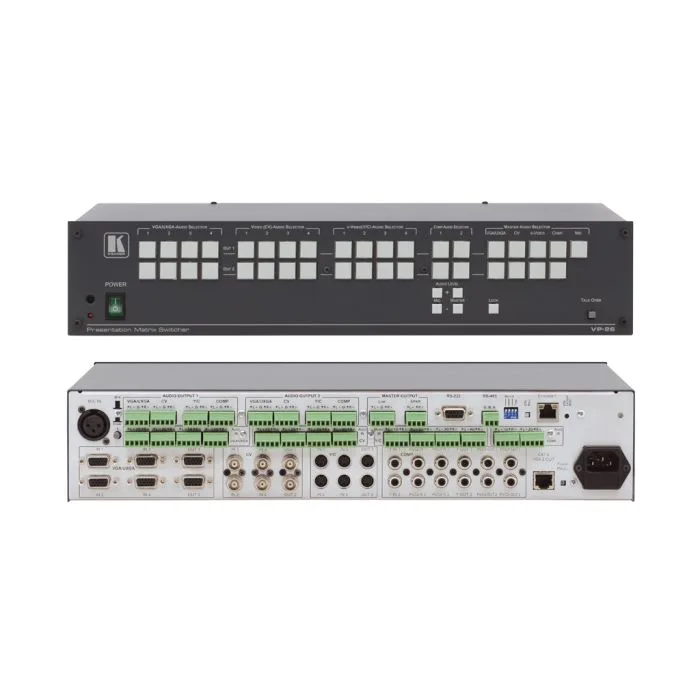

Przełącznik Kramer VP-26
Przełącznik wieloformatowy sygnałów composite video, s-Video, YUV i VGA.
Pasmo przenoszenia do 430 MHz (-3 dB)
SKU
VP-26
! Ograniczona dostępność. Urządzenie zostanie wycofane po wyczerpaniu stanów magazynowych we wszystkich oddziałach Kramer. Prosimy o kontakt, przed złożeniem zamówienia.
The VP−26 is a 4x2 composite or SDI video, 4x2 s−Video (Y/C), 2x2 component (YUV) and 4x2 computer graphics video matrix switcher, each with balanced stereo audio. It is designed for a wide variety of presentation and multimedia applications.
-
Bandwidth-Video: VGA/UXGA: 300MHz, YC: 320MHz, CV: 420MHz, Component video: 380MHz, CAT 5: up to UXGA; Audio: Group: 46kHz, Speakers: 40kHz, Master: 33kHz.
-
HDTV Compatible.
-
Multi-Mode-Configure as either a 4x2 composite or SDI video, an 4x2 s-Video (Y/C), a 2x2component (YUV), or 4x2 computer graphics video switcher.
-
Control-Front panel, RS-232 (K-Router™Windows® - based software is included), & RS-485, Ethernet, & IR.
-
Size-19” (2U)
Zastosowania
Any large professional display system requiring video signal routing.
Broadcast, presentation and production facilities.
Rental and staging applications.
Monitoring in large duplication systems.
Przykładowa aplikacja
Specyfikacja
| INPUT: | 4 VGA/UXGA on 15-pin HD (F) connectors; 4 s-Video, 1Vpp (Y), 0.3Vpp/75Ω (C) on 4-pin connectors; 4 composite video 1Vpp/75Ω on BNC connectors; 2 sets of component video (Y, Pb/Cb, Pr/Cr) 1Vpp, 0.7Vpp, 0.7Vpp on RCA connectors. Each input is accompanied by the appropriate balanced stereo-audio channels: +4dBu/50kΩ on detachable terminal block connectors; Mic: 3mV/10kΩ condenser/dynamic on an XLR connector. |
| OUTPUT: | 2 VGA/UXGA on 15-pin HD (F) connectors; 2 s-Video, 1Vpp (Y), 0.3Vpp/75Ω (C) on 4-pin connectors; 2 composite video 1Vpp/75Ω on BNC connectors; 2 sets of component video (Y, Pb/Cb, Pr/Cr) 1Vpp, 0.7Vpp, 0.7Vpp on RCA connectors. Each output is accompanied by the appropriate balanced stereo-audio channel: +4dBu/150Ω on detachable terminal blocks; 1 master stereo audio +4dBu/150Ω on a detachable terminal block, 1 UTP CAT 5 connector line OUT; 1 stereo speaker output 2x5W continuous into 4Ω. |
| MAX. OUTPUT LEVEL: | Video: VGA/UXGA: 2.85Vpp, YC: 2.8Vpp, CV: 3.8Vpp, Component video 2.7Vpp, CAT 5: 2Vpp; Audio: Group: 20dBu, Master: 15dBu. |
| BANDWIDTH (-3dB): | Video: VGA/UXGA: 300MHz, YC: 320MHz, CV: 420MHz, Component video: 380MHz, CAT 5: up to UXGA; Audio: Group: 46kHz, Speakers: 40kHz, Master: 33kHz. |
| DIFF. GAIN: | VGA/UXGA: 0.15%; YC: 0.03%; CV: 0.03%. |
| DIFF. PHASE: | VGA/UXGA: 0.09Deg.; YC: 0.03Deg.; CV: 0.03Deg.; CAT 5: 0.2Deg. |
| K-FACTOR: | <0.1%. |
| S/N RATIO: | Video: VGA/UXGA: 75dB, YC: 81dB, CV: 75dB, Component video: 76dB, CAT 5: 59dB, (unweighted); Audio: Group: 74dB, Speakers: 53dB (max pwr weighted), Master out: 72dB. |
| CROSSTALK (all hostile): | Video: VGA/UXGA: -45dB, YC: -48dB; CV: -41dB, Component video: -43dB; Audio: Group: <-76dB, Master: <-69dB @1kHz |
| WEIGHT: | 3.8 kg (8.4 lbs.) approx. |
| ACCESSORIES: | Power cord, Null modem adapter, Windows®-based Kramer control software, Windows®-based Ethernet Configuration Manager and Virtual Serial Port Manager, Infra-red remote control transmitter |
| AUDIO 2nd HARMONIC: | Group: 0.065%; Speakers: 1.6% (max pwr); Master: 0.155% |
| CONTROLS: | Channel selector for video and audio, for VGA/UXGA, YC and CV; master audio output selector, master audio level, mic audio level, talkover, lock, RS-232, RS-485, Ethernet, IR. |
| POWER SOURCE: | 100-240V AC, 50/60Hz, 37VA. |
| DIMENSIONS: | 19" x 7" x 2U W, D, H, rack mountable. |
| WEIGHT: | 3.8kg (8.4lbs) approx. |
| ACCESSORIES: | Power cord, null-modem adapter, Windows®-based Kramer control software, Windows®-based Ethernet Configuration Manager and Virtual Serial Port Manager, infrared remote control transmitter. |
| Skrót właściwości | Przełącznik wieloformatowy sygnałów composite video, s-Video, YUV i VGA. Pasmo przenoszenia do 430 MHz (-3 dB) |
|---|
