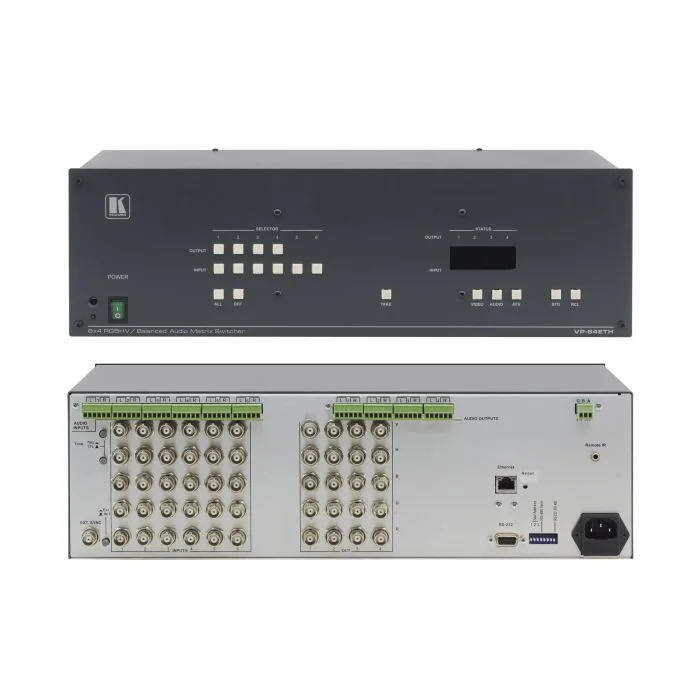

Przełącznik Kramer VP-64ETH
Przełącznik 6x4 sygnałów RGBHV i symetrycznego stereo.
Pasmo przenoszenia 300 MHz (-3 dB)
SKU
VP-64ETH
The VP-64ETH, VP-66ETH, VP-82ETH, VP-84ETH, and VP-88ETH are high performance matrix switchers for RGBHV and balanced stereo audio signals. They can route any or all inputs to any or all outputs simultaneously.
-
High Bandwidth-300MHz (- 3dB) fully loaded.
-
HDTV Compatible.
-
Control-Front panel, RS-232 (K-Router™Windows® - based software is included), RS-485, Ethernet, & IR Remote (included).
-
Take Button-Execute multiple switches all at once.
-
Memory Locations-Store multiple switchesas presets to be recalled and executed whenneeded
-
Audio Breakaway Switching.
-
Standard 19” Rack Mount Size-3U.
Zastosowania
Profesjonalne studia audio wideo.
Aplikacje produkcyjne i prezentacyjne.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 6x3 video (RGB): 0.7 Vpp/75ohm, on BNCs; 1 Sync/Video Genlock with sync select switch 1Vpp/75ohm on a BNC; 6x2 Hs & Vs, TTL level/510 ohm or Video 0.7 Vpp/75ohm, on BNCs; 6 balanced stereo audio, +4dBm/33kohm, on detachable terminal blocks |
| OUTPUTS: | 4x3 video (RGB): 0.7 Vpp/75ohm, on BNCs; 4x2 Hs & Vs, TTL level/510 ohm or Video 0.7 Vpp/75ohm, on BNCs; 4 balanced stereo audio, +4dBm/33kohm, on detachable terminal blocks |
| MAX. OUTPUT LEVEL: | VIDEO: 0.7 Vpp (RGB) AUDIO: +4dBm/150ohm (24Vpp max.) |
| BANDWIDTH (-3dB): | VIDEO: 300MHz, Fully Loaded AUDIO: 100kHz |
| S/N RATIO: | VIDEO: 74dB AUDIO: 84dB unweighted, (1Vpp) |
| CROSSTALK (all hostile): | VIDEO: <-50dB @ 5MHz |
| CONTROLS: | Manual, RS-232, RS-485 or ETHERNET |
| INDICATORS: | Multi-character display on the front panel. |
| POWER SOURCE: | 230VAC, 50/60 Hz, (115VAC, U.S.A.) |
| DIMENSIONS: | 19" x 7" x 3U |
| WEIGHT: | 5.5kg (12.2lbs) approx. |
| ACCESSORIES: | Power cord, Windows®-based Configuration Manager XPort software and Com Port Redirector, Windows®-based Kramer control software, Null-modem adaptor |
| Skrót właściwości | Przełącznik 6x4 sygnałów RGBHV i symetrycznego stereo. Pasmo przenoszenia 300 MHz (-3 dB) |
|---|
