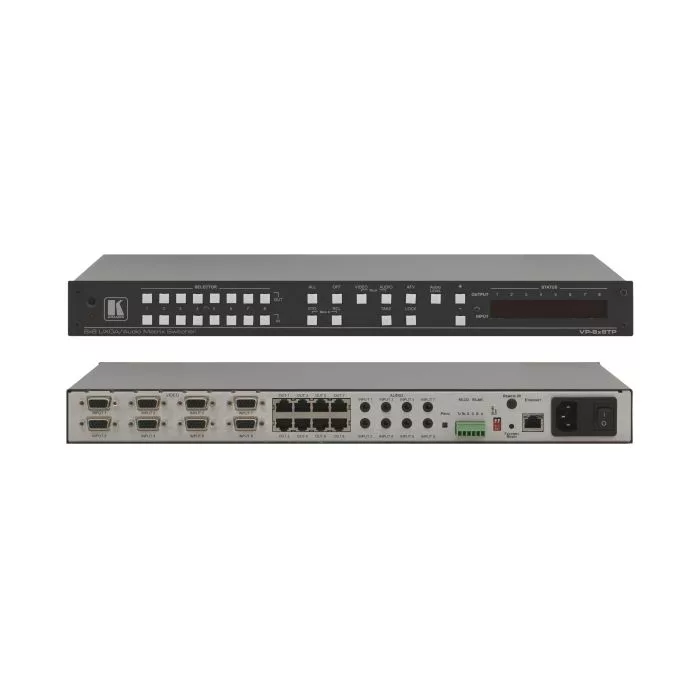

Przełącznik matrycowy Kramer VP-8x8TP
Przełącznik 8x8 sygnałów grafiki komputerowej i audio przesyłający je skrętką.
SKU
VP-8x8TP

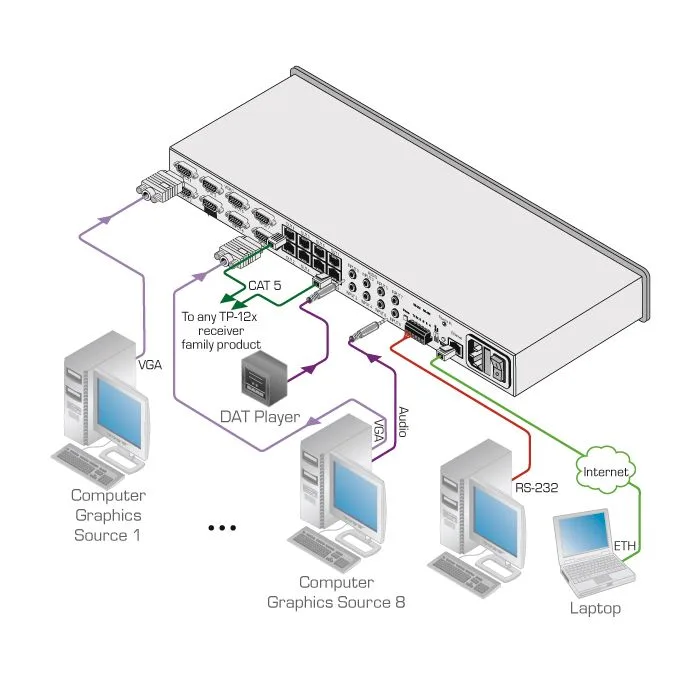

The VP-8x8TP is a high-performance matrix switcher for computer graphics video and stereo audio signals. The unit routes any or all inputs to any or all twisted pair outputs. A compatible twisted pair receiver converts each output signal back to the original input formats.
- High Resolution — Up to UXGA/1080p.
- HDTV Compatible.
- Active Input Indication™ Reporting — Each input button on the front panel automatically lights when the unit detects a video signal on that input. When an input is selected for switching, the button changes to a different color to indicate it is the active input.
- Delayed Switching™ — Up to a 3.5s (user selectable) delay for clean switching.
- Kr–isp® Advanced Sync Processing — Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform. Kr–isp® advanced sync processing can be enabled or disabled.
- Power Connect™ Feature — A single connection to the transmitter (only) powers both units when the devices are within 150ft (50m) of each other.
- Configurable EDID — For each input, via RS–232.
- Take Button — Executes multiple switches all at once.
- Memory Locations — Stores multiple switches as presets to be recalled and executed when needed.
- Audio Breakaway Switching.
- System Range — Over 100m (330ft) transmission range between the switcher and the TP receiver.
- Audio Level Controls — For adjusting the signal level of each input.
- Front Panel Lockout.
- Flexible Control Options — Front panel, RS–232 and RS–485 (using Kramer Protocols 2000 and 3000), IR remote and optional extension cable, Ethernet with built in Web server.
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 1U. Rack "ears" included.
Standardy | VGA, SVGA, XGA, SXGA, UXGA, HDTV |
---|---|
Wejścia | VGA |
Wyjścia | Cat 5 |
Audio | Balanced |
Sterowanie | Ethernet, RS-232, RS-485, IR |
Seria | 19" 1U |
Skrót właściwości | Przełącznik 8x8 sygnałów grafiki komputerowej i audio przesyłający je skrętką. |
