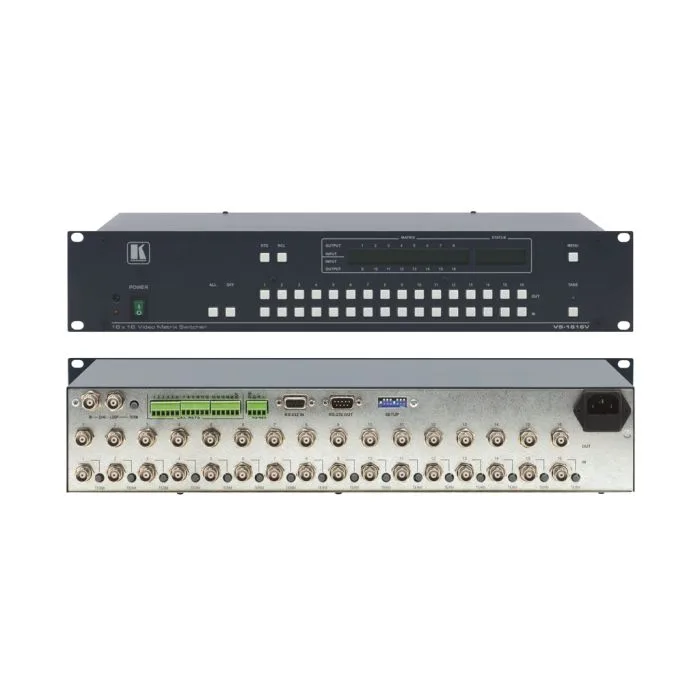

Przełącznik Kramer VS-1616V
Przełącznik 16x16 sygnałów composite video, 8x8 sygnałów s-Video, 5x5 sygnałów YUV, 4x4 sygnałów RGBS.
Pasmo przenoszenia - 230 MHz (-3 dB)
SKU
VS-1616V
! Ograniczona dostępność. Urządzenie zostanie wycofane po wyczerpaniu stanów magazynowych we wszystkich oddziałach Kramer. Prosimy o kontakt, przed złożeniem zamówienia.
The VS-1616V is a high performance matrix switcher for composite video signals. It can be configured as an 8x8 s-Video (Y/C) switcher, a 5x5 component (YUV) switcher, or a 4x4 RGBS Switcher.
-
Bandwidth-230MHz (- 3dB) fully loaded.
-
HDTV Ready.
-
Multi-Mode-Configure as either a 16x16composite, an 8x8 s-Video (Y/C), a 5x5component (YUV), or 4x4 RGBS switcher.
-
Looping Inputs and Sync.
-
Selectable Input and Sync Signal Termination.
-
Control-Front panel, RS-232 (K-Router™Windows® - based software is included), & RS-485, contact closure, & IR remote (Included).
-
Take Button-Execute multiple switches all atonce.
-
Memory Locations-Store multiple switchesas presets to be recalled and executed whenneeded.
-
Size-19” (2U)
Zastosowania
Any large professional display system requiring video signal routing.
Broadcast, presentation and production facilities.
Rental and staging applications.
Monitoring in large duplication systems.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 16 composite video, or 8 s-Video (YC), or4 RGBS, or 5 YUV, 1Vpp/75 Ω, on BNCs. |
| MAX. OUTPUT LEVEL: | 2.18 Vpp / 75 Ω |
| OUTPUTS: | 16 composite video, or 8 s-Video (YC), or4 RGBS, or 5 YUV, 1Vpp/75 Ω, on BNCs. |
| BANDWIDTH (-3dB): | 230 MHz |
| DIFF. GAIN: | 0.01% |
| DIFF. PHASE: | 0.01 deg. |
| K-FACTOR: | <0.05% |
| S/N RATIO: | 70.2 dB |
| CONTROLS: | Manual via front panel switches, RS-232 or RS-485. |
| CROSSTALK: | -52 dB @ 5 MHz, all hostile |
| INDICATORS: | 2 multiple−character front panel displays. |
| COUPLING: | DC |
| POWER SOURCE: | 115/230 VAC, 50/60 Hz, 23VA. |
| DIMENSIONS: | 19-inch (W), 7-inch (D) 2U (H) rack mountable. |
| WEIGHT: | 3.5 Kg (7.8 Lbs.) Approx. |
| Skrót właściwości | Przełącznik 16x16 sygnałów composite video, 8x8 sygnałów s-Video, 5x5 sygnałów YUV, 4x4 sygnałów RGBS. Pasmo przenoszenia - 230 MHz (-3 dB) |
|---|
