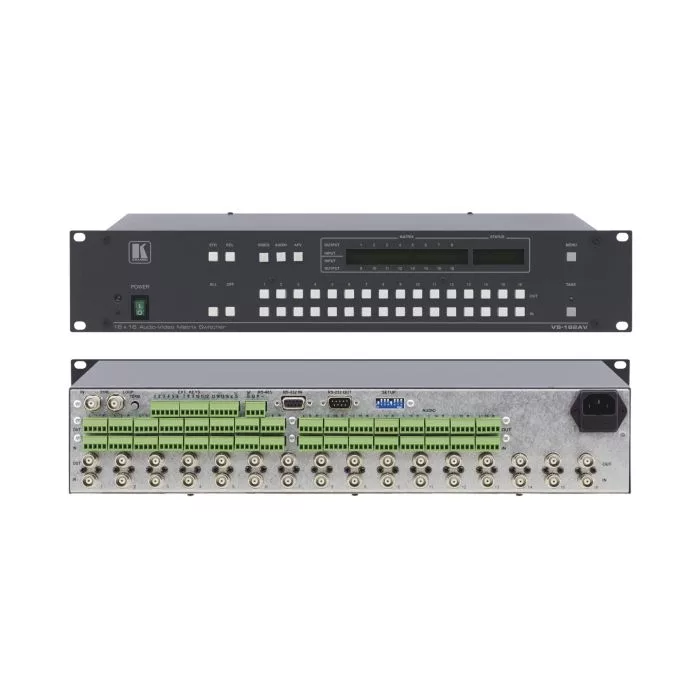

Przełącznik matrycowy Kramer VS-162AV
Przełącznik 16x16 sygnałów composite video i symetrycznego stereo.
SKU
VS-162AV
The VS-162AV is a high performance matrix switcher for composite video and balanced stereo audio signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.
- Bandwidth — 90MHz ( — 3dB) fully loaded.
- Input & Outputs — Video on BNC; audio on detatchable terminal block connectors (VS–162AV) or on RCA connectors (VS–162AVRCA).
- Control — Front panel, RS–232 (K–Router™Windows® — based software is included), & RS–485, contact closure, & IR remote (included).
- Take Button — Execute multiple switches all atonce.
- Memory Locations — Store multiple switchesas presets to be recalled and executed whenneeded.
- Audio Breakaway Switching.
- Vertical Interval Switching.
- Switching Synchronization — Synchronizeeither to external reference or the incomingvideo.
- Looping Sync Input.
- Selectable Sync Signal Termination.
- Standard 19” Rack Mount Size — 2U.
| Standardy | Composite CV |
|---|---|
| Wejścia | Composite CV |
| Wyjścia | Composite CV |
| Audio | Balanced |
| Seria | 19" 2U |
| Skrót właściwości | Przełącznik 16x16 sygnałów composite video i symetrycznego stereo. |
