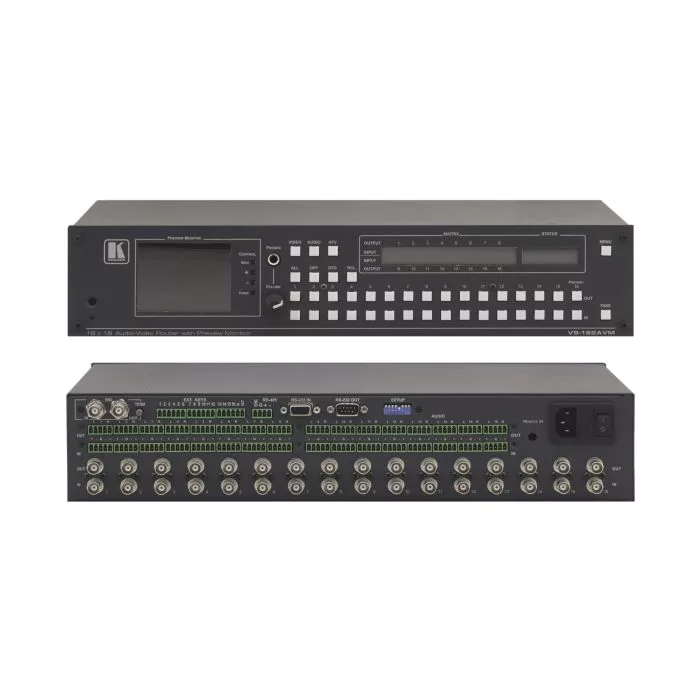

Przełącznik matrycowy Kramer VS-162AVM
Przełącznik 16x16 sygnałów composite video i symetrycznego stereo.
SKU
VS-162AVM
The VS-162AVM is a high-performance matrix switcher for composite video and balanced stereo audio signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.
- Bandwidth — 90MHz (–3dB) fully loaded.
- Input & Outputs — Video on BNC connectors, audio on detachable terminal block connectors.
- Looping Sync Input.
- Output Monitoring — A built–in 3.5–inch LCD display and audio headphone output with volume control conveniently monitor the video and audio of any channel before and after switching.
- Take Button — Executes multiple switches all at once.
- Memory Locations — Stores multiple switches as presets to be recalled and executed when needed.
- Audio Breakaway Switching.
- Flexible Control Options — Front panel, RS–232 (K–Router™ Windows®–based Kramer software is included), RS–485, contact closure, & IR remote (included).
- Vertical Interval Switching — Synchronizes either to external reference or the incoming video in compliance with SMPTE RP–168.
- Selectable Sync Signal Termination.
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 2U. Rack "ears" included.
Standardy | Composite CV |
---|---|
Wejścia | Composite CV |
Wyjścia | Composite CV |
Sterowanie | Ethernet, RS-232, RS-485 |
Seria | 19" 2U |
Skrót właściwości | Przełącznik 16x16 sygnałów composite video i symetrycznego stereo. |
