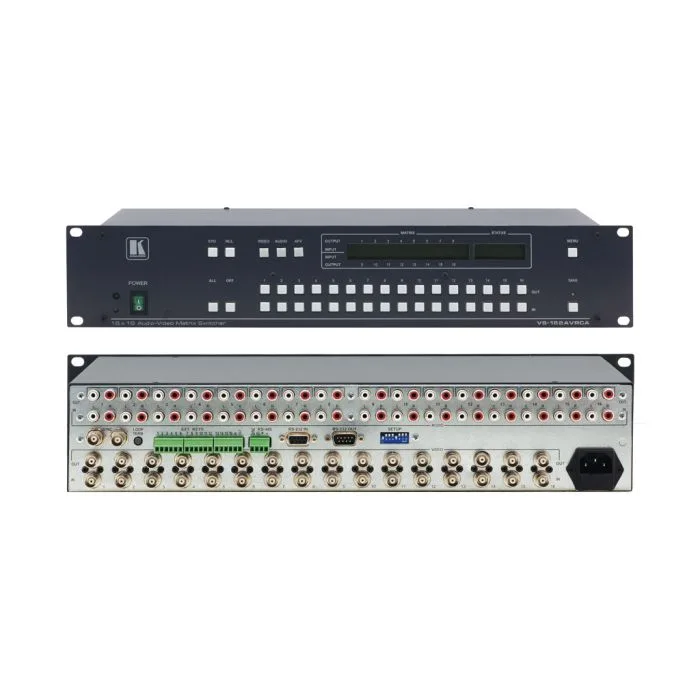

Przełącznik Kramer VS-162AVRCA
Przełącznik 16x16 sygnałów composite video i niesymetrycznego stereo.
Pasmo przenoszenia - 90 MHz (-3 dB)
SKU
VS-162AVRCA
The VS-162AVRCA is a high performance matrix switcher for composite video and unbalanced stereo audio signals. Switching during the vertical interval insures glitch free switching with genlocked sources.
- Bandwidth - 90MHz (-3dB) fully loaded.
- Input/Output - Video on BNC; audio on detatchable terminal block connectors (VS-162AV) or on RCA connectors (VS-162AVRCA).
- Flexible Control Options - Front panel, RS-232 (included K-Router Windows ® Software), & RS-485, contact closure, & IR remote (included).
- Convenient Take Button - Execute multiple switches all at once.
- Multiple Memory Locations - Store multiple switches as presets (salvos) to be recalled and executed when needed.
- Audio Breakaway Switching
- Vertical Interval Switching
- Switching Synchronization - Synchronize either to external reference or the incoming video.
- Looping Sync Input
- Selectable Sync Signal Termination
- Standard 19” Rack Mount Size - 2RU
Zastosowania
Any professional system requiring outstanding value in a 16x16 matrix
Production and duplications facilities, rental and staging
Security, CCTV, and home theater systems
Przykładowa aplikacja
Specyfikacja
| INPUTS: | VIDEO: 16 composite video 1 Vpp / 75 Ω on BNC connectors AUDIO: 16 unbalanced audio on RCA connectors |
| OUTPUTS: | VIDEO: 16 composite video 1 Vpp / 75 Ω on BNC connectors AUDIO: 16 unbalanced audio on RCA connectors |
| MAX. OUTPUT LEVEL: | VIDEO: 2.2 Vpp AUDIO: 20dBm |
| BANDWIDTH (-3dB): | VIDEO: 90 MHz -3dB AUDIO: >100 kHz. |
| DIFF. GAIN: | <0.18% |
| DIFF. PHASE: | 0.4 Deg. |
| K-FACTOR: | <0.05% |
| S/N RATIO: | VIDEO: 76.1dB AUDIO: 82.2dB, unweighted, RL = 10k Ω |
| CROSSTALK (all hostile): | VIDEO: <-46dB @ 5MHz AUDIO: -80dB @ 1kHz. |
| COUPLING: | VIDEO: DC AUDIO: AC |
| AUDIO THD + NOISE: | 0.04% @ 1kHz. |
| AUDIO 2nd HARMONIC: | 0.002% |
| CONTROLS: | 41 selector switches; RS-232, RS-485, IR remote, dry keyboard extension |
| INDICATORS: | 2 multiple−character front panel displays. |
| POWER SOURCE: | 230 VAC, 50/60 Hz, (115VAC, U.S.A.) 14VA |
| DIMENSIONS: | 19-inch (W), 7-inch (D) 2U (H) rack-mountable |
| WEIGHT: | 3.7 kg (8.2 lbs.) approx |
| ACCESSORIES: | Power cord, Null modem adapter, Windows®-based Kramer control software |
| Skrót właściwości | Przełącznik 16x16 sygnałów composite video i niesymetrycznego stereo. Pasmo przenoszenia - 90 MHz (-3 dB) |
|---|
