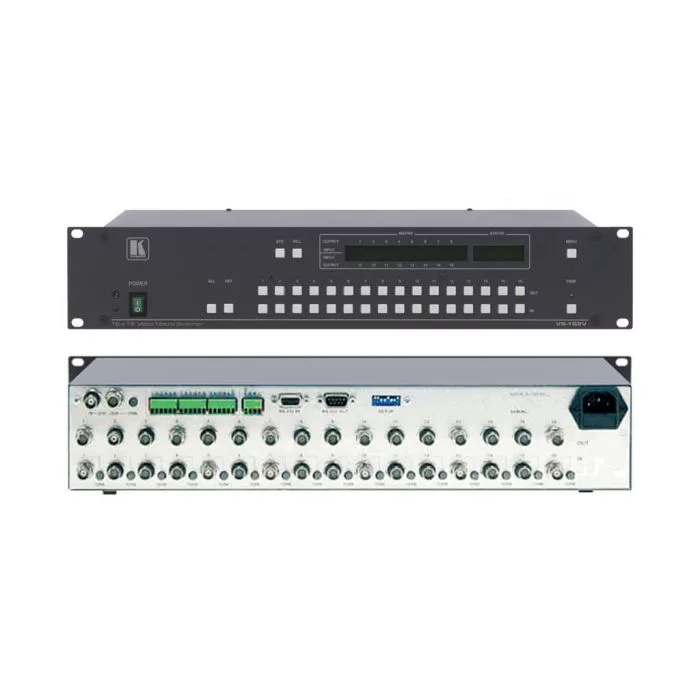

Przełącznik matrycowy Kramer VS-162V
Przełącznik 16x16 sygnałów composite video, 8x8 sygnałów s-Video, 5x5 sygnałów YUV, 4x4 sygnałów RGBS.
SKU
VS-162V
The VS-162V is a high performance matrix switcher for composite video signals. It can be configured as an 8x8 s-Video (Y/C) switcher, a 5x5 component (YUV) switcher, or a 4x4 RGBS Switcher.
- Bandwidth — 100MHz ( — 3dB) fully loaded.
- HDTV Ready.
- Multi–Mode — Configure as either a 16x16composite, an 8x8 s–Video (Y/C), a 5x5component (YUV), or 4x4 RGBS switcher.
- Looping Inputs and Sync.
- Selectable Input and Sync Signal Termination.
- Control — Front panel, RS–232 (K–Router™Windows® — based software is included), & RS–485, contact closure, & IR remote (Included).
- Take Button — Execute multiple switches all atonce.
- Memory Locations — Store multiple switchesas presets to be recalled and executed whenneeded.
Standardy | HDTV, Composite CV |
---|---|
Wejścia | Composite CV |
Wyjścia | Composite CV |
Sterowanie | RS-232, RS-485, IR |
Seria | 19" 2U |
Skrót właściwości | Przełącznik 16x16 sygnałów composite video, 8x8 sygnałów s-Video, 5x5 sygnałów YUV, 4x4 sygnałów RGBS. |
