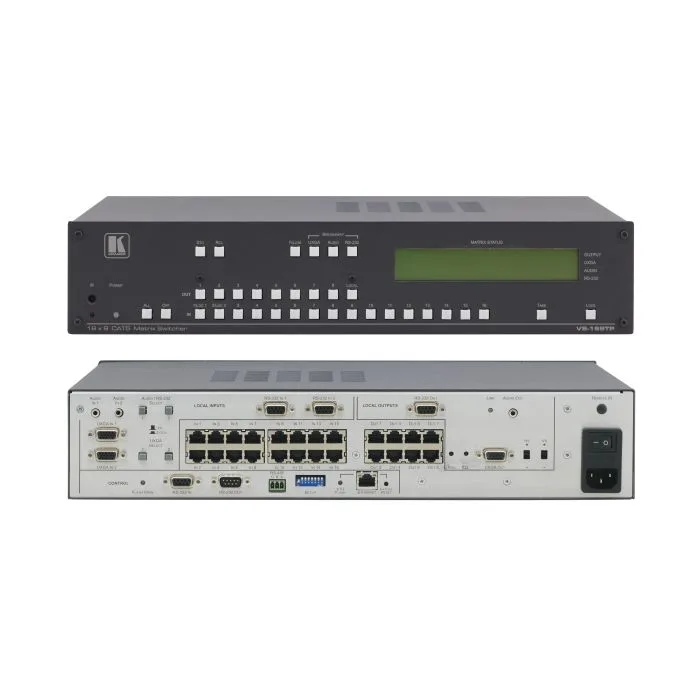

Przełącznik Kramer VS-169TP
Przełącznik 16x9 sygnałów analogowych przesyłanych skrętką, oraz grafiki komputerowej i audio.
Maksymalna rozdzielczość - 1920x1200
SKU
VS-169TP
The VS−169TP is a high−performance twisted pair matrix switcher for video signals up to WUXGA/1080p, analog stereo, S/PDIF audio and bidirectional RS−232 signals. The unit can route any input to any or all outputs simultaneously.
-
Inputs-16 remote CAT 5, 2 local built−in CAT 5, 2 unbalanced stereo audio, 2 UXGA, 2 RS−232. Inputs 1 & 2 can input either a twisted pair or local input signal.
-
Outputs-8 remote CAT 5; 1 local output of 15−pin HD, stereo audio & RS−232.
-
Wide Compatibility-Compatible with most Kramer analog twisted pair transmitters/receivers.
-
HDTV Compatible.
-
Follow or Breakaway Switching-For all local video, audio, RS−232 signals.
-
Broadcast Quality Stereo Audio-48kHz/24−bit analog/digital conversion.
-
Indicators-4−line LCD display for separate route indication of video, audio, or RS−232.
-
Flexible Control Options-Front panel, RS−232 (K−Router™ Windows®−based software is included), RS−485, Ethernet & IR remote (included).
-
Memory Locations-Stores multiple switches as presets to be recalled and executed when needed.
-
Worldwide Power Supply-100−240V AC.
-
Standard 19” Rack Mount Size-2U. Rack "ears" included.
Zastosowania
Presentation and multimedia applications.
Long-range graphics distribution and control for schools, hospitals, security, and stores.
Przykładowa aplikacja
Specyfikacja
SIGNAL INPUTS: | 16 CAT 5 remote transmitters on RJ−45 connectors; 2 local RGBHV UXGA on 15−pin HD connectors; 2 unbalanced stereo audio on 3.5mm mini jacks; 2 local RS−232 controllers on 9−pin D−sub connectors. |
SIGNAL OUTPUTS: | 8 CAT 5 remote receivers on RJ−45 connectors; 1 local RGBHV UXGA on a 15−pin HD connector; 1 unbalanced stereo audio on a 3.5mm mini jacks; 1 local RS−232 controllers on a 9−pin D−sub connector. |
CONTROL INPUTS/OUTPUTS: | 1 RS−232 input on a 9−pin D−sub connector; 1 RS−232 output on a 9−pin D−sub connector; 1 RS−485 input/output on a 3−pin detachable terminal block; 1 Ethernet input/output on a RJ−45 connector. |
RESOLUTION (VIDEO): | Up to WUXGA; HD compatible. |
SAMPLE RATE (AUDIO): | 24bit, 48kHz. |
BAUD RATE (RS-232): | Up to 19200. |
CONTROL (LOCAL VIDEO OUT): | EQ: 0 to +33dB @50MHz; Level: −7.5dB to +4.4dB; H & V polarity. |
S/N RATIO (AUDIO): | >80dB. |
THD+N (AUDIO): | < 0.03%. |
POWER CONSUMPTION: | 100−240V AC, 50/60Hz, 36VA. |
DIMENSIONS: | 19" x 7" x 2U W, D, H, rack mountable. |
WEIGHT: | 3.8kg (8.4lbs) approx. |
ACCESSORIES: | Power cord, Windows®−based control software, remote control transmitter, rack "ears". |
Skrót właściwości | Przełącznik 16x9 sygnałów analogowych przesyłanych skrętką, oraz grafiki komputerowej i audio. Maksymalna rozdzielczość - 1920x1200 |
---|
