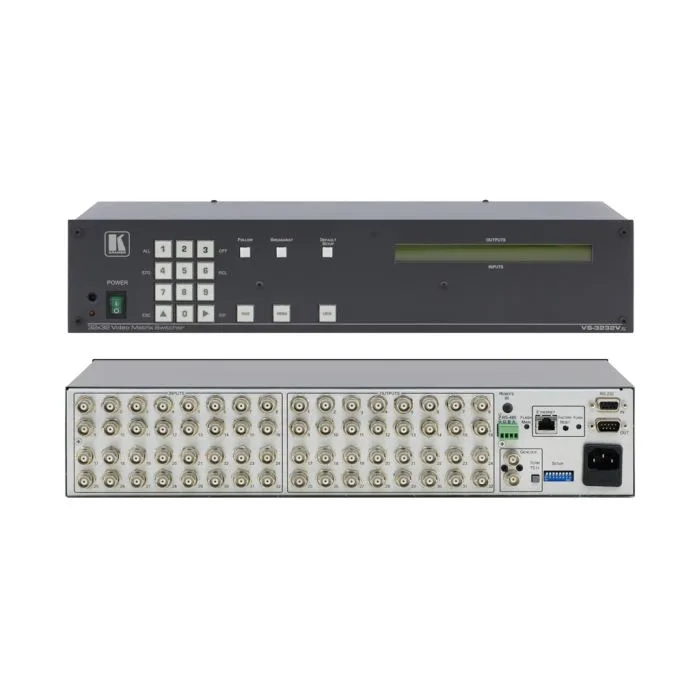

Przełącznik Kramer VS-3232Vxl
Przełącznik 32x32 sygnałów composite video o bardzo szerokim paśmie przenoszenia.
Pasmo przenoszenia - 500 MHz (-3 dB)
SKU
VS-3232Vxl
The VS-3232Vxl is a high-performance 32x32 matrix switcher for composite video signals. It can route any or all inputs to any or all outputs simultaneously.
-
High Bandwith-500MHz (-3dB) fully loaded.
-
Three SYNC Options for Genlock Switching-External sync input, sync from input #1, external system sync from another compatible switcher.
-
Multiple Memory Locations-Stores multiple setups as presets (salvos) for later recall and execution.
-
Take Button-Executes multiple switches all at once.
-
DC Coupling.
-
Flexible Control Options-Front panel, remote control via RS-232 (K-Router™ Windows®-based software is included), RS-485, Ethernet, and IR remote (included).
-
Expandable-Combines two or three units to create a 2-level (Y/C) or 3-level (YUV) matrix switcher.
-
Communication Protocols-Kramer 2000 and the Sierra ASCII.
-
Worldwide Power Supply-100-240V AC.
-
Standard 19” Rack Mount Size-2U. Rack “ears” included.
Zastosowania
Professional display systems requiring video signal routing
Broadcast, presentation and production facilities, as well as monitoring in large duplication systems
Rental/staging applications
Przykładowa aplikacja
Specyfikacja
| inputs: | 32 composite video, 1Vpp / 75Ωon BNC connectors |
| outputs: | 32 composite video, 1Vpp / 75ΩΩon BNC connectors |
| VIDEO BANDWIDTH: | 500MHz, -3dB / >50MHz, 0.1dB |
| ALL HOSTILE CROSSTALK: | <-49dB @5MHz |
| VIDEO S/N: | 63dB unweighted / 70dB @5MHz weighted |
| DIFF. GAIN: | <0.05%, 0.8Vpp |
| DIFF. PHASE: | <0.03 Deg. |
| NON-LINEARITY: | <0.2%. |
| K-FACTOR: | <0.05%. |
| COUPLING: | DC |
| CONTROL: | 19 pushbutton switches; RS-232, RS-485, IR remote, Ethernet. |
| INDICATORS: | Multi-character LCD display on the front panel. |
| SWITCHING: | 3 modes for vertical interval switching and immediate switching. |
| POWER SOURCE: | 230V AC, 50/60Hz, (115V AC, U.S.A.) 10VA. |
| DIMENSIONS: | 19" x 7" x 1U W, D, H, rack mountable. |
| WEIGHT: | 3.5kg (7.8lbs) approx. |
| ACCESSORIES: | Power cord, null-modem adapter, Windows®-based Kramer control software, Windows®-based Ethernet Configuration Manager and Virtual Serial Port Manager, Infrared remote control transmitter. |
| SIZE: | 19' (2U) |
| Skrót właściwości | Przełącznik 32x32 sygnałów composite video o bardzo szerokim paśmie przenoszenia. Pasmo przenoszenia - 500 MHz (-3 dB) |
|---|
