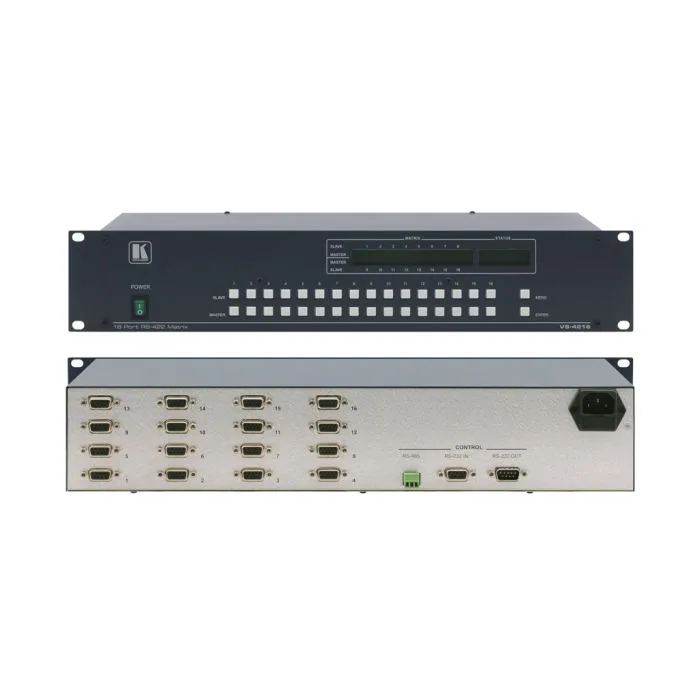

Przełącznik Kramer VS-4216
Przełącznik dwukierunkowy sygnałów RS-422 z 16 portami.
Zgodność ze standardami - TIA/EIA−422−B
SKU
VS-4216
The VS-4216 is a high performance bi-directional matrix switcher for RS-422 control signals. It can connect multiple ports to create from one to eight bi-directional communications groups.
-
Control-Front panel, RS-232 (K-Router™Windows® - based software is included), & RS-485.
-
Memory Locations-Store multiple switchesas presets to be recalled and executed whenneeded.
-
Standard 19” Rack Mount Size-2U.
Zastosowania
Remote control of video and audio production studios.
Live broadcast remote control.
CCTV and other remote control applications.
Przykładowa aplikacja
Specyfikacja
| INPUTS/OUTPUTS: | 16 in/out ports on DB-9 female connectors, fully compliant to TIA/EIA-422-B standard. RS-232 control via DB-9 female connector (RS-232 out on DB-9 male connector), RS-485 on terminal block assembly. |
| CONTROLS: | Manualwith pushbuttons on front panel, RS-485 and RS-232 PC interface. |
| INDICATORS: | Multi−character displays on the front panel. |
| DIMENSIONS: | 19-inch (W), 7-inch (D) 1U (H) rack mountable. |
| POWER SOURCE: | 230VAC, 50/60 Hz, (115V U.S.A.) 15 VA. |
| WEIGHT: | 3.5 kg (7.8 lbs.) approx. |
| ACCESSORIES: | Power cord, Windows 95/98 control software, Null-modem adapter. |
| Skrót właściwości | Przełącznik dwukierunkowy sygnałów RS-422 z 16 portami. Zgodność ze standardami - TIA/EIA−422−B |
|---|
