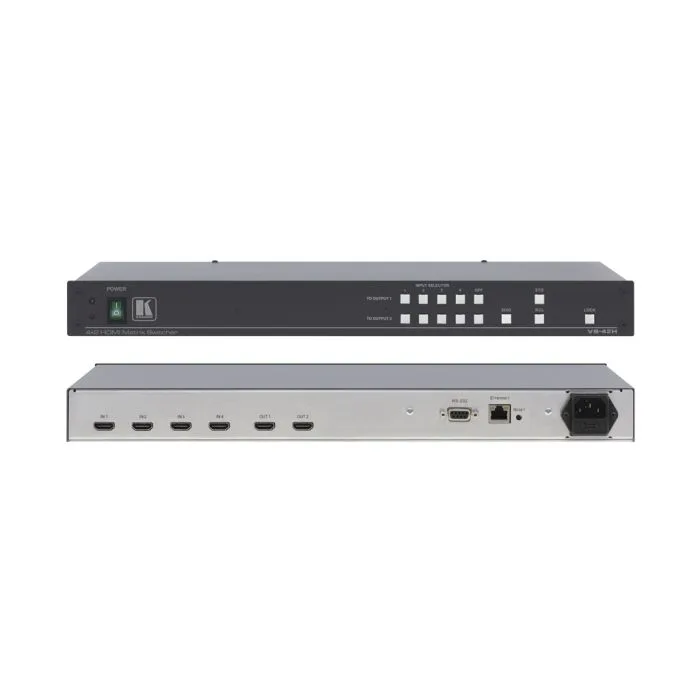

Przełącznik Kramer VS-42H
Przełącznik 4x2 sygnałów HDMI.
Max. Data Rate: 1.65Gbps
SKU
VS-42H
! Ograniczona dostępność. Urządzenie zostanie wycofane po wyczerpaniu stanów magazynowych we wszystkich oddziałach Kramer.
The VS-42H is a high quality 4x2 matrix switcher for HDMI signals. It reclocks and equalizes the signal and can route any or all inputs to any or all outputs simultaneously.
-
Maximum Data Rate-1.65Gbps
-
Kramer re-Klocking & Equalization Technology-Rebuilds the digital signal to travel longer distances.
-
HDCP Compliant.
-
HDTV Compatible.
-
Fast Switching Technology-Reduces switching delay between HDMI sources.
-
Enhanced EDID (Extended Display Identification Data)-Can capture an EDID setting from a device connected to the outputand store it in a non-volatile memory. The user can recall this setting or a factory default EDID.
-
Flexible Control Options-Front panel, IR Remote, RS-232 (K Router™ Windows®-based software is included) & Ethernet(Windows®-based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
-
Includes two OFF buttons to disconnect each output.
-
Front Panel Lockout.
-
Worldwide Power Supply-90-240V AC.
-
Standard 19" Rack Mount Size-1U. Rack “ears” included.
Zastosowania
Conference room presentations and advertising applications.
Rental and staging.
Przykładowa aplikacja
Specyfikacja
INPUTS: | 4 HDMI Connectors |
OUTPUTS: | 2 HDMI Connectors |
BANDWIDTH: | Supports up to 1.65Gbps bandwidth per graphic channel |
STANDARDS: | COMPLIANCE WITH HDMI STANDARD: Supports HDMI 1.1 and HDCP |
RESOLUTION: | Up to UXGA; 1080p |
POWER SOURCE: | 100-240V AC; 50/60Hz, 10VA |
CONTROLS: | Front panel buttons, Infra-red remote control transmitter, RS-232, Ethernet |
DIMENSIONS: | 19-inch (W), 7-inch (D), 1U (H) |
WEIGHT: | 2.5 kg. (5.5 lbs.) approx. |
ACCESSORIES: | Power cord, IR transmitter |
OPTIONS: | Kramer HDMI cables. For best results, use Kramer cables such as the C-HDMI/HDMI series, the C-HDMI-DVI series and/or our HDMI over fiber optics C-FOHM/FOHM series. |
Skrót właściwości | Przełącznik 4x2 sygnałów HDMI. Max. Data Rate: 1.65Gbps |
---|
