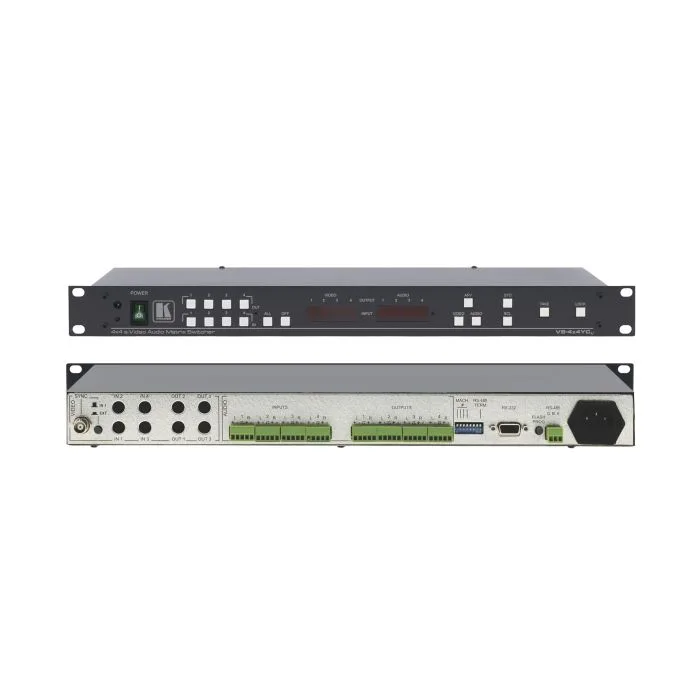

Przełącznik Kramer VS-4x4YCxl
Przełącznik 4x4 sygnałów s-Video i symetrycznego audio.
Pasmo przenoszenia (Y) - 75 MHz (-3 dB)
SKU
VS-4x4YCxl
The VS-4x4YCxl is a high performance matrix switcher for s-Video (Y/C) and balanced stereo audio signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.
- Bandwidth (Y) - 75MHz (- 3dB) fully loaded.
- Control - Front panel, RS-232 (included K-Router™Windows® - based software is included), &RS-485, IR Remote (included).
- Front Panel Control Lockout.
- Take Button - Execute multiple switches all atonce.
- Memory Locations - Store multiple switchesas presets (salvos) to be recalled and executedwhen needed.
- Audio Gain Level Controls - Input and outputvia RS-232.
- Audio Breakaway Switching.
- Vertical Interval Switching.
- Switching Synchronization - Synchronizeeither to external reference or the incomingvideo.
- Selectable Sync Signal Termination.
- Worldwide Power Supply - 100-240V AC.
- Standard 19" Rack Mount Size - 1U.
Zastosowania
Professional video display and monitoring systems requiring true 4x4 matrix operation.
Multimedia and presentation source and acceptor selection.
Przykładowa aplikacja
Specyfikacja
INPUTS: | 4 s-Video, 1 Vpp/75Ω (Y), 0.3Vpp/75Ω (C) on 4 connectors 4 balanced stereo audio, +4dBm/25kΩ on detachable terminal blocks |
OUTPUTS: | 4 s-Video, 1 Vpp/75Ω (Y), 0.3Vpp/75Ω (C) on 4 connectors 4 balanced stereo audio, +4dBm/47Ω on detachable terminal blocks |
MAX. OUTPUT LEVEL: | VIDEO: 2.5Vpp | AUDIO: +19dBm |
BANDWIDTH (-3dB): | VIDEO: 75MHz, Fully Loaded | AUDIO: 28kHz |
DIFF. GAIN: | <0.02% |
DIFF. PHASE: | <0.02 Deg |
K-FACTOR: | <0.05% |
S/N RATIO: | VIDEO: 82dB | AUDIO: 74dB |
CROSSTALK (all hostile): | VIDEO: -61dB @ 5MHz | AUDIO: -70dB @ 20kHz |
COUPLING: | VIDEO: DC | AUDIO: DC at input, AC at output |
AUDIO THD + NOISE: | 0.081% |
AUDIO 2nd HARMONIC: | 0.044% |
CONTROLS: | Audio gain level control by K Router software, –91dB to +26dB |
INDICATORS: | 2 4-character front panel displays. |
POWER SOURCE: | 100 240 VAC, 50/60 Hz; 90mA switching power supply |
DIMENSIONS: | 19-inch (W), 7-inch (D) 1U (H) rack-mountable |
WEIGHT: | 2.7 kg (6 lbs.) approx. |
ACCESSORIES: | Power cord, Null modem adapter, Windows® based Kramer control software, Infra-red remote control transmitter |
