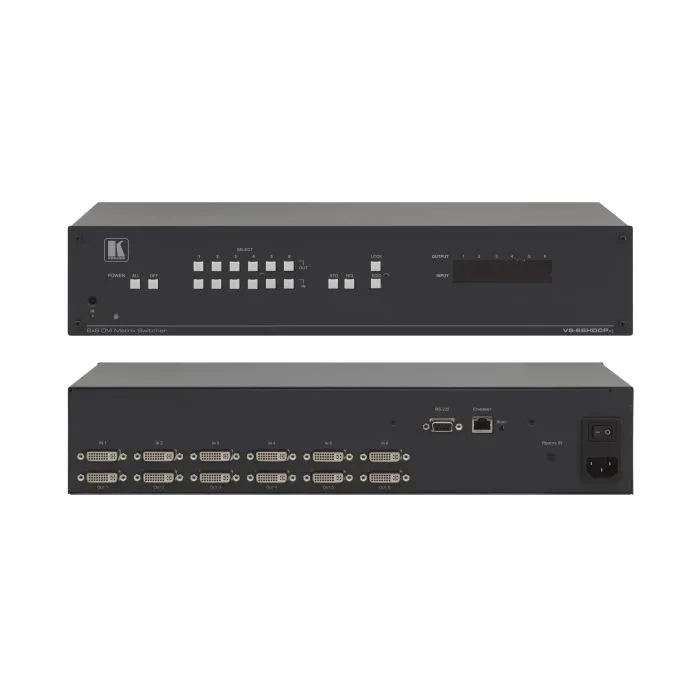

Przełącznik Kramer VS-66HDCPxl
Przełącznik 6x6 sygnałów DVI i HDMI.
Max. Data Rate: 6.75Gbps (2.25Gbps na kanał).
SKU
VS-66HDCPxl
The VS−66HDCPxl is a high−performance matrix switcher for DVI and HDMI signals on a DVI−D connector. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.
-
Max. Data Rate-6.75Gbps (2.25Gbps per graphic channel).
-
HDTV Compatible.
-
HDCP Compliant.
-
HDMI Support-Deep Color, x.v.Color™, 3D Pass−Through, HDMI Compressed Audio Channels.
-
Input/Output-DVI−D signals (on DVI−I connectors).
-
Kramer Equalization & re-Klocking™ Technology-Rebuilds the digital signal integrity to travel longer distances.
-
I-EDIDPro™ Kramer Intelligent EDID Processing™-Intelligent EDID handling & processing algorithm ensures Plug and Play operation for DVI systems.
-
Fast Switching Technology-Reduces switching delay between DVI/HDMI sources.
-
Flexible Control Options-Front panel, IR Remote, RS−232 (K−Router™ Windows®−based software is included), Ethernet (Windows®−based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
-
Output Disconnect-Each output.
-
Front Panel Lockout.
-
Memory Locations-Stores multiple switches as presets to be recalled and executed when needed.
-
Worldwide Power Supply-100−240V AC.
-
Standard 19-inch Rack Mount Size-2U. Rack “ears” included.
Zastosowania
Conference room presentations.
Advertising.
Rental and staging.
Przykładowa aplikacja
Specyfikacja
INPUTS: | 6 DVI connectors. |
OUTPUTS: | 6 DVI connectors. |
BANDWIDTH: | 6.75Gbps (2.25Gbps per graphic channel). |
COMPLIANCE WITH STANDARDS: | Supports DVI and HDCP. |
MAX RESOLUTION: | Up to UXGA; 1080p. |
POWER CONSUMPTION: | 100−240VAC; 50/60Hz, 38VA. |
CONTROLS: | Front panel buttons, infrared remote control transmitter, RS−232, Ethernet. |
OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
STORAGE TEMPERATURE: | −40° to +70°C (−40° to 158°F). |
HUMIDITY: | 10% to 90%, RHL non−condensing. |
DIMENSIONS: | 19" x 9.3" x 2U W, D, H. |
WEIGHT: | 2.5kg (5.5lbs) approx. |
ACCESSORIES: | Power cord, IR transmitter, rack “ears”. |
OPTIONS: | External remote IR receiver cable. |
Skrót właściwości | Przełącznik 6x6 sygnałów DVI i HDMI. Max. Data Rate: 6.75Gbps (2.25Gbps na kanał). |
---|
