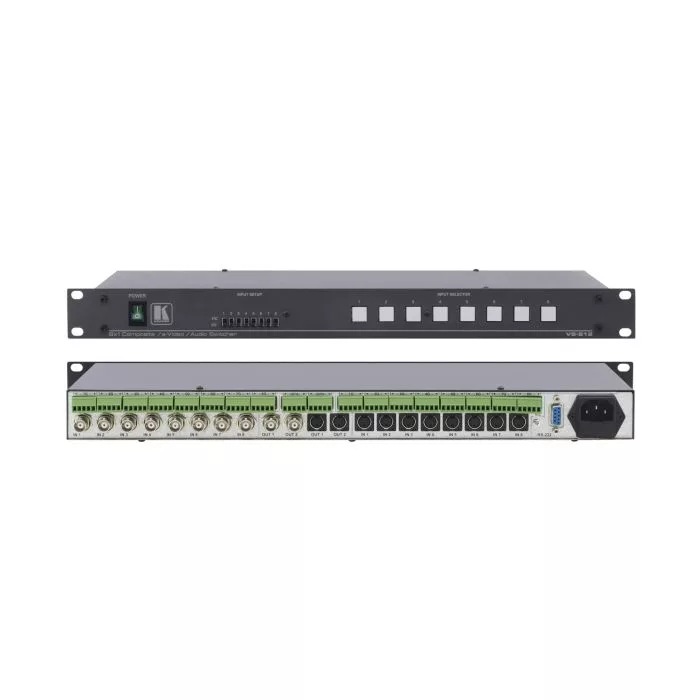

Przełącznik Kramer VS-812
Przełącznik 8x1 Composite–YC–Audio
SKU
VS-812
The VS-812 is a unique dual-format switcher and distribution amplifier for composite and s-Video (Y/C) and balanced stereo audio signals. Each of the eight inputs can be configured as either composite or s-Video (Y/C), which is converted to to produce composite and s-Video (Y/C) outputs simultaneously.
- High Bandwidth — 370MHz ( — 3dB) composite &190MHz ( — 3dB) s–Video.
- Dual Format — 8 x 1 switcher with each inputbeing composite or s–Video selectable through 8front panel switches.
- Built–in Bi–Directional Format Conversion — 2composite and 2 s–Video (Y/C) outputs are live atall times regardless of input configuration.
- Vertical Interval Switching.
- Control — Front panel RS–232 (K–Router™Windows® — based software is included), and 8front panel input configuration switches.
- Standard 19” Rack Mount Size — 1U.
| Standardy | Composite CV, s-Video Y/C |
|---|---|
| Wejścia | Composite CV, s-Video Y/C |
| Wyjścia | Composite CV, s-Video Y/C |
| Audio | Balanced |
| Sterowanie | RS-232 |
| Seria | 19" 1U |
| Skrót właściwości | Przełącznik 8x1 Composite–YC–Audio |
