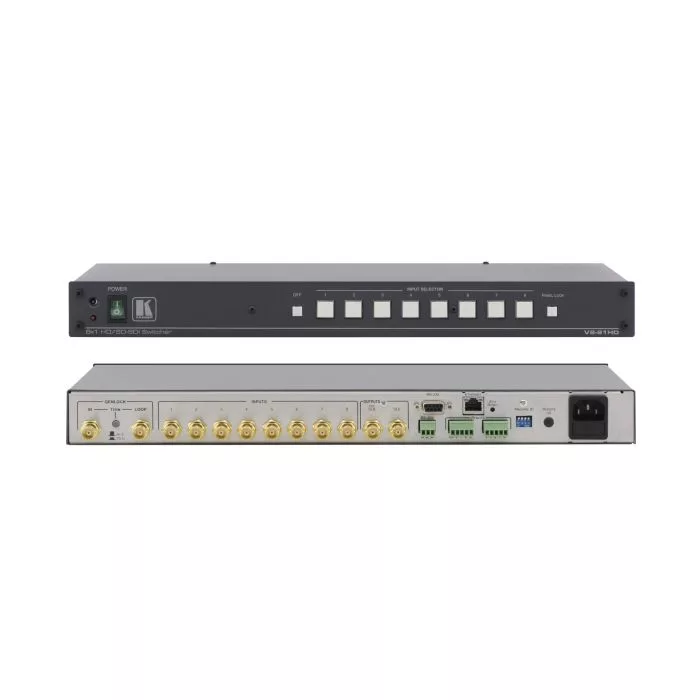

Przełącznik Kramer VS-81HD
Przełącznik 8x1:2 HD–SDI
SKU
VS-81HD
The VS-81HD is a high-performance switcher for HD-SDI video signals. It switches any one of 8 signals to two identical outputs.
- Max Data Rate — 1.65 Gbps.
- HDTV Compatible.
- Multi–Standard Operation — SDI (SMPTE 259M/344M) & HD–SDI (SMPTE 292M).
- Kramer re–Klocking™ & Equalization Technology — Rebuilds the digital signal to travel longer distances.
- Flexible Control Options — Front Panel, RS–232 (K–Router™ Windows®–based software is included), RS–485, Ethernet, contact closure & IR Remote (included).
- Active Input Indication™ Reporting — Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition (SDI) input signal and blue indicates a high definition (HD–SDI) input signal.
- Looping Analog Sync Input.
- Selectable Sync Signal Termination.
- Front Panel Control Lockout.
- Vertical Interval Switching — SMPTE RP–168.
- Output Disconnect.
- Worldwide Power — 100–240VAC.
- Standard 19” Rack Mount Size — 1U. Rack “ears” included.
Standardy | HDTV, HD-SDI |
---|---|
Wejścia | SDI |
Wyjścia | SDI |
Sterowanie | Ethernet, RS-232, RS-485, IR |
Seria | 19" 1U |
Skrót właściwości | Przełącznik 8x1:2 HD–SDI |
