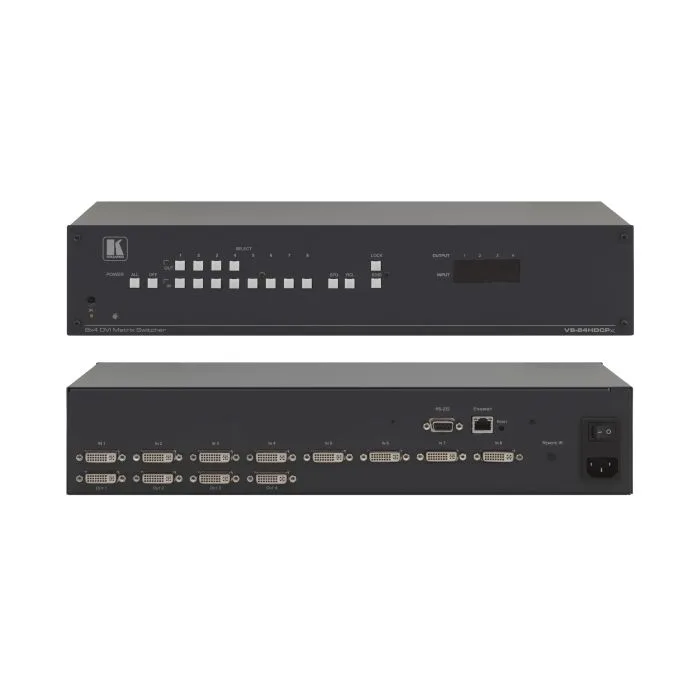

Przełącznik Kramer VS-84HDCPxl
Przełącznik 8x4 sygnałów DVI i HDMI przez konektory DVI-D.
Max. Data Rate: 2.25Gbps na kanał.
SKU
VS-84HDCPxl
The VS−84HDCPxl is a high−performance matrix switcher for DVI and HDMI signals on a DVI−D connector. It reclocks and equalizes the signal and can route any input to any or all outputs simultaneously.
-
Max. Data Rate-6.75Gbps (2.25Gbps per graphic channel).
-
HDCP Compatible.
-
HDTV Compatible.
-
HDMI Support-Deep Color, x.v.Color™, 3D Pass−Through, HDMI Compressed Audio Channels.
-
Fast Switching Technology-Reduces switching delay between DVI/HDMI sources.
-
EDID PassThru-Passes EDID signals from source to display.
-
Output Disconnect-For each output.
-
Front Panel Control Lockout.
-
Memory Locations-Stores multiple switches as presets to be recalled and executed when needed.
-
Flexible Control Options-Front panel, IR remote, RS−232 (K−Router™ Windows®−based software is included), Ethernet (Windows®−based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
-
Worldwide Power Supply-100−240V AC.
-
Standard 19” Rack Mount Size-2U. Rack "ears" included.
Zastosowania
Conference room presentations and advertising applications.
Rental and staging.
Przykładowa aplikacja
Specyfikacja
INPUTS: | 8 DVI connectors. |
OUTPUTS: | 4 DVI connectors. |
BANDWIDTH: | Supports up to 2.25Gbps bandwidth per graphic channel. |
COMPLIANCE WITH STANDARDS: | Supports DVI and HDCP. |
MAX RESOLUTION: | Up to UXGA;1080p. |
POWER CONSUMPTION: | 100−240VAC; 50/60Hz, 38VA. |
CONTROLS: | Front panel buttons, infrared remote control transmitter, RS 232, Ethernet. |
OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
STORAGE TEMPERATURE: | −40° to +70°C (−40° to 158°F). |
HUMIDITY: | 10% to 90%, RHL non−condensing. |
DIMENSIONS: | 19" x 7" x 2U W, D, H. |
WEIGHT: | 2.5kg (5.5lbs) approx. |
ACCESSORIES: | Power cord, IR transmitter, rack “ears”. |
OPTIONS: | External remote IR receiver cable. |
Skrót właściwości | Przełącznik 8x4 sygnałów DVI i HDMI przez konektory DVI-D. Max. Data Rate: 2.25Gbps na kanał. |
---|
