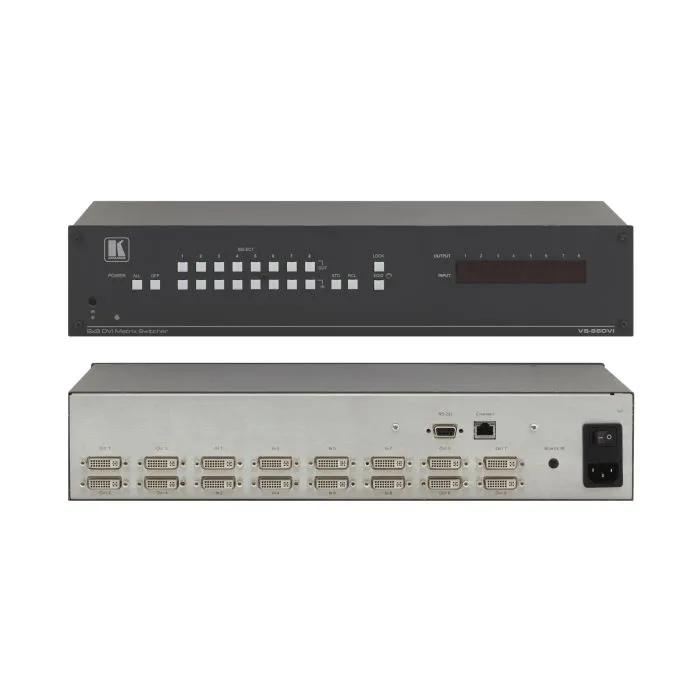

Przełącznik Kramer VS-88DVI
Przełącznik 8x8 sygnałów DVI.
Max. Data Rate: 6.75Gbps (2.25Gbps na kanał).
SKU
VS-88DVI
The VS−88DVI is a high−performance matrix switcher for DVI signals. The unit reclocks and equalizes the signal and can route any or all inputs to any or all outputs simultaneously.
-
Max. Data Rate-6.75Gbps (2.25Gbps per graphic channel).
-
HDTV Compatible.
-
Kramer Equalization & re-Klocking™ Technology-Rebuilds the digital signal integrity to travel longer distances.
-
I-EDIDPro™ Kramer Intelligent EDID Processing™-Intelligent EDID handling & processing algorithm ensures Plug and Play operation for DVI systems.
-
Flexible Control Options-Front panel, IR remote, RS−232 (K−Router™ Windows®−based software is included), Ethernet (Windows®−based Ethernet Configuration Manager & Virtual Serial Port Manager is included).
-
Output Disconnect-Each output.
-
Front Panel Lockout.
-
Memory Locations-Stores multiple switches as presets to be recalled and executed when needed.
-
Worldwide Power Supply-100−240V AC.
-
Standard 19” Rack Mount Size-2U. Rack “ears” included.
Zastosowania
Conference room presentations.
Advertising.
Rental and staging.
Przykładowa aplikacja
Specyfikacja
INPUTS: | 8 DVI, 1.2Vpp on DVI Molex 24−pin female connectors; DDC signal 5Vpp (TTL). |
OUTPUTS: | 8 DVI, 1.2Vpp on DVI Molex 24−pin female connectors; DDC signal 5Vpp (TTL). |
MAX. DATA RATE: | 6.75Gbps (2.25Gbps per graphic channel). |
COMPLIANCE WITH STANDARDS: | Supports DVI 1.1. |
MAX RESOLUTION: | Up to UXGA; 1080p, 1920x1200. |
POWER CONSUMPTION: | 100−240V AC; 50/60Hz, 43VA. |
CONTROLS: | Front panel buttons, infrared remote control transmitter, RS−232, Ethernet. |
DIMENSIONS: | 19" x 7" x 2U W, D, H. |
WEIGHT: | 2.5kg (5.5lbs) approx. |
ACCESSORIES: | Power cord, infrared remote controller, null−modem adapter, rack "ears". |
Skrót właściwości | Przełącznik 8x8 sygnałów DVI. Max. Data Rate: 6.75Gbps (2.25Gbps na kanał). |
---|
