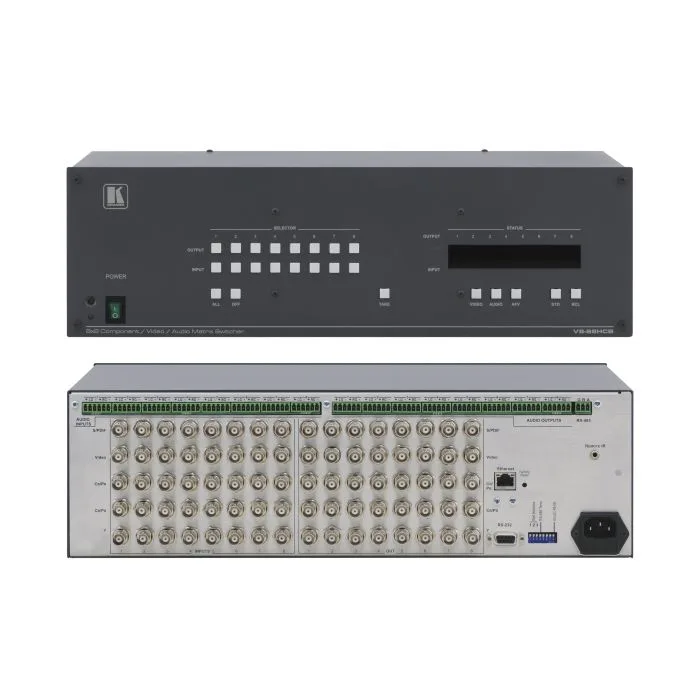

Przełącznik Kramer VS-88HCB
Przełącznik 8x8 sygnałów composite, component, s-Video oraz S/PDIF i symetrycznego stereo.
Pasmo przenoszenia - 300 MHz (-3 dB)
SKU
VS-88HCB
The VS−88HCB is a high−performance universal matrix switcher for composite video, s−video (Y/C) component video (Y, Pb, and Pr), balanced stereo audio and S/PDIF digital audio signals. It can route any or all inputs to any or all outputs simultaneously.
- High Bandwidth - 300MHz (-3dB) fully loaded.
- HDTV Compatible.
- Inputs / Outputs - 5 BNCs per channel for composite, s-Video (Y/C), component (YUV) video, and S/PDIF audio. No format transcoding.
- Balanced Stereo Audio - On terminal block connectors.
- Audio Breakaway Switching - Balanced Stereo Audio.
- Take Button - Executes multiple switches all at once.
- Memory Locations - Stores multiple switches as presets for recall and execution as needed.
- Flexible Control - Front panel, RS-232 (K-Router™ Windows®-based software is included), RS-485, Ethernet, IR Remote (included).
- Size - 19” (3U) Standard 19” Rack Mount Size 3U. Rack "ears” included.
- Note: The S/PDIF audio does not breakaway
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 5x8 composite video 1Vpp/75Ω and S/PDIF digital audio or s-Video 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C); and component video 1Vpp/0.7Vpp/75Ω on BNC connectors 8 balanced stereo audio, +4dBm/33kΩ, on detachable terminal blocks |
| OUTPUTS: | 5x8 composite video 1Vpp/75Ω and S/PDIF digital audio or s-Video 1Vpp/75Ω (Y), 0.3Vpp/75Ω (C); and component video 1Vpp/0.7Vpp/75Ω on BNC connectors 8 balanced stereo audio, +4dBm/150Ω, on detachable terminal blocks |
| MAX. OUTPUT LEVEL: | VIDEO: 2.8Vpp AUDIO: 24Vpp |
| BANDWIDTH (-3dB): | VIDEO: 300MHz, Fully Loaded AUDIO: 100kHz |
| CROSSTALK (all hostile): | VIDEO: <–50dB @5MHz |
| S/N RATIO: | VIDEO: 74dB AUDIO: 84dB unweighted, (1Vpp) |
| INDICATORS: | 8−character front panel display. |
| CONTROLS: | Manual, RS-232, RS-485 and ETHERNET |
| AUDIO THD: | 0.025% (1V, 1kHz) |
| POWER SOURCE: | 100 - 240V AC, 50/60Hz, 23VA |
| DIMENSIONS: | 19" x 7" x 3U |
| WEIGHT: | 5.5kg (12.2lbs) approx. |
| Skrót właściwości | Przełącznik 8x8 sygnałów composite, component, s-Video oraz S/PDIF i symetrycznego stereo. Pasmo przenoszenia - 300 MHz (-3 dB) |
|---|
