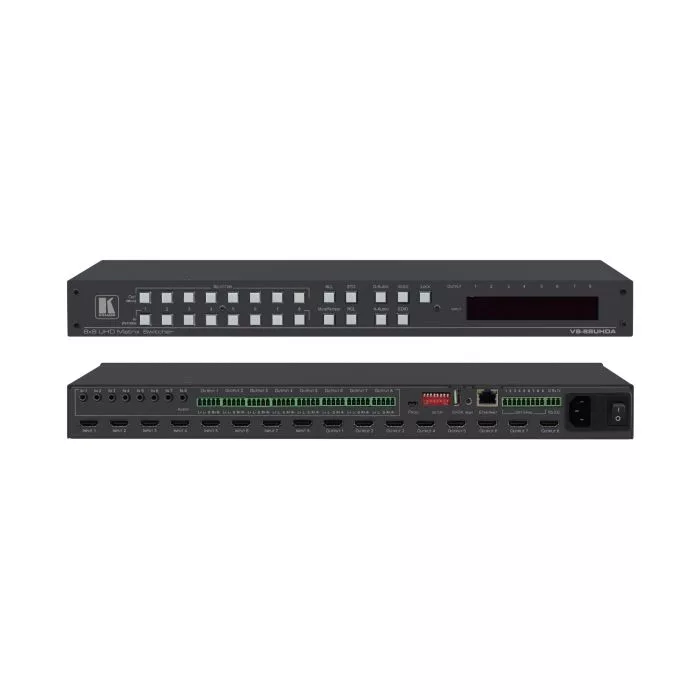

Przełącznik Kramer VS-88UHDA

8x8 4K60 4:2:0 HDMI Matrix Switcher with Audio Embedding/De–embedding
SKU
VS-88UHDA

VS−88UHDA is a high−quality 8x8 matrix switcher for 4K@60Hz (4:2:0) HDMI signals and embedded/de−embedded analog audio. It reclocks and equalizes the signals and can route any one of eight HDMI, HDCP−compliant sources (selectable) to any or all outputs simultaneously. The VS−88UHDA offers unmatched audio flexibility where any embedded digital or analog audio input can be routed to any embedded digital or analog audio output in addition to eight ARC sources to produce an equivalent 24x20 audio matrix.

  • Max. Data Rate — 8.91Gbps data rate (2.97Gbps per graphics channel).
  • Max. Resolution — Up to 4K@60Hz (4:2:0).
  • Independent Audio Matrix — With ARC support.
  • Audio Handling — Level & balance support with bass and treble adjustment.
  • Kramer Step–In Over HDMI Technology.
  • HDMI, HDCP and DVI Compliance.
  • Selectable HDCP Off per Input.
  • Memory Locations — 16 presets for quick access to common configurations.
  • Advanced EDID Management per Input.
  • Active Source & Acceptor Detection.
  • Automatic Input Selection — Based on priority selection or last connected input.
  • HDMI Support — Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels.
  • Kramer reKlocking™ and Equalization Technology — Rebuilds the digital signal to travel longer distances.
  • Embedded Pattern Generator — With selectable patterns.
  • Lock Button — To prevent tampering.
  • Kramer Protocol 3000 Support
  • Firmware Upgrade — Via mini USB, Ethernet or the RS–232 port.
  • Control Options — RS–232 serial commands transmitted by a PC, touch screen system or other serial controller, Ethernet port via LAN, embedded Web pages via LAN for configuration and control.
Specyfikacja techniczna
Standardy 4K@60Hz (4:2:0), DVI, HDCP, HDMI
Wejścia HDMI
Wyjścia HDMI
Audio Analog, Digital, Balanced, Unbalanced
Sterowanie Ethernet, USB, RS-232
Seria 19" 1U
Skrót właściwości 8x8 4K60 4:2:0 HDMI Matrix Switcher with Audio Embedding/De–embedding
