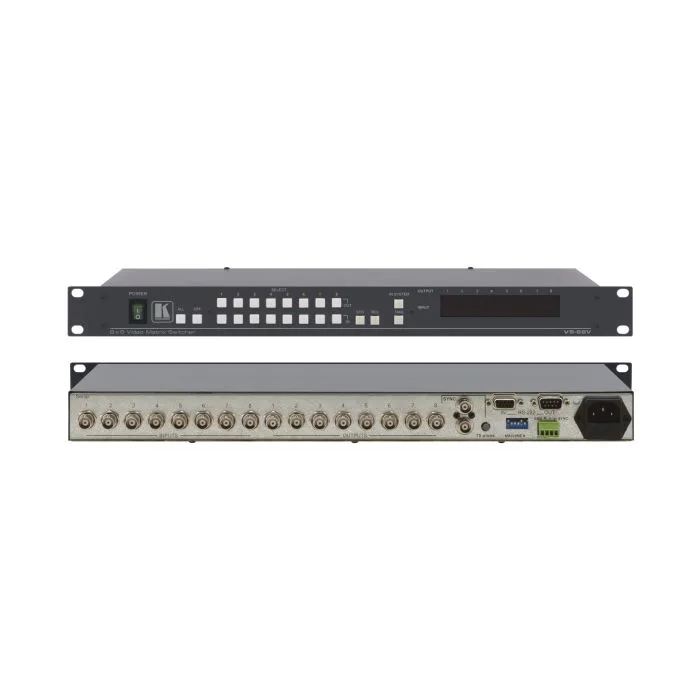

Przełącznik matrycowy Kramer VS-88V
Przełącznik matrycowy 8x8 sygnałów composite video.
SKU
VS-88V
The VS-88V is a high performance matrix switcher for composite video signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.
- Bandwidth — 200MHz ( — 3dB) fully loaded.
- Control — Front panel, RS–232 (K–Router™Windows® — based software is included), & RS–485.
- Take Button — Execute multiple switches all at once.
- Memory Locations — Store multiple switchesas presets to be recalled and executed whenneeded.
- Audio Breakaway Switching.
- Vertical Interval Switching.
- Switching Synchronization — Synchronize eitherto external reference or the incoming video.
- Looping Sync Input.
- Selectable Sync Signal Termination.
Standardy | Composite CV |
---|---|
Wejścia | Composite CV |
Wyjścia | Composite CV |
Sterowanie | RS-232, RS-485 |
Seria | 19" 1U |
Skrót właściwości | Przełącznik matrycowy 8x8 sygnałów composite video. |
