Przełącznik matrycowy Kramer VS-88UHD
Przełącznik matrycowy 8x8 4K60 4:2:0
SKU
VS-88UHD

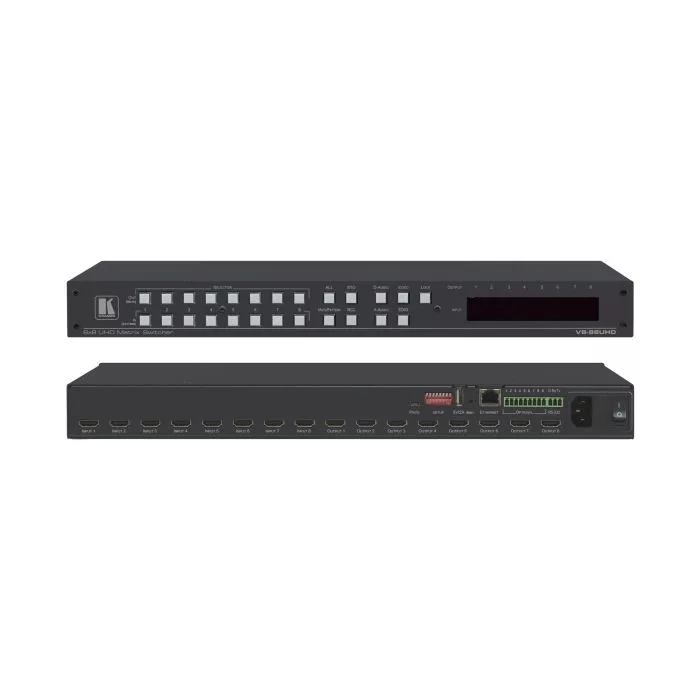

VS−88UHD is a high−quality 8x8 matrix switcher for 4K@60Hz (4:2:0) HDMI signals and embedded audio. It reclocks and equalizes the signals and can route any one of eight HDMI, HDCP−compliant sources (selectable) to any or all outputs simultaneously. VS−88UHD offers a flexible audio scheme where any HDMI digital audio input can be routed to any HDMI digital audio output in addition to ARC support to produce an equivalent 16x12 audio matrix.
- Max. Data Rate — 8.91Gbps data rate (2.97Gbps per graphics channel).
- Max. Resolution — 4K@60Hz (4:2:0).
- Independent 16x12 Audio Matrix — With 8 embedded digital inputs + 8 ARC inputs and 8 digital outputs + 4 ARC outputs.
- Kramer Step–In Over HDMI Technology.
- HDMI, HDCP and DVI Compliance.
- Selectable HDCP Off per Input.
- Memory Locations — 16 presets for quick access to common configurations.
- Advanced EDID Management per Input.
- Active Source & Acceptor Detection.
- Automatic Input Selection — Based on priority selection or last connected input.
- HDMI Support — Deep Color, 3D, ARC, up to 7.1 uncompressed audio channels.
- Kramer reKlocking™ and Equalization Technology — Rebuilds the digital signal to travel longer distances.
- Embedded Pattern Generator — With selectable patterns.
- Lock Button — To prevent tampering.
- Kramer Protocol 3000 Support.
- Firmware Upgrade — Via mini USB, Ethernet or the RS–232 port.
- Control Options — RS–232 serial commands transmitted by a PC, touch screen system or other serial controller, Ethernet port via LAN, embedded Web pages via LAN for configuration and control.
- Size — Standard 19" (1U). Rack "ears" included.
Standardy | 4K@60Hz (4:2:0), DVI, HDCP, HDMI |
---|---|
Wejścia | HDMI |
Wyjścia | HDMI, 4K UHD HDMI |
Sterowanie | Ethernet, Mini-USB, RS-232 |
Seria | 19" 1U |
Skrót właściwości | Przełącznik matrycowy 8x8 4K60 4:2:0 |
