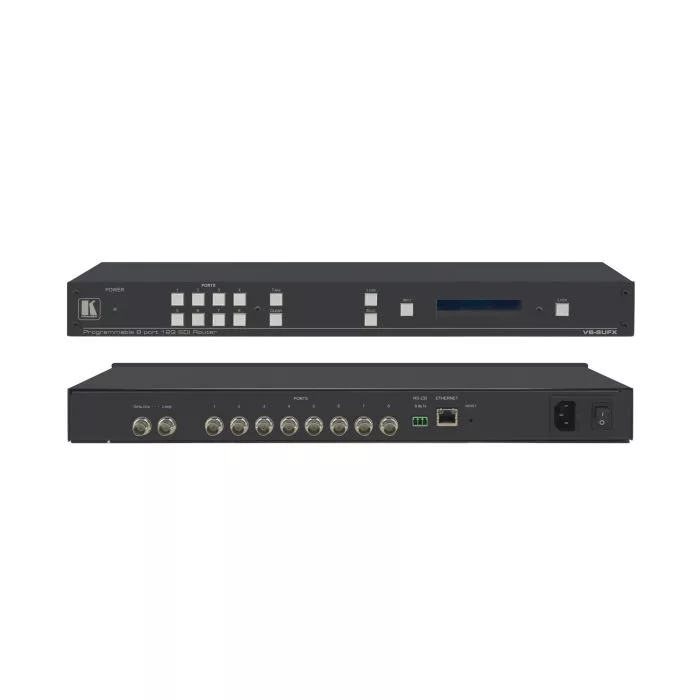

Przełącznik matrycowy Kramer VS-8UFX
8–Port 12G SDI Matrix Switcher with Interchangeable Inputs & Outputs
SKU
VS-8UFX
VS−8UFX is an 8−port matrix switcher for SDI signals for up to 12G HD−SDI. Each SDI port can be defined as either an input or output.
- Max. Data Rate — 12Gbps.
- HDTV Compatible.
- Multi–Standard Operation — SDI (SMPTE 259M/344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
- Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
- Supports ANC Data — Embedded audio, teletext, time code, etc.
- Cable Equalization — Up to 350m for SD signals, 140m for 1.5GHz HD signals and 120m for 3GHz 3G signals.
- Clean Switching — When the sources are genlocked to the selected genlock input with a difference of no more than two lines of video.
- Versatile Genlocking — Using an analog signal.
- Memory Locations — Stores 8 multiple switches as presets to be recalled and executed when needed.
Standardy | HDTV, 3G HD-SDI, HD-SDI, SDI |
---|---|
Wejścia | SDI |
Wyjścia | HD-SDI, SDI |
Seria | Desktop |
Skrót właściwości | 8–Port 12G SDI Matrix Switcher with Interchangeable Inputs & Outputs |
