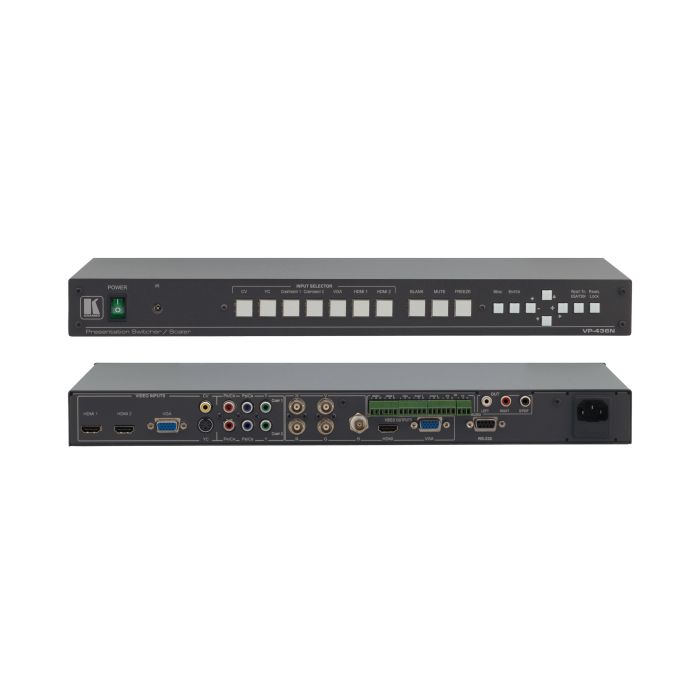

Przełącznik ze skalerem Kramer VP-436N
Przełącznik ze skalerem z sygnałów HDMI, VGA, CV, YUV i s-Video, na RGBHV, HDMI i VGA.
K-Storm™ Scaling Technology.
SKU
VP-436N
The VP−436N is a 7−input scaler/switcher for composite, component, s−Video (Y/C), computer graphics video and HDMI with unbalanced stereo and S/PDIF audio signals. It scales the selected video signal to a computer graphics or HDTV output resolution, embeds the audio and outputs an HDMI signal.
-
K-Storm™ Scaling Technology-Kramer’s extremely high−performance scaling technology. High quality 3:2 and 2:2 pull down de−interlacing and full up− and down−scaling of computer graphics video input signals.
-
HDTV Compatible.
-
HDCP Compliant-The HDCP (High Definition Content Protection) license agreement allows copy−protected data on the HDMI input to pass only to the HDMI output.
-
Video Inputs-1 composite video, 1 s−Video, 2 component video (HDTV compatible), 1 computer graphics (15−pin HD) & 2 HDMI.
-
Scaled Outputs-A single output signal simultaneously available in 3 formats: 1 HDMI and 2 RGBHV (5 BNC, & 15−pin HD).
-
Improved HDMI Output Drive-Exceeds 60ft at 1080p @60Hz.
-
Output Resolutions-20 up to WUXGA & 1080p.
-
Audio Inputs-7 unbalanced on terminal blocks, individual level control.
-
Audio Output-Transcodes to both stereo and S/PDIF audio simultaneously (RCAs) and embeds audio onto the HDMI output, master volume control.
-
Multi-Standard-PAL & NTSC.
-
Audio Delay-40ms, 110ms, 150ms, or disable.
-
Companion AFV (Audio-Follow-Video)-Stereo audio for every input.
-
Built-in ProcAmp-Color, hue, sharpness, noise, contrast, and brightness.
-
Front Panel Control-Audio mute, video blanking & freeze frame.
-
Front Panel Lockout.
-
Multiple Aspect Ratio Selections-Full, overscan, underscan, letterbox & panscan.
-
Flexible Control Options-Front panel buttons, IR remote with OSD (on−screen display) & RS−232.
-
Worldwide Power Supply-100−240V AC.
-
Standard 19” Rack Mount Size-1U. Rack “ears” included.
Zastosowania
Projection systems in conference rooms, boardrooms, hotels and houses of worship.
Home theater up-scaling.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 2 HDMI connectors (HDMI, HDCP version 1.1); 1 VGA on a 15−pin HD connector; 1 composite video on an RCA connector; 1 Y/C on a 4−pin connector; 2 component video each on 3 RCA connectors; 2 HDMI, 1 VGA, 2 COMP, 1 CV, 1 Y/C, unbalanced stereo audio on 7 3−pin terminal block connectors. |
| OUTPUTS: | 1 RGBHV on 5 BNC connectors; 1 HDMI connector (HDMI, HDCP version 1.1); 1 VGA (RGBHV) on a 15−pin HD connector; 1 S/PDIF on an RCA connector; 1 unbalanced stereo audio on RCA connectors. |
| H FREQUENCY: | 15.63−90kHz. |
| V FREQUENCY: | 23−90Hz. |
| RGB SYNCS: | H and V TTL separated syncs. |
| RGB LEVEL: | 1.2Vpp max, 75Ω load. |
| XGA OUT LEVEL: | 1.2Vpp max, 75Ω load. |
| S/PDIF OUT LEVEL: | 0.55Vpp constant. |
| OUTPUT RESOLUTIONS: | Native, VGA, SVGA, XGA, SXGA, UXGA, 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, WXGA, WSXGA, WUXGA, 1280x800, 1440x900, 1400x1050, 1600x900. |
| OUTPUT REFRESH RATE: | 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions. |
| CONTROLS: | CV, Y/C, component 1, component 2, VGA, HDMI 1, HDMI 2, input selector buttons; blank, mute, freeze buttons; menu, enter, menu arrows, reset to XGA/720p, lock buttons, RS−232, IR. |
| POWER CONSUMPTION: | 100−240V AC, 33VA max. |
| DIMENSIONS: | 19" x 7" x 1U (W, H, D) rack mountable. |
| WEIGHT: | 2.7kg (6lbs) approx. |
| ACCESSORIES: | Power cord, null−modem adapter, IR remote control, rack "ears". |
| Skrót właściwości | Przełącznik ze skalerem z sygnałów HDMI, VGA, CV, YUV i s-Video, na RGBHV, HDMI i VGA. K-Storm™ Scaling Technology. |
|---|
