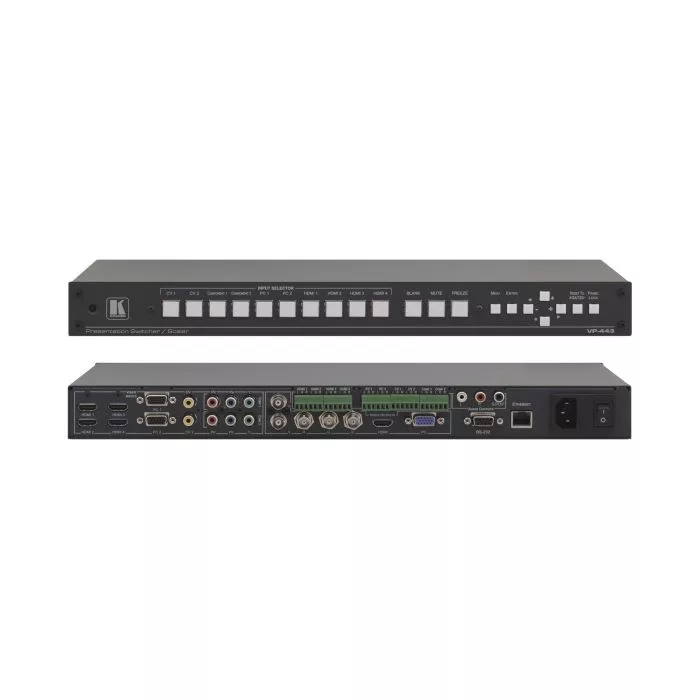

Przełącznik ze skalerem Kramer VP-443
Przełącznik ze skalerem z sygnałów CV, YUV, VGA, HDMI wraz z niesymetrycznym audio na wyjścia HDMI, VGA i RGBHV.
Maks. rozdzielczość wyjściowa: WUXGA, 1080p i 2048x1080.
SKU
VP-443
The VP−443 is a high−performance presentation scaler/switcher for HDMI, computer graphics, composite video and component video signals. The unit scales the video up to 2K and outputs the signal to HDMI (with embedded audio), computer graphics and RGBHV video outputs (with S/PDIF and unbalanced stereo audio) simultaneously.
-
K-Storm™ Scaling Technology.
-
HDTV Compatible.
-
HDCP Compliant - The HDCP (High Definition Content Protection) license agreement allows copy−protected data on the HDMI input to pass only to the HDMI output.
-
Multi-Standard - PAL & NTSC.
-
Video Inputs - 4 HDMI, 2 computer graphics video on 15−pin HD connectors, 2 composite video & 2 component video on RCA connectors.
-
Scaled Outputs - 1 HDMI, 1 RGBHV on BNC connectors, 1 VGA on a 15−pin HD connector, simultaneously.
-
24 Output Resolutions - Up to UXGA/1080p and 2K.
-
Companion AFV (Audio-Follow-Video) - Stereo audio for every input (on terminal blocks).
-
Audio Inputs - 10 unbalanced stereo on terminal blocks, each with individual level controls.
-
Audio Outputs - 1 S/PDIF & 1 unbalanced stereo audio on RCA connectors.
-
Multiple Aspect Ratio Selections - Full, overscan, underscan, letterbox & panscan.
-
Built-in ProcAmp - Color, hue, sharpness, noise, contrast & brightness.
-
Front Panel Control - Audio mute, video blanking & freeze frame.
-
Front Panel Lockout.
-
Non-Volatile Memory - Saves final settings.
-
Flexible Control Options - Front panel, IR remote with OSD (on−screen display), Ethernet & RS−232.
-
Worldwide Power Supply - 100−240V AC.
-
Standard 19” Rack Mount Size - 1U. Rack “ears” included.
Zastosowania
Projection systems in conference rooms, boardrooms, hotels and churches.
Home theater up-scaling.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 4 HDMI connectors (HDMI, HDCP version 1.1), 2 VGA on a 15−pin HD connector, 2 composite video on an RCA connector, 2 component video each on 3 RCA connectors, Unbalanced stereo audio on 10 3−pin terminal block connectors. |
| OUTPUTS: | 1 RGBHV on 5 BNC connectors, 1 HDMI connector (HDMI, HDCP version 1.1), 1 VGA (RGBHV) on a 15−pin HD connector, 1 S/PDIF on an RCA connector, 1 analog stereo audio on 2 RCA connectors. |
| H FREQUENCY: | 15.63−90kHz. |
| V FREQUENCY: | 50−100Hz. |
| RGB SYNCS: | H and V TTL separated syncs. |
| RGB LEVEL: | 1.2Vpp max, 75W load. |
| XGA OUT LEVEL: | 1.2Vpp max, 75W load. |
| S/PDIF OUT LEVEL: | 0.55Vpp constant. |
| OUTPUT RESOLUTIONS: | 720p60, 1080i60, 1080p60, 576i, 576p, 720p50, 1080i50, 1080p50, 1280x800, WXGA, WSXGA, WXGA+, WUXGA, NATIVE, VGA, SVGA, XGA, SXGA, SXGA+, UXGA, 480i, 480p, 1600x900, 2048x1080/50Hz, 2048x1080/60Hz. |
| CONTROLS: | CV 1, CV 2, component 1, component 2, PC 1, PC 2, HDMI 1, HDMI 2, HDMI 3, HDMI 4, input selector buttons; blank, mute, freeze buttons; menu, enter, menu arrows, reset to XGA/720p, lock buttons, RS−232, IR, Ethernet. |
| POWER CONSUMPTION: | 100−240V AC, 25VA max. |
| OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
| STORAGE TEMPERATURE: | −40° to +70°C (−40° to 158°F). |
| HUMIDITY: | 10% to 90%, RHL non−condensing. |
| DIMENSIONS: | 19" x 7" x 1U (W, D, H) rack mountable. |
| WEIGHT: | 2.7kg (6lbs) approx. |
| ACCESSORIES: | Power cord, rack ears, IR remote control. |
| Skrót właściwości | Przełącznik ze skalerem z sygnałów CV, YUV, VGA, HDMI wraz z niesymetrycznym audio na wyjścia HDMI, VGA i RGBHV. Maks. rozdzielczość wyjściowa: WUXGA, 1080p i 2048x1080. |
|---|
