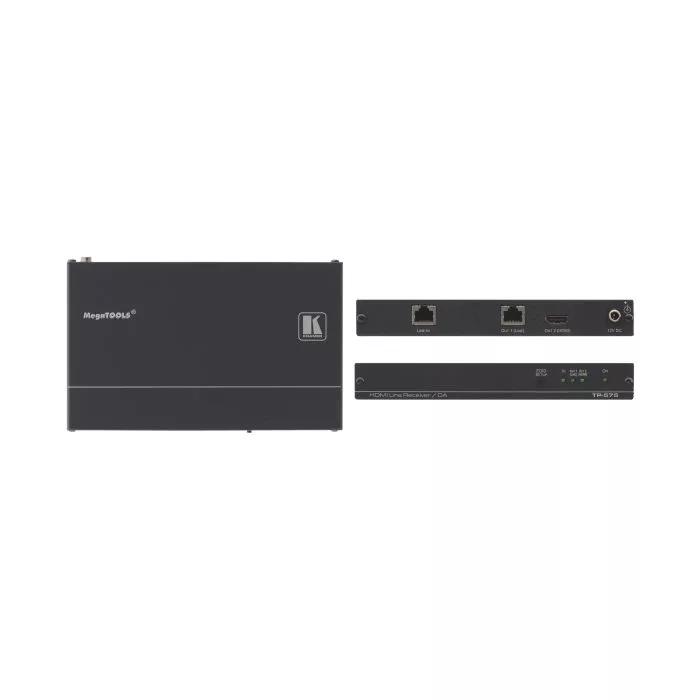

Rozgałęziacz Kramer TP-575

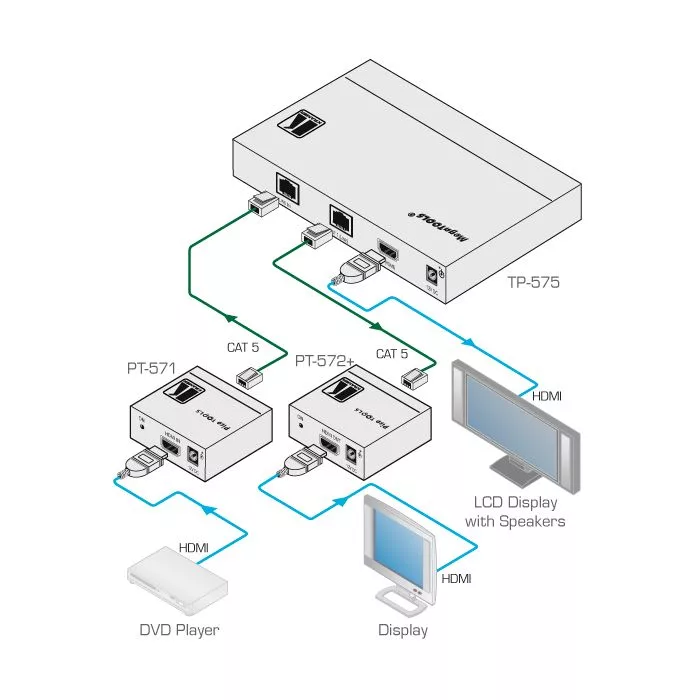

The TP−575 is a DGKat™ twisted pair line driver for HDMI over twisted pair signals. The unit receives a twisted pair signal and outputs both an HDMI and twisted pair signal to a compatible receiver.
Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
HDMI Support - x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD.
EDID PassThru - Passes EDID signals between the source and display.
HPD Pass-Through - Passes Hot Plug Detect signals from display to source.
Active Input/Output LED Indicators.
System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC−DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC−DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC−DGKat7a23 cable.
Cable - For optimum range and performance, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
Compatible Receivers - PT−572+, TP−574, TP−575, TP−576.
Output Signal Reclocking - Daisy chains up to 6 receivers for maximum range of 600m using shielded BC−DGKat7a23 cable at 1080i. (For other cables and resolutions, see System Range above.)
Power Connect™ System - A single connection to the TP−575 powers the transmitter, receiver and line driver units.
Compact MegaTOOLS™ - 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−T2B universal rack adapter.
Home theater, presentation and multimedia applications.
Rental and staging.
|INPUT:||1 DGKat twisted pair on an RJ−45 connector.|
|OUTPUTS:||1 DGKat twisted pair on an RJ−45 connector, 1 HDMI connector.|
|BANDWIDTH:||4.95Gbps (1.65Gbps per graphic channel).|
|COMPLIANCE WITH HDMI STANDARD:||Supports HDMI and HDCP.|
|CONTROLS:||EDID SETUP button.|
|INDICATOR LEDs:||IN, OUT 1 (LINE), OUT 2 (HDMI), and ON LEDs.|
|POWER CONSUMPTION:||12V DC, 950mA.|
|DIMENSIONS:||18.8cm x 11.4cm x 2.4cm (7.4" x 4.5" x 0.9") W, D, H.|
|WEIGHT:||0.3kg (0.67lbs) approx.|
|OPTIONS:||RK−T2B 19” rack adapter.|
