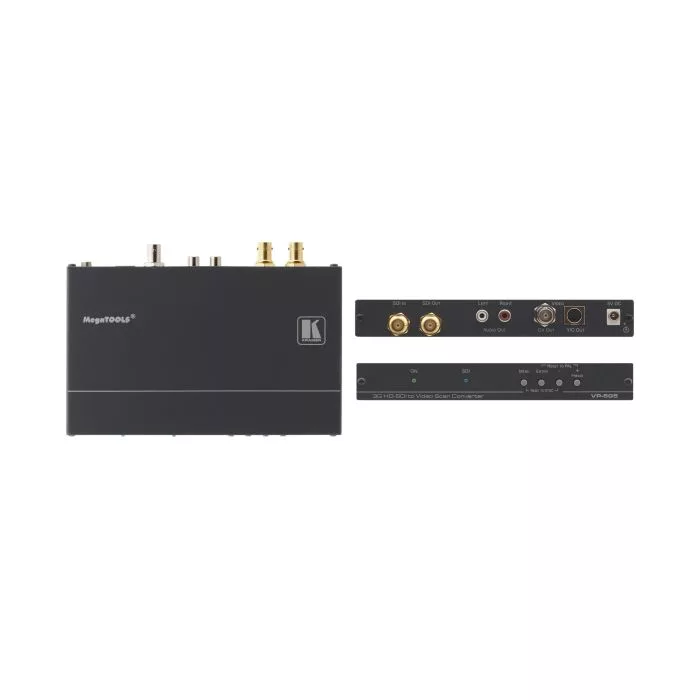

Skan konwerter Kramer VP-505
Skan konwerter zmieniający sygnały 3G HD-SDI na standardy PAL lub NTSC.
Max. Data Rate: 3Gbps.
SKU
VP-505
The VP−505 is a high−performance scan converter for digital video signals up to 3G HD−SDI. The unit de−embeds the audio to unbalanced stereo audio and down−scales the video to composite and s−Video (Y/C) simultaneously in either PAL or NTSC formats.
-
Max. Data Rate-3Gbps.
-
Multi-Standard Operation-SDI (SMPTE 259M and SMPTE 344M), HD−SDI (SMPTE 292M) and 3G HD−SDI (SMPTE 424M) inputs; PAL or NTSC selectable outputs.
-
Looping Input.
-
Multiple Output Sizes-Full, overscan, underscan, letterbox, panscan.
-
Built-In Proc Amp-Brightness, contrast, color, hue.
-
Non-Volatile Memory-Saves final settings.
-
Image Freeze Frame.
-
Control-Front panel and OSD (On Screen Display).
-
Indicators-ON and SDI signal LEDs.
-
Compact MegaTOOLS™-2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−T2B universal rack adapter.
Zastosowania
Projection systems in conference rooms, boardrooms, hotels and churches.
Home theater down-scaling.
Przykładowa aplikacja
Specyfikacja
| INPUT: | 1 SD/HD/3G HD−SDI with loop on a BNC connectors. |
| OUTPUTS: | 1 composite video on a BNC connector, 1 Y/C (s−Video) on a 4−pin connector, 1 unbalanced stereo audio on RCA connectors. |
| OUTPUT FORMATS: | PAL, NTSC. |
| OUTPUT REFRESH RATE: | 50Hz (PAL), 60Hz (NTSC). |
| OUTPUT SIZE: | Full, overscan, underscan 1, underscan 2, letterbox, panscan. |
| PROCESSING DELAY: | 30ms. |
| CONTROLS: | Menu, Enter, – and Freeze front panel buttons. |
| POWER CONSUMPTION: | 5V DC, 1.25A. |
| OPERATING TEMPERATURE: | 0° to +40°C (32° to 104°F). |
| STORAGE TEMPERATURE: | −40° to +70°C (−40° to 158°F). |
| HUMIDITY: | 10% to 90%, RHL non−condensing. |
| DIMENSIONS: | 18.8cm x 11.3cm x 2.6cm (7.4” x 4.5” x 1”) W, D, H. |
| WEIGHT: | 0.57kg (1.26lbs) approx. |
| ACCESSORIES: | Power supply. |
| OPTIONS: | RK−T2B 19" rack adapter. |
| Skrót właściwości | Skan konwerter zmieniający sygnały 3G HD-SDI na standardy PAL lub NTSC. Max. Data Rate: 3Gbps. |
|---|
