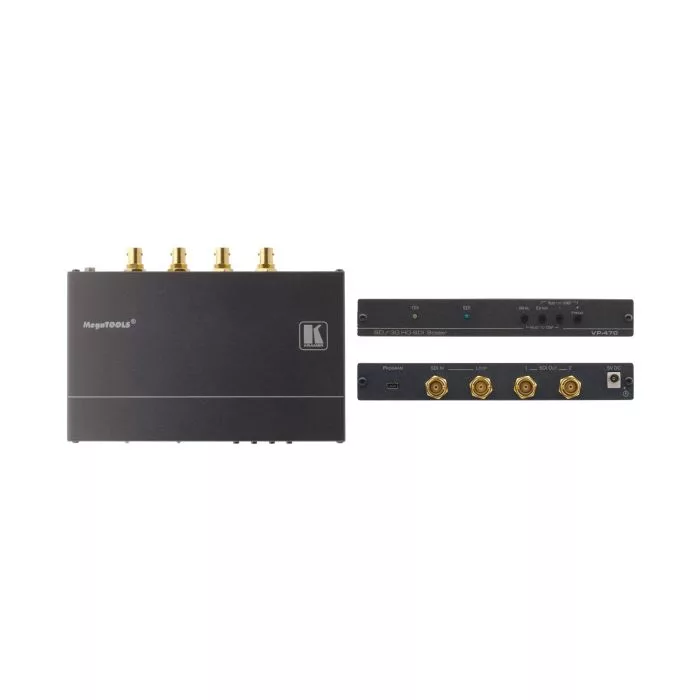

Skaler Kramer VP-470

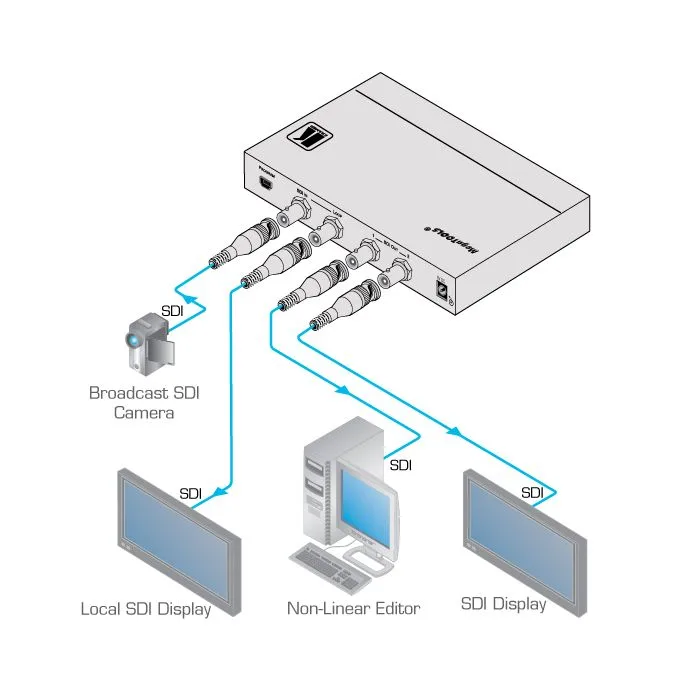

The VP-470 is a high-performance digital scaler for 3G HD-SDI signals. It up- or down-scales the incoming SDI signal to resolutions up to 1080p and routes it to two identical SDI outputs.

• Max. Data Rate — 3Gbps.
• HDTV Compatible.
• Multi–Standard Operation — SDI (SMPTE 259M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
• Looping Input — Reclocked and equalized.
• Selectable Output Size & Aspect Ratio — Full, panscan, letterbox, underscan and overscan settings.
• Built–In ProcAmp Features — Color hue, sharpness, contrast and brightness.
• Freeze Button.
• Non–Volatile Memory — Saves final settings.
• USB Port — For firmware upgrade.
• Controls — Front panel buttons with OSD (on screen display).
• Compact MegaTOOLS™ — 2 units can be rack mounted side–by–side in a 1U rack space with the optional RK–T2B universal rack adapter.
