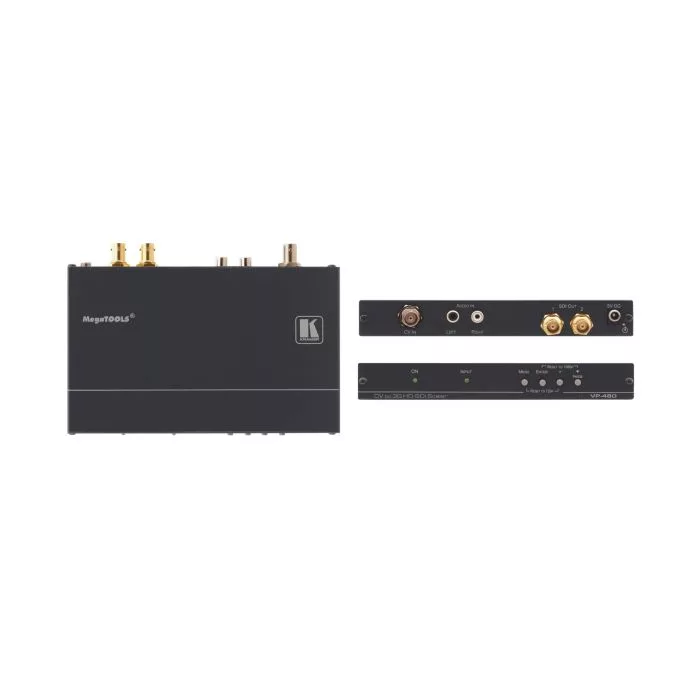

Skaler Kramer VP-480
Skaler sygnału CV wraz niesymetrycznym audio do wyjścia SDI.
SKU
VP-480

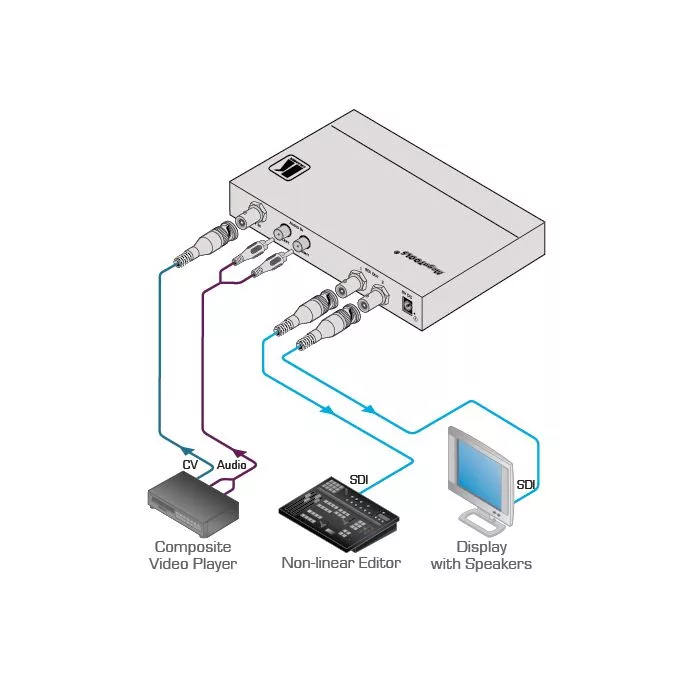

The VP−480 is a high−performance digital scaler for composite video and unbalanced stereo audio signals. The unit embeds the audio in the video stream and scales it to two SDI, HD−SDI or 3G HD−SDI signals.
- HDTV Compatible.
- Multi–Standard Operation — SDI (SMPTE 259M), HD–SDI (SMPTE 292M) and 3G HD–SDI (SMPTE 424M).
- Video Inputs — Composite video on a BNC connector.
- Audio Input — Unbalanced stereo audio on RCA connectors.
- Output Resolutions — Up to 1080p (3G HD–SDI).
- Built–In ProcAmp Features — Color hue, sharpness, contrast and brightness.
- Freeze Button.
- Non–Volatile Memory — Saves final settings.
- Controls — Front panel buttons with OSD (on screen display).
- Compact MegaTOOLS™ — 2 units can be rack mounted side–by–side in a 1U rack space with the optional RK–T2B universal rack adapter.
Standardy | 3G HD-SDI, HD-SDI, SDI |
---|---|
Wejścia | Composite CV |
Wyjścia | 3G-HD-SDI, HD-SDI, SDI |
Audio | Unbalanced |
Seria | Mega Tools |
Skrót właściwości | Skaler sygnału CV wraz niesymetrycznym audio do wyjścia SDI. |
