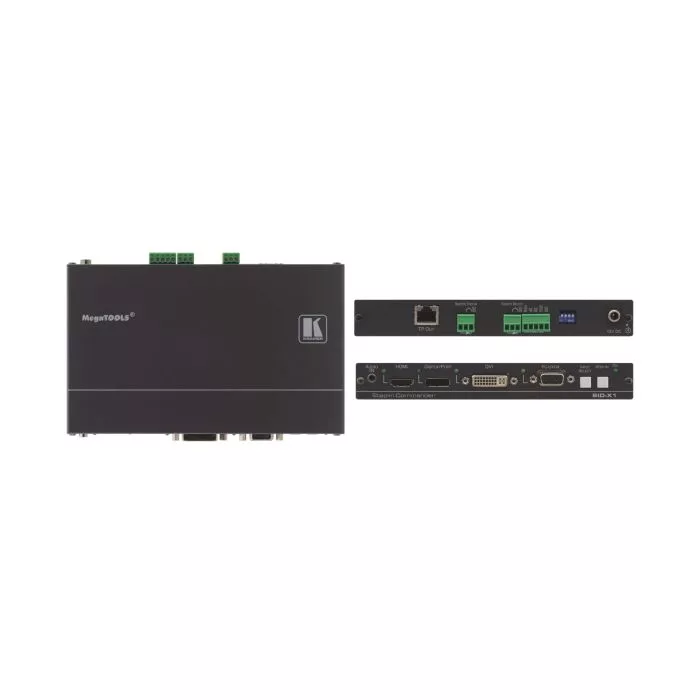

Transmiter Kramer SID-X1

4–Input Multi–Format Video over Twisted Pair Transmitter & Step–In Module
SKU
SID-X1

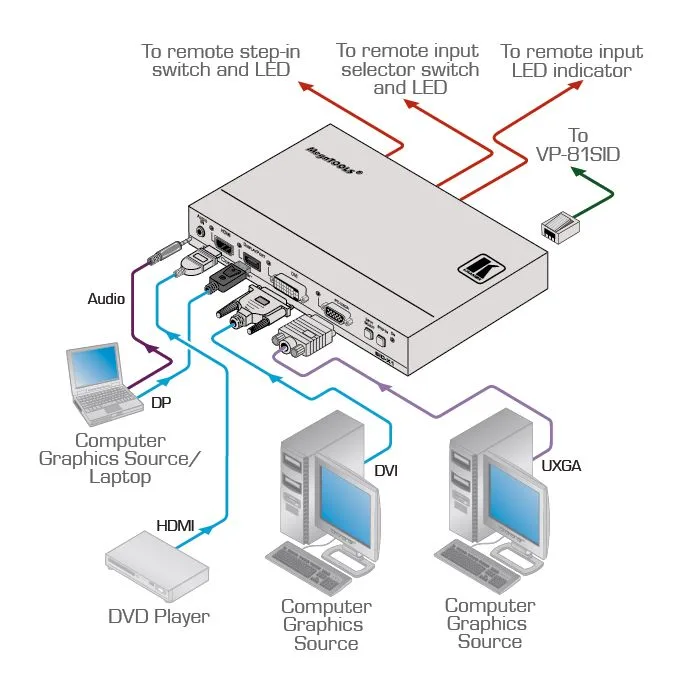

The SID-X1 is a DGKat™ twisted pair transmitter and step-in commander for computer graphics video, HDMI, DVI, DisplayPort and unbalanced stereo audio signals. The unit includes a “Step-In” button that allows the local source to be routed as the active source on the main display through the main switcher.

  • HDTV Compatible.
  • HDCP Compliant.
  • DGKat™ Signal Integration — Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables.
  • Cable — Requires STP (shielded twisted pair) cable. For optimum range and performance, use Kramer's BC–DGKat623 or BC–DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non–Kramer CAT 6 and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
  • Local Step–In Switching — Button & contact closure.
  • Compatible Switcher — VP–81SID.
  • Power Supply — Requires independent power supply.
  • Compact MegaTOOLS™ — 2 units can be rack mounted side–by–side in a 1U rack space with the optional RK–T2B universal rack adapter.
Specyfikacja techniczna
Standardy VGA, SVGA, XGA, SXGA, UXGA, DVI, HDCP, HDTV, HDMI, DGKat
Wejścia HDMI, DisplayPort, VGA
Wyjścia DGKat
Audio Unbalanced
Seria Mega Tools
Skrót właściwości 4–Input Multi–Format Video over Twisted Pair Transmitter & Step–In Module
