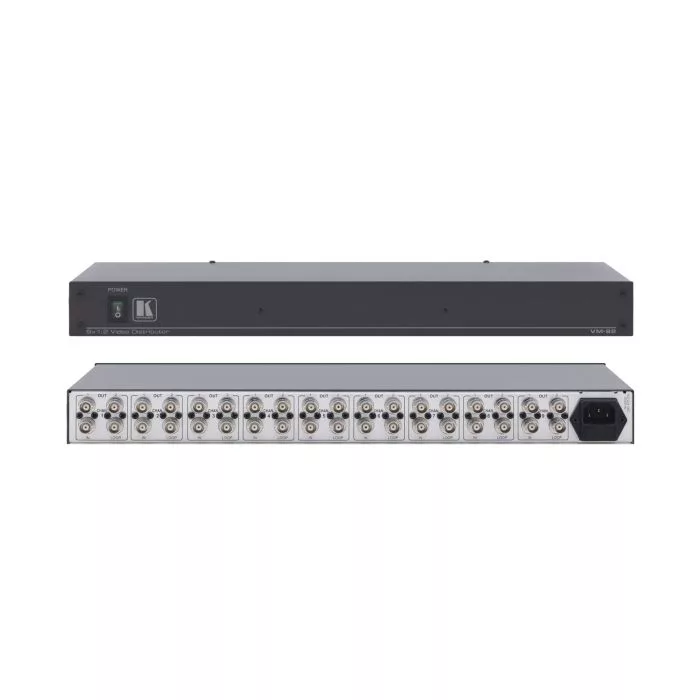

Wzmacniacz dystrybucyjny Kramer VM-92
9 Channel Multi–Mode Video Distribution Amplifier.
SKU
VM-92

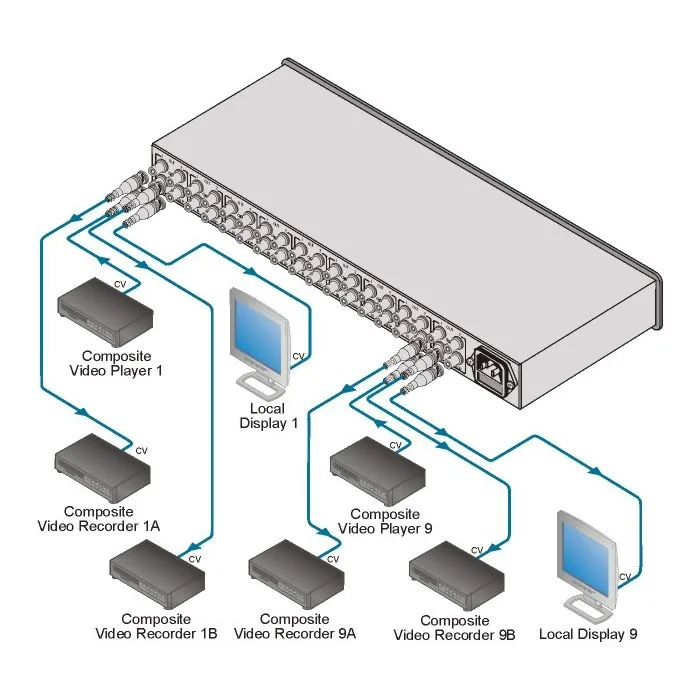

The VM-92 is a high performance multi-mode distribution amplifier for composite, s-video (Y/C), component (YUV), and RGBS video signals. It can be configured as a 9x1:2 composite, 4x1:2 s-Video (Y/C), 3x1:2 component (YUV) or 2x1:2 RGBS DAs.
- High Bandwidth — 500MHz ( — 3dB).
- HDTV Compatible.
- Looping Input — Each channel. Can be used to create a 1x18 composite video, 1x9 s–video (Y/C), 1x6 component video distribution amplifier
- INPUTS: — 9 independent channels 1 Vpp / 75Ω on BNC connectors
- Selectable Input Signal Termination — Each channel.
- EQ (Peaking) Control — Each channel.
- Worldwide Power Supply — 100–240V AC.
- Standard 19” Rack Mount Size — 1U.
| Standardy | Component YUV, Composite CV, RGBS, s-Video Y/C |
|---|---|
| Wejścia | Composite CV |
| Wyjścia | Composite CV |
| Seria | 19" 1U |
| Skrót właściwości | 9 Channel Multi–Mode Video Distribution Amplifier. |
