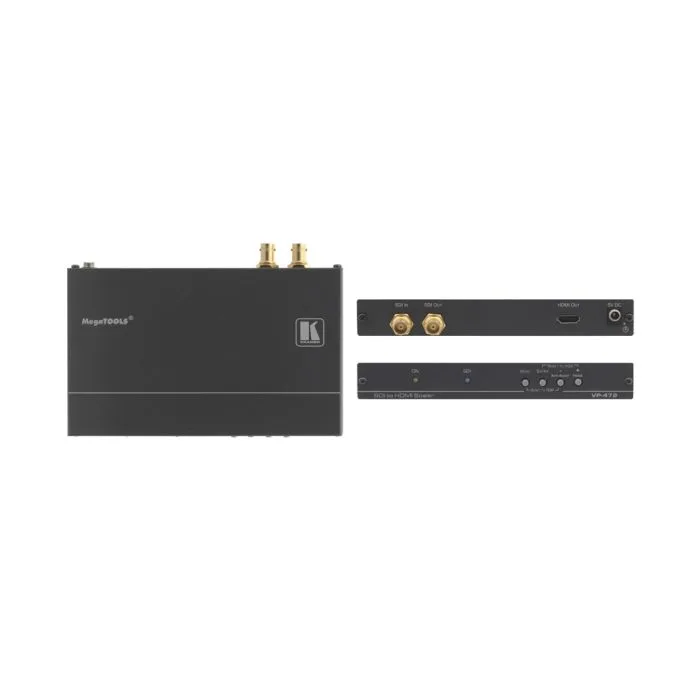

Skaler Kramer VP-472
Skaler sygnału 3G HD-SDI do wyjścia HDMI.
Formaty wejściowe: SDI, HD-SDI, 3G HD-SDI.
SKU
VP-472
The VP−472 is a high−performance digital scaler for 3G HD−SDI signals. It up− or down−scales the incoming video to computer graphics, SD or HD video resolutions that it outputs to an HDMI connector.
-
Multi-Standard Operation - SDI (SMPTE 259M), HD−SDI (SMPTE 292M) and 3G HD−SDI (SMPTE 424M).
-
HDTV Compatible.
-
Looping Input - Reclocked and equalized.
-
Video Output - HDMI.
-
Computer Graphics Resolutions - SVGA, XGA, 1360x768, WXGA, SXGA, 1440x900, SXGA+, WSXGA+, UXGA, WUXGA, 720x576 @50Hz, 720x480 (NTSC), 1280x720 @50/60Hz (HD 720), 1920x1080 @50/60Hz (HD 1080).
-
HDTV Output Resolutions - 720p @50/60Hz, 1080p @50/60Hz and 1080i @50/60Hz.
-
Selectable Output Size & Aspect Ratio - Full, panscan, letterbox, underscan and overscan settings.
-
Built-In ProcAmp Features - Color hue, sharpness, contrast and brightness.
-
Freeze Button.
-
Non-Volatile Memory - Saves final settings.
-
Controls - Front panel buttons, OSD.
-
Compact MegaTOOLS™ - 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−T2B universal rack adapter.
Zastosowania
Projection systems in conference rooms, boardrooms, hotels and churches.
Home theater up-scaling.
Przykładowa aplikacja
Specyfikacja
| INPUT: | 1 SD/HD/3G HD−SDI with reclocked and equalized loop on a BNC connector. |
| OUTPUTS: | 1 HDMI on an HDMI connector. |
| OUTPUT RESOLUTIONS : | Native, 1920x1080p @50 (HD 1080), 1280x720p @50 (HD 720), 720x576p @50, 1920x1080p (HD 1080), 1280x720p (HD 720), 720x480p (NTSC), 1920x1200p (WUXGA), 1600x1200 (UXGA), 1680x1050 (WSXGA+), 1400x1050 (SXGA+), 1440x900, 1280x1024 (SXGA), 1280x800 (WXGA), 1360x768, 1280x768 (WXGA), 1024x768 (XGA), 800x600 (SVGA); PC: VGA, SVGA, XGA, 1280x800, UXGA, SXGA, WXGA, SXGA+, WXGA+, WSXGA, WUXGA; SDTV: 480p and 576p; HDTV: 720p @50/60Hz, 1080p @50/60Hz, 1080i @50/60Hz. |
| OUTPUT REFRESH RATE: | 60Hz for computer graphics resolutions, 50/60Hz for HDTV resolutions. |
| OUTPUT SIZE: | Full, panscan, letterbox, under 2, under 1, overscan. |
| PROCESSING DELAY: | 30ms. |
| CONTROLS: | Menu, Enter, “–“ and +/Freeze front panel buttons. |
| POWER CONSUMPTION: | 5V DC, 1.2A. |
| DIMENSIONS: | 18.8cm x 13.4cm x 2.4cm (7.4” x 5.3” x 1”) W, D, H. |
| WEIGHT: | 0.75kg (1.7lbs) approx. |
| ACCESSORIES: | Power supply. |
| OPTIONS: | RK−T2B 19" rack adapter. |
| Skrót właściwości | Skaler sygnału 3G HD-SDI do wyjścia HDMI. Formaty wejściowe: SDI, HD-SDI, 3G HD-SDI. |
|---|
