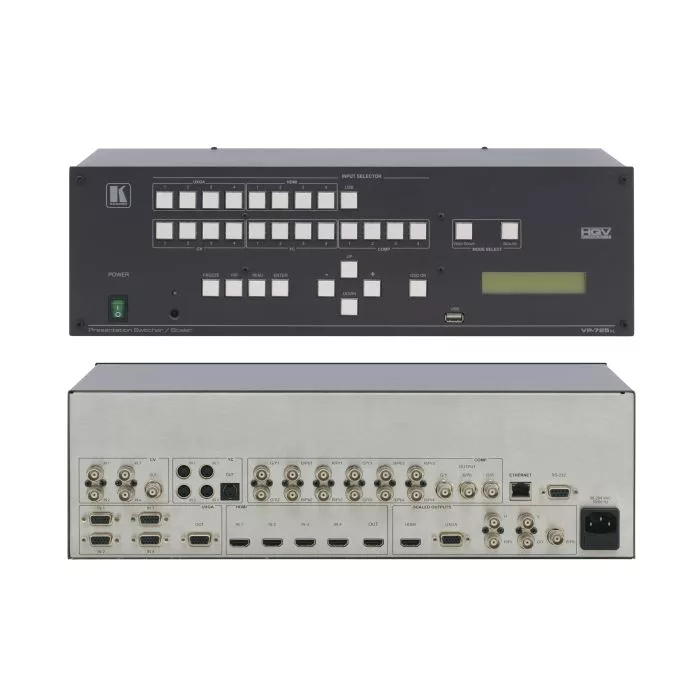

Przełącznik ze skalerem Kramer VP-725xl
The VP−725xl is a presentation scaler/switcher with multiple signal format sections. The unit has five independent 4x1 video sections: composite, s−Video (Y/C), component (YUV), computer graphics, and HDMI, plus a single USB input. It also scales any video input up or down to a selectable graphics or HDTV output resolution and provides glitch−free switching between sources through FTB™ (fade−thru−black) switching technology.
HQV® Video Processing-HQV (Hollywood Quality Video) processing represents the state−of−the−art in video processing technology, with the highest quality de−interlacing (with 3:2 & 2:2 pull down), noise reduction, and scaling performance for both standard−definition and high−definition signals.
De-interlacing and Scaling-High−quality 3:2 and 2:2 pull down, de−interlacing and full up and down scaling of computer graphics video input signals.
HDCP Compliant-The HDCP (High Definition Content Protection) license agreement allows copy−protected data on the HDMI input to pass only to the HDMI output.
Fade-Thru-Black (FTB™) Switching (Scaled Output)-The video fades to black and then the new input fades from black for smooth, glitch−free switching. The output signal provides constant sync so the display never glitches.
K-IIT XL™ Picture-in-Picture Image Insertion Technology-Ultra stable picture−in−picture, picture−and−picture, and split screen capability. Any video source can be inserted into or positioned next to a computer graphics video source or vice versa with window positioning and sizing controls.
Projector Anywhere™ Technology-Horizontal & vertical geometry controls compensate for off−axis projector placement.
Multi-Format-Auto, NTSC (3.58/4.43), PAL (M/N/60) & SECAM.
6 Switchers in 1-Five dedicated signal formats: 4x1 composite, 4x1 s−Video (Y/C), 4x1 component (RGB/YUV), 4x1 computer graphics (15−pin HD), 4x1 HDMI and one 21x1:3 scaled output.
USB Port-For importing JPEG files.
Scaled Computer & HDTV Outputs-A single output signal in 3 formats (15−pin HD, 5 BNCs, and HDMI) simultaneously.
HDTV Compatible Component Input.
HDTV Output Resolutions-720p, 1080i, and 1080p.
Computer Graphics Output Resolutions-23 plus a user definable custom output resolution with selectable refresh rates.
Multiple Color Space-RGB or YUV output.
Flexible Control-Front panel, IR Remote (with on−screen menus), Ethernet & RS−232.
Standard 19” Rack Mount Size-3U. Rack “ears” included.
Projection systems (with full audio capability) in conference rooms, board rooms, auditoriums, hotels, and churches.
Any application in which high-quality conversion and switching of multiple and different video signals to graphical data is required for projection and large display purposes (with full audio capability).
|INPUTS:||4 x CV 1Vpp/75Ω on BNC connectors;
4 x Y/C 1Vpp, (Y): 0.3Vpp (C)/75Ω on 4−pin connectors;
4 x component (Y/G, Pb/B, Pr/R or RGsB) on BNC connectors;
4 x VGA (VGA through UXGA, RGBS or RGsB2) on 15−pin HD connectors;
4 x HDMI on HDMI connectors.
|GROUP OUTPUTS:||1 x CV 1Vpp/75Ω on a BNC connector;
1 x Y/C 1Vpp (Y): 0.3Vpp (C)/75Ω on a 4−pin connector;
1 x component (Y/G, Pb/B, Pr/R) on BNC connectors;
1 x VGA (VGA through UXGA) on a 15−pin HD connector;
1 x HDMI on an HDMI connector.
|SCALED OUTPUTS:||1 x UXGA on a 15−pin HD connector;
1 x RGBHV/YPbPr on BNC connectors;
1 x HDMI on an HDMI connector.
|OUTPUT RESOLUTIONS:||Native HDMI, 640x480@60Hz,
1080p@60Hz, 1080p@24Hz or custom.
|CONTROL:||Front panel buttons, IR remote control, RS−232, Ethernet; with OSD and front panel LCD.|
|ADDITIONAL CONTROLS:||Freeze, zoom, selectable vertical refresh rates, output image scaling, picture−in−picture, aspect ratio change, geometry settings, text overlay, and so on.|
|POWER CONSUMPTION:||100−240V AC, 50/60Hz, 38VA.|
|DIMENSIONS:||19" x 9.3" x 3U W, D, H, rack mountable.|
|WEIGHT:||5.5kg (12.2lbs) approx.|
|ACCESSORIES:||IR remote control, power cord, rack “ears”, null−modem adapter, control application programs via RS−232 (PC) and via Ethernet (i−Phone® and PC).|
