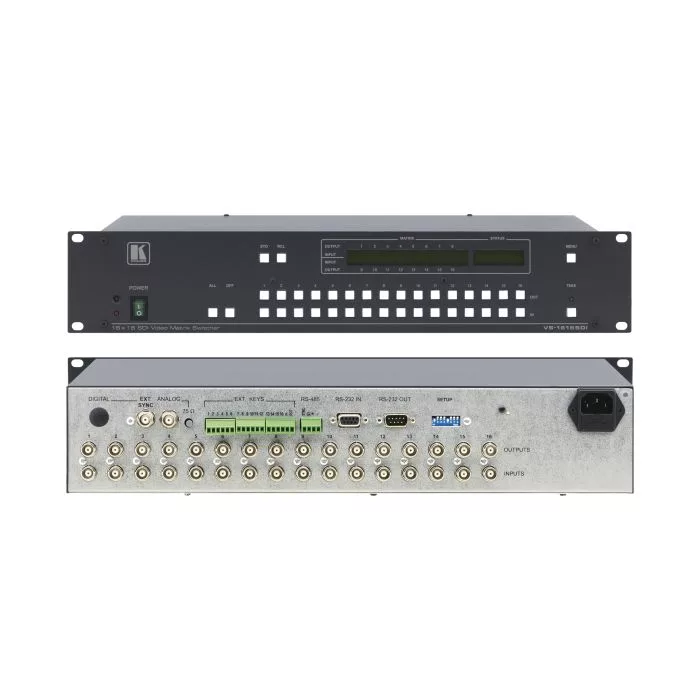

Przełącznik Kramer VS-1616SDI

Oceń ten produkt jako pierwszy

Przełącznik 8x8 sygnałów SDI. Max. przepustowość: do 270Mbps.

SKU

VS-1616SDI

Powiadom mnie jeśli będzie obniżka

Szczegóły

! Ograniczona dostępność. Urządzenie zostanie wycofane po wyczerpaniu stanów magazynowych we wszystkich oddziałach Kramer.

The VS-1616SDI is a high performance matrix switcher for SDI (SMPTE 259M) video signals. Switching during the vertical interval ensures glitch-free switching with genlocked sources.

Max Data Rate
-
Up to 270Mbps.
Reclocking & Equalization
-
Automatic.
Multi-Standard
-
143Mb/s (4fsc NTSC),177Mb/s (4fsc PAL, 270Mb/s (4:2:2 component), 360Mb/s (4:2:2 widescreen).
Control
-
Front panel, RS-232 (K-Router™Windows® - based software is included), &RS-485, contact closure, & IR remote (included).
Resolution
-
8 & 10-bit (automatic).
Take Button
-
Execute multiple switches all atonce.
Memory Locations
-
Store multiple switchesas presets to be recalled and executed whenneeded.
Vertical Interval Switching.
Switching Synchronization
-
Synchronizeeither to external reference or the incomingvideo.
Looping Analog Sync Input.
Selectable Sync Signal Termination.
Standard 19” Rack Mount Size
-
2U.

Zastosowania

Video Broadcast studios for On-Air switching and signal routing.
Video production facilities, for connecting various sources to acceptors.

Przykładowa aplikacja

Kramer VS-1616SDI

Specyfikacja

INPUTS:	16 SMPTE-259M Serial Video, 75 Ω on BNC connectors
OUTPUTS:	16 reclocked SMPTE-259M Serial Video, 75Ω on BNC connectors
REFERENCE INPUT:	Analog loop through on BNC connectors, 75Ω/Hi-Z, switchable SMPTE-259M serial video (option)
SWITCHING:	Vertical interval
RESOLUTION:	Automatic up to 300m, (Belden 8281 cable, 270Mb/s)
JITTER:	<300ps at 270Mb/s, 10Hz
OVERSHOOT:	<5%
OUTPUT LEVEL:	800mV, +/- 5%
CONTROL:	38 selector switches; RS-232, RS-485, IR remote, dry keyboard extension
DIMENSIONS:	19-inch (W), 7-inch (D) 2U (H) rack-mountable
POWER SOURCE:	230 VAC, 50/60 Hz, (115VAC, U.S.A.) 10VA
INDICATORS:	Multi−character displays on the front panel.
WEIGHT:	3.5 kg (7.8 lbs.) approx
ACCESSORIES:	Power cord, Null modem adapter, Windows 95/98/NT/2000™ Kramer control software
WEIGHT:	3.5kg (7.8lbs) approx.
ACCESSORIES:	Power cord, null-modem adapter, Windows®-based Kramer control software.
