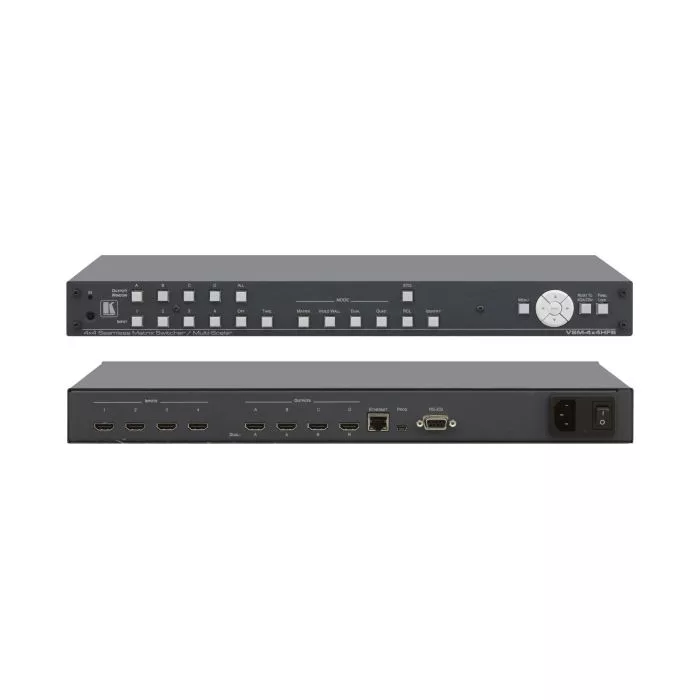

Prezentacyjny przełącznik ze skalerem Kramer VSM-4x4HFS

4x4 Seamless Matrix Switcher/Multi–Scaler.
SKU
VSM-4x4HFS

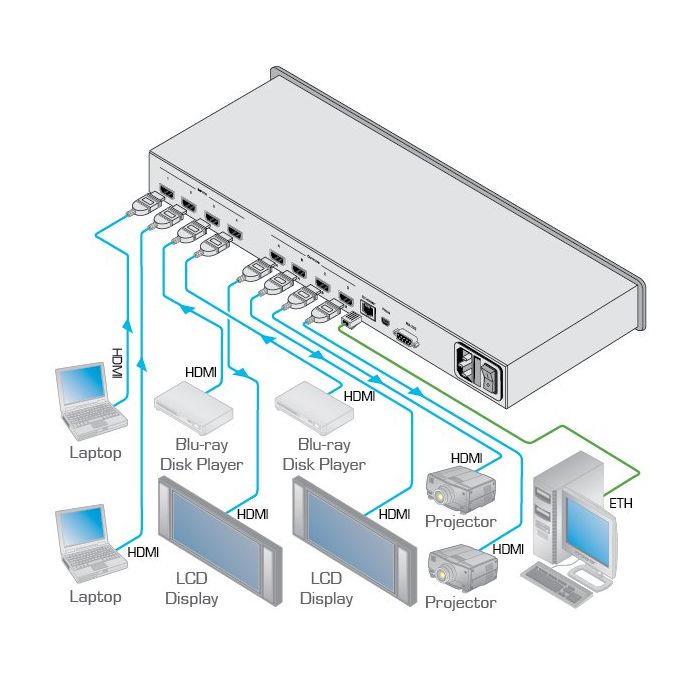

The VSM−4x4HFS is a seamless matrix switcher that can also be used as a 2x2 video wall driver or dual and quad multi−viewers. The unit allows switching between inputs with a clean video cut (frame−to−frame switching with no glitches). The VSM−4x4HFS supports HDMI resolutions with deep color, up to eight channels of audio and includes per−port HDCP and EDID settings.

  • PixPerfect™ Scaling Technology — Kramer’s precision pixel mapping and high quality scaling technology.
  • HDTV Compatible.
  • HDCP Compliant.
  • 4 HDMI Inputs and 4 Scaled HDMI Outputs.
  • Selectable Operation Modes — Matrix switcher, video wall, dual display (PIP/P&P) and quad display.
  • Seamless Switching — Frame–to–frame video cuts (zero transition time).
  • Bezel Correction Options — In video wall mode.
  • HDMI Support — Deep Color.
  • Embedded Audio — Supports Dolby Digital Plus, Dolby TrueHD, DTS, DTS–HD®, LPCM 2CH/6CH/8CH, AC3.
  • HDCP and EDID Settings per Port.
  • Resolution — VGA to WUXGA and 480i to 1080p input, 480p to 1080p output.
  • Multiple Output Aspect Ratios.
  • Built–in ProcAmp — Color, hue, sharpness, noise, contrast and brightness.
  • Flexible Control Options — Front panel buttons, IR remote control with OSD (On–Screen Display), RS–232, Ethernet with built–in Web browser.
  • 4 Preset Memory Locations — Quick access to common IN–OUT configurations and non–volatile memory settings in each operation mode.
  • Mini USB Connector — For upgrading firmware.
Specyfikacja techniczna
Standardy HDTV, HDMI, HDBaseT
Wejścia HDMI
Wyjścia HDMI
Sterowanie Ethernet, Mini-USB, RS-232, IR
Seria Desktop
Skrót właściwości 4x4 Seamless Matrix Switcher/Multi–Scaler.
