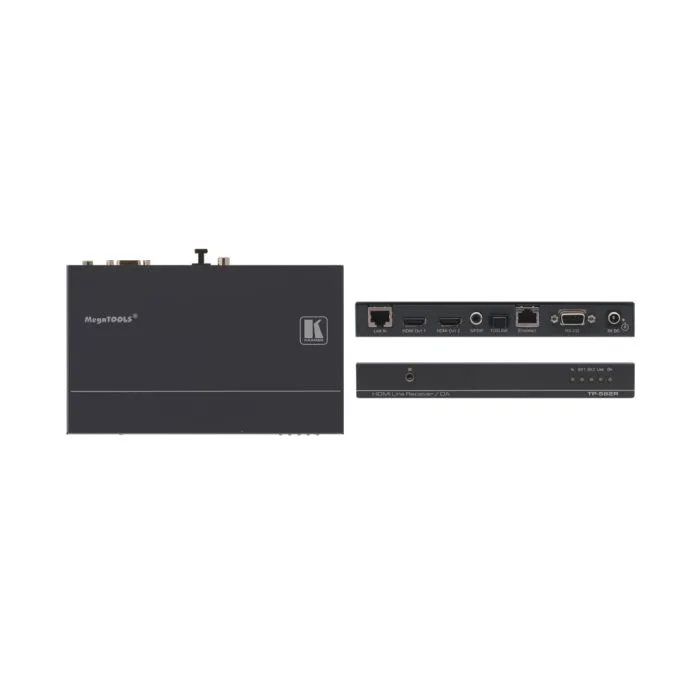

Odbiornik Kramer TP-582R

The TP−582R is a high−quality twisted pair receiver for HDMI, Ethernet 100BaseT, bidirectional RS−232 and IR signals. The TP−582T selects one of two HDMI inputs, and converts it with the Ethernet 100BaseT, RS−232 and IR input signals to an HDBaseT twisted pair signal. The TP−582R converts the HDBaseT twisted pair signal back to Ethernet 100BaseT, RS−232, IR and two HDMI outputs, and de−embeds the audio to S/PDIF and TOSLINK® audio outputs.

• Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
• HDBaseT Technology.
• HDTV Compatible.
• HDCP Compliance.
• HDMI Support - Deep Color, x.v.Color™, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD, CEC.
• 3D Pass-Through.
• EDID PassThru - Passes EDID signals between the source and display.
• Bidirectional RS-232 Interface - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and control of the destination unit.
• Ethernet Interface - Passes 100BaseT.
• System Range - Up to 100m (330ft).
• Cable - Requires shielded twisted pair (STP) cable. For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
• Control - Front panel.
• Indicators - Status LEDs for input selection, output, link and power.
• Compact MegaTOOLS® - 2 units can be rack mounted side−by−side in a 1U rack space with the optional RK−T2B universal rack adapter.

Zastosowania

Home theater, presentation and multimedia applications.
Rental and staging.

Przykładowa aplikacja

Specyfikacja
