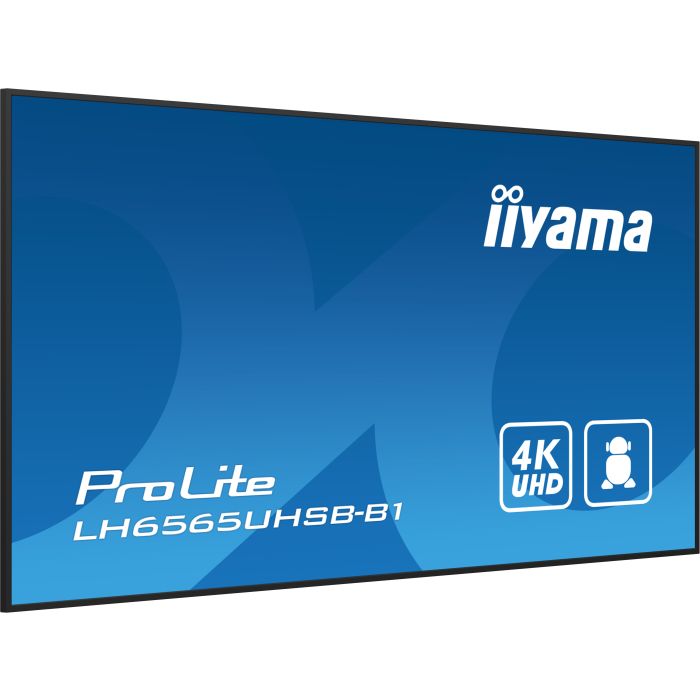

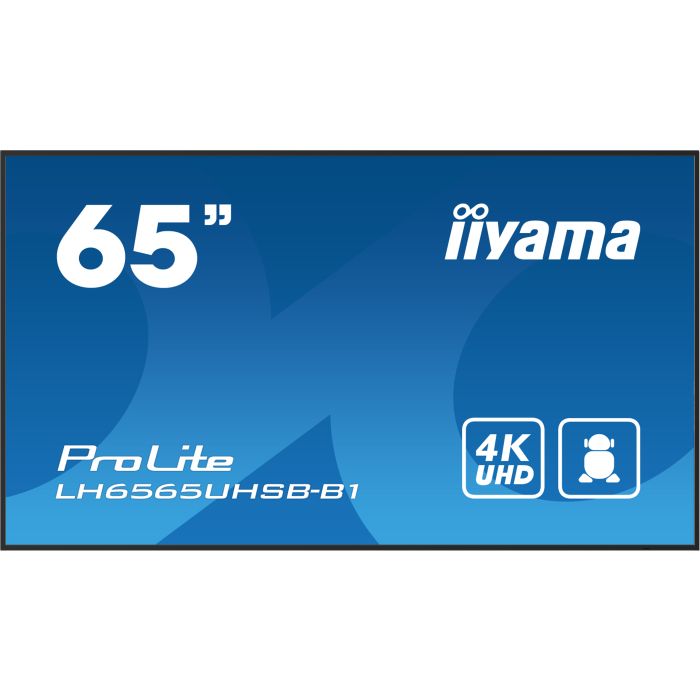

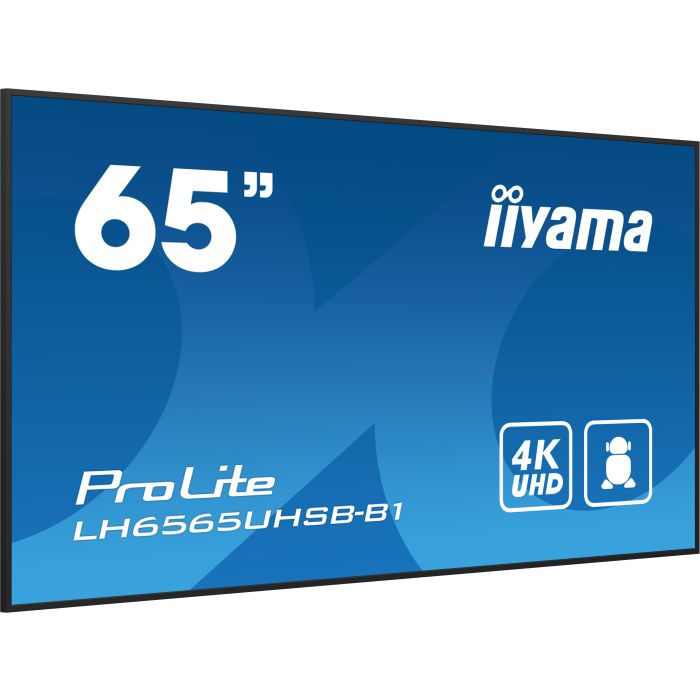

Marka: IIYAMA SKU: IJLH6565UHSB-B1

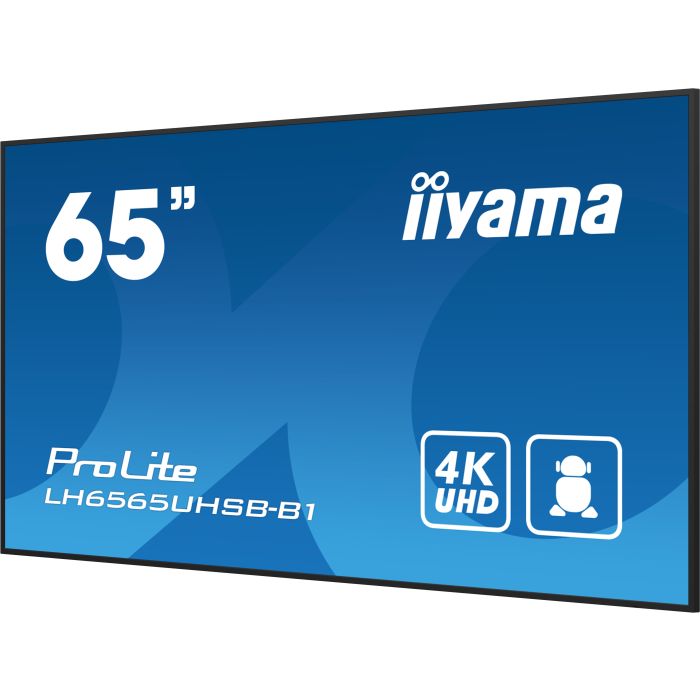

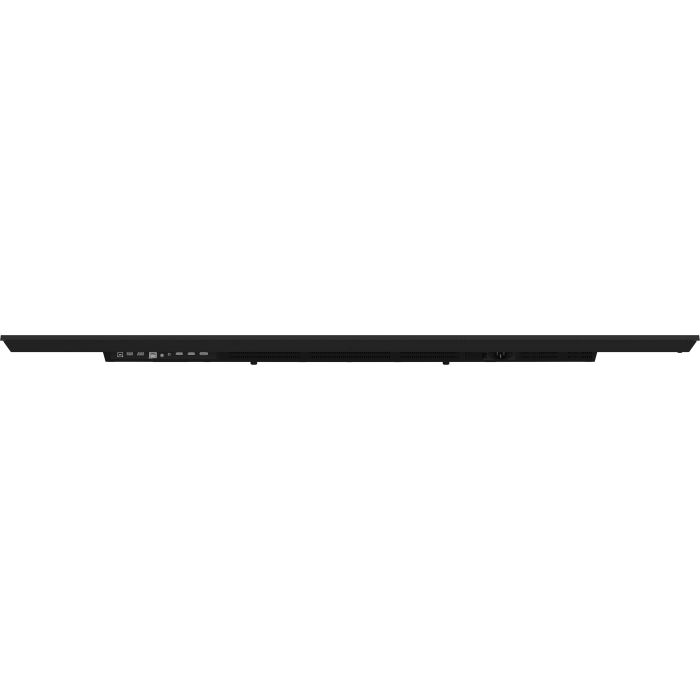

iiyama ProLite LH6565UHSB-B1 65" UHD IPS panel, 3840x2160, 800cd/m², 24/7, iiSignage², 2x HDMI, DP, Land/Port, VESA Mount 400x400

Specyfikacja techniczna

EAN / GTIN
4948570123582
Display diagonal
64.5 inch
Display diagonal (metric)
163.9 centimeter
Display resolution
3840 x 2160 pixels
Display brightness
800 candelas per square meter
Contrast ratio (typical)
1200:1
Wszystkie parametryZwiń parametry
EAN / GTIN4948570123582

Display

Display diagonal64.5 inch
Display diagonal (metric)163.9 centimeter
Display resolution3840 x 2160 pixels
Display brightness800 candelas per square meter
Contrast ratio (typical)1200:1
Viewing angle, horizontal178 degrees
Viewing angle, vertical178 degrees
Pixel pitch0.372 x 0.372 millimeter
Horizontal scan range28 - 160 kilohertz
HD type4K Ultra HD
Response time8 milliseconds
Native aspect ratio16:9
Display technologyLED
Active display area (W x H)803.52 x 680.72 millimeter
TouchscreenNo
Panel typeIPS
Display number of colours1.07 billion colours
Native refresh rate60 Hertz
Haze rate1 percent
RGB colour spaceNTSC

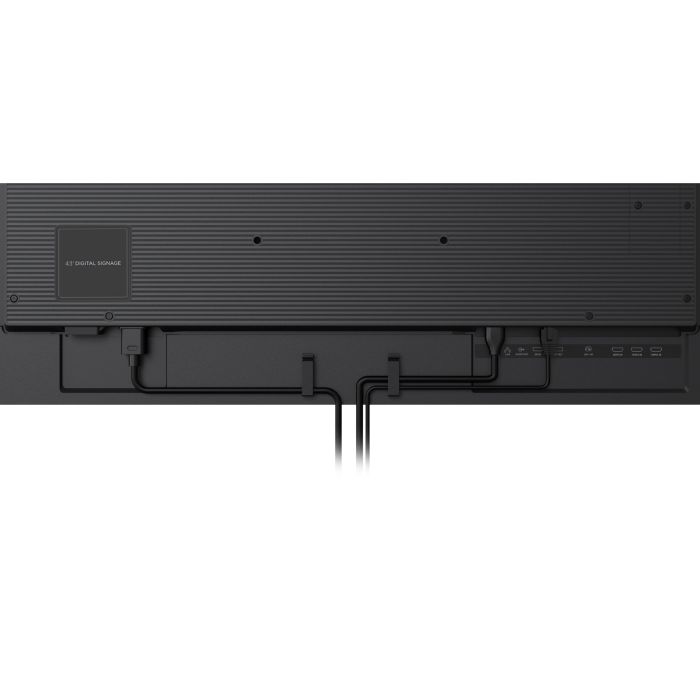

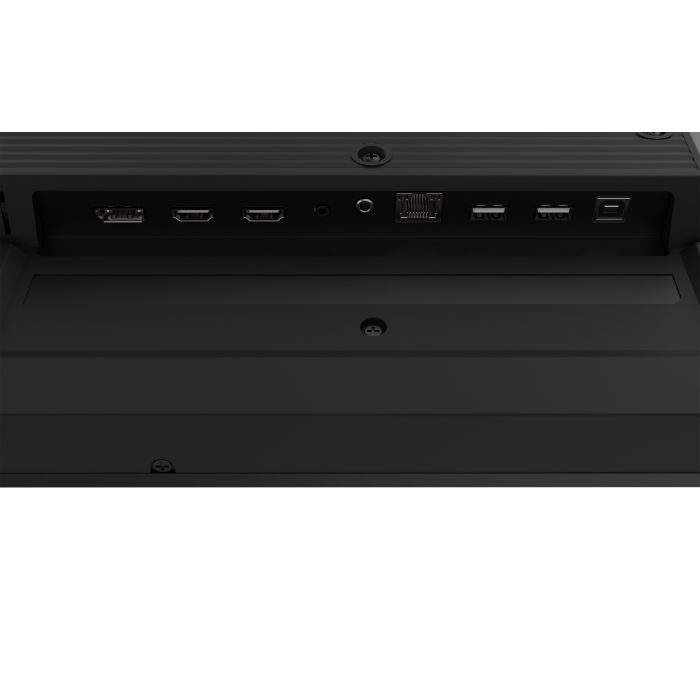

Ports & interfaces

Ethernet LANYes
Audio (L/R) in1
Ethernet LAN (RJ-45) ports1
RS-232 interfaceYes
HDMI ports quantity2
USB version2.0
USB ports quantity2
DisplayPorts quantity1
Wi-FiYes
Wi-Fi standardsWi-Fi 5 (802.11ac)
HDMI version2.0
RS-232CYes
DisplayPort version1.2
USB portYes

Audio

Built-in speaker(s)Yes
RMS rated power20 Watt
Number of built-in speakers2

Design

Product colourBlack

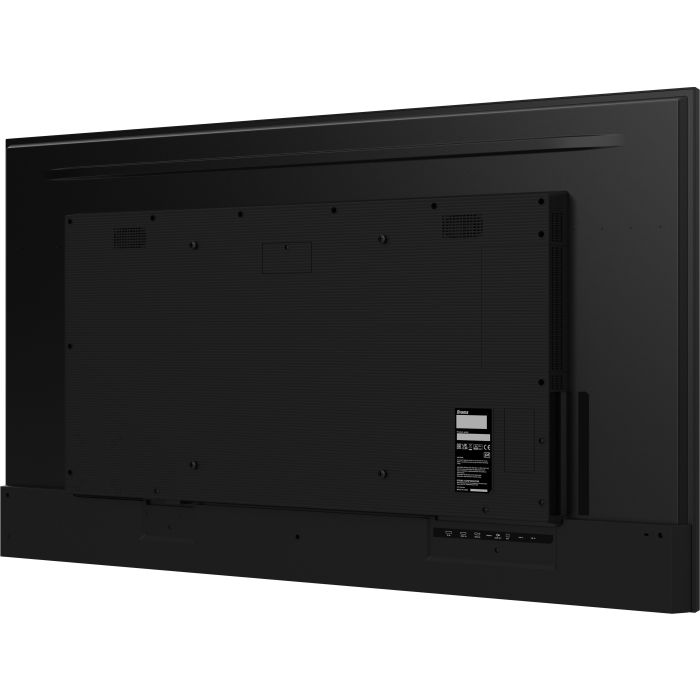

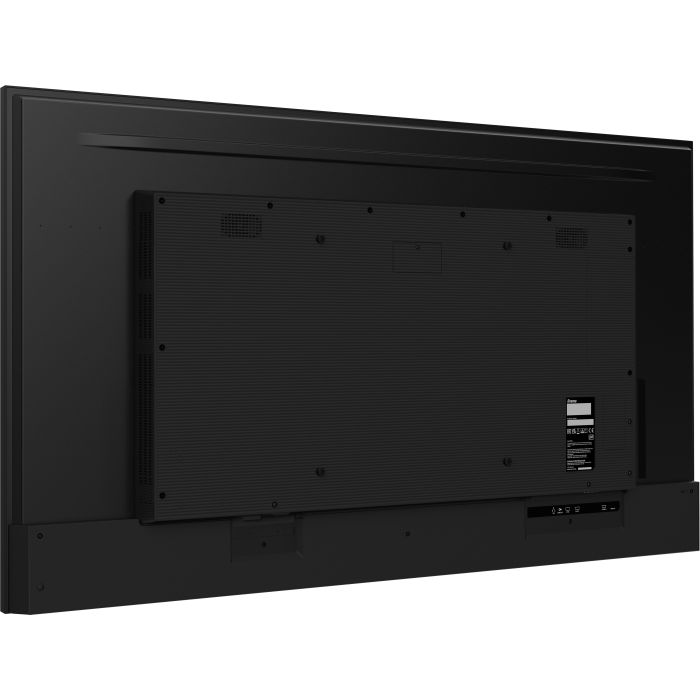

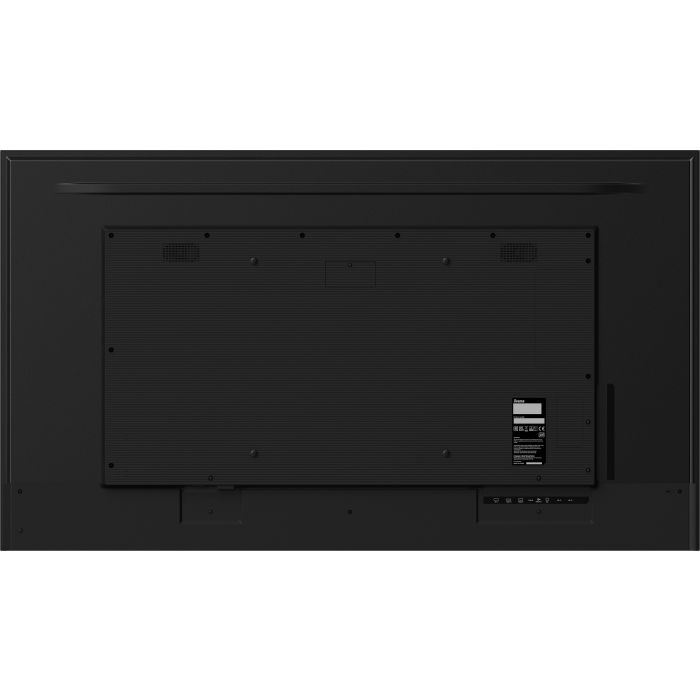

Panel mounting interface400 x 400 millimeter
Bezel width (bottom)14.9 millimeter
Bezel width (side)14.9 millimeter
Bezel width (top)14.9 millimeter
VESA mountingYes

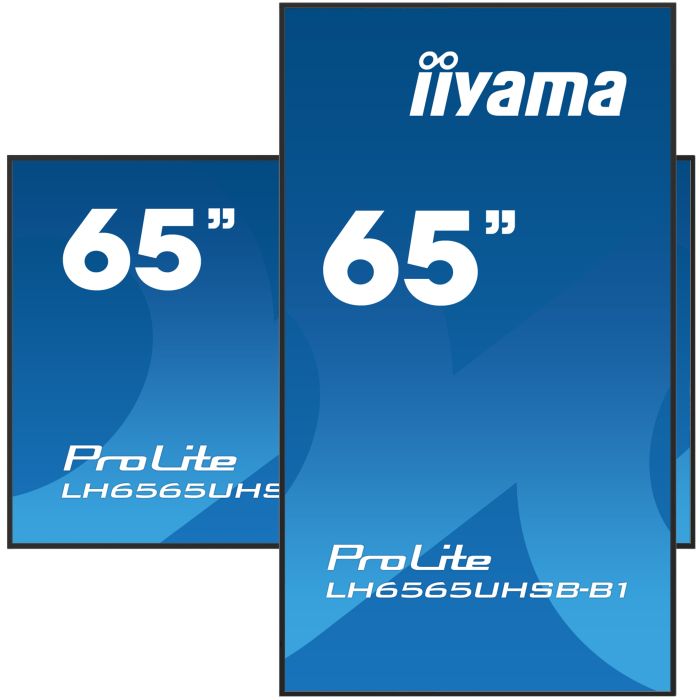

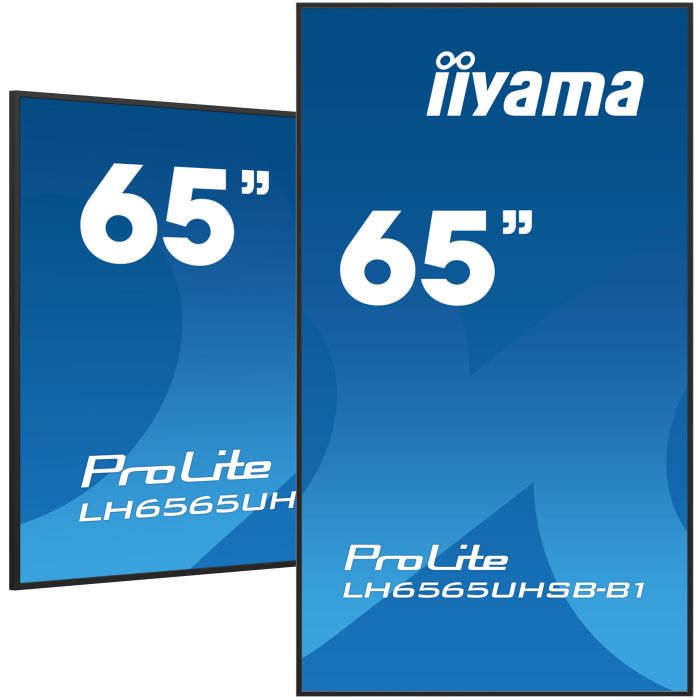

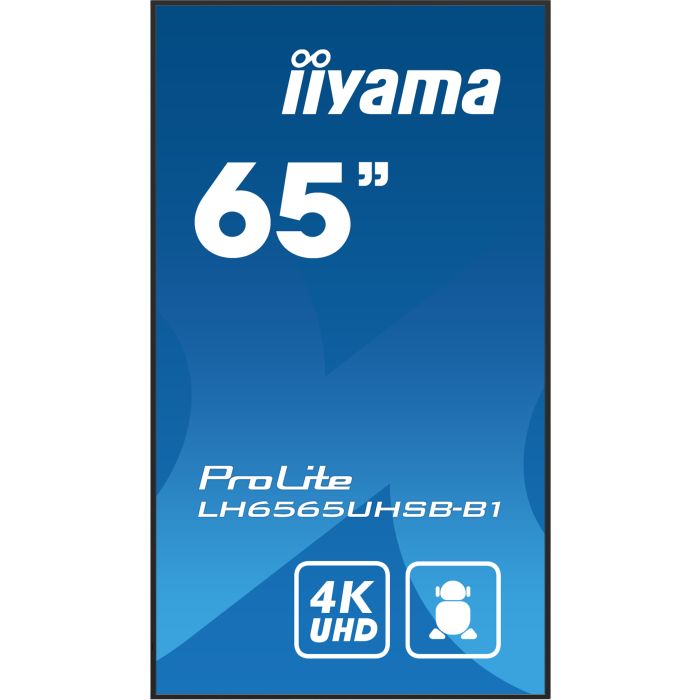

OrientationHorizontal/Vertical
Product designKiosk design
Bezel colourblack

Performance

HDCPYes
On Screen Display (OSD)Yes
Number of OSD languages8
On Screen Display (OSD) languagesCHI (TR),CZE,DAN,DEU,ENG,ESP,FIN,FRE,ITA,JPN,NOR,DUT,POL,RUS,SWE
Mean time between failures (MTBF)50000 hour
Operating hours (hours/days)24/7
PurposeCommercial
HDCP version2.2

Power

Power consumption (typical)104 Watt
Power consumption (standby)0.4 Watt
AC input voltage100 - 240 Volt
AC input frequency50/60 Hertz
Power consumption (off)0.3 Watt
Energy efficiency scaleA to G
Energy efficiency class (SDR)E
Energy efficiency class (HDR)Not available
Energy consumption (SDR) per 1000 hours104 kilowatt hour

Computer system

Processor familyARM Cortex
Internal memory4 gigabyte
Internal storage capacity32 gigabyte
Operating system installedAndroid 11
Computer systemYes
Processor cores8
Built-in processorYes
Processor manufacturerARM
On-board graphics card modelARM Mali-G52
Processor architectureARM Cortex-A73

Weight & dimensions

Width1456.5 millimeter

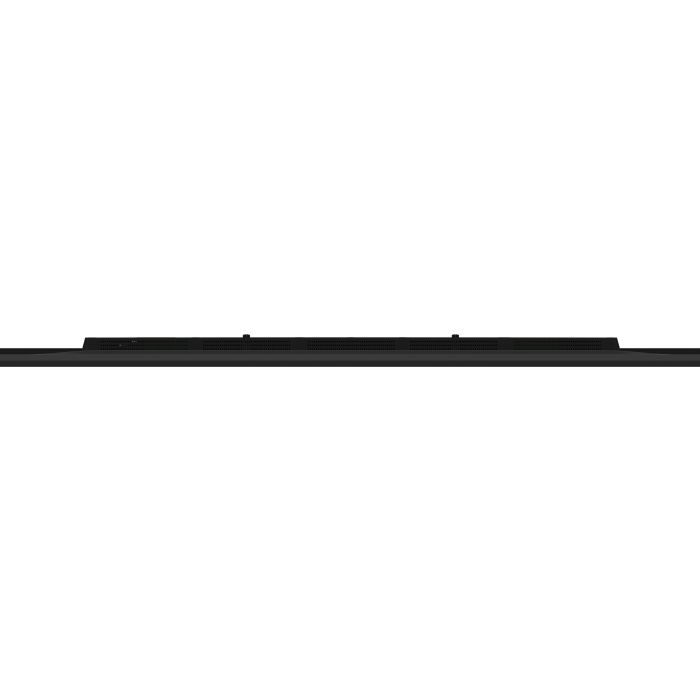

Depth56 millimeter
Height832.5 millimeter
Weight20700 gram
Display width1456.5 millimeter
Display depth56 millimeter
Display height832.5 millimeter
Display weight20700 gram

Packaging data

Package width1345 millimeter
Package depth162 millimeter
Package height1016 millimeter
Package weight28700 gram

Packaging content

Remote control includedYes

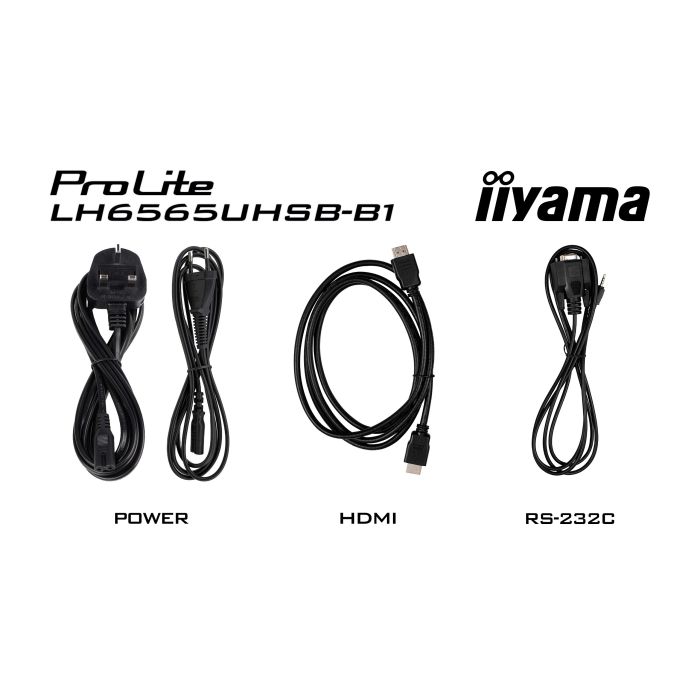

Cables includedAC,HDMI,RS-232

Operational conditions

Operating temperature (T-T)0 - 40 degrees Celsius
Operating relative humidity (H-H)-20 - 60 percent
Storage temperature (T-T)-20 - 60 degrees Celsius

Technical details

Playback mediaYes
Sustainability certificatesErP
Compliance certificatesCE,REACH,RoHS,TÜV mark,UKCA,WEEE

Other features

Quick start guideYes
Power supply typeInternal

Informacje dodatkowe i ostrzeżenia

User controls
picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, low blue light, colour temperature, colour control, picture reset), screen (zoom mode, custom zoom, screen reset), audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio reset, audio out sync, speaker setting), configuration 1 (Android launcher, switch on state, panel saving, RS232-routing, boot on source, WOL, configuration 1 reset, factory reset), configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation, logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (no signal image, IR control, power LED light, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, auto power off, advanced option reset)
