2x2 to 16x16 Modular 4K60 4:2:0 Multi–Format Managed Digital Matrix Switcher
Wszystkie parametryZwiń parametry⌄
Standardy
4K@60Hz (4:2:0), HDCP, HDTV, HDMI
Wejścia
HDMI
Wyjścia
HDMI
Sterowanie
Ethernet, Mini-USB, RS-232, IR
Seria
19" 4U
Skrót właściwości
2x2 to 16x16 Modular 4K60 4:2:0 Multi–Format Managed Digital Matrix Switcher
Opis produktu

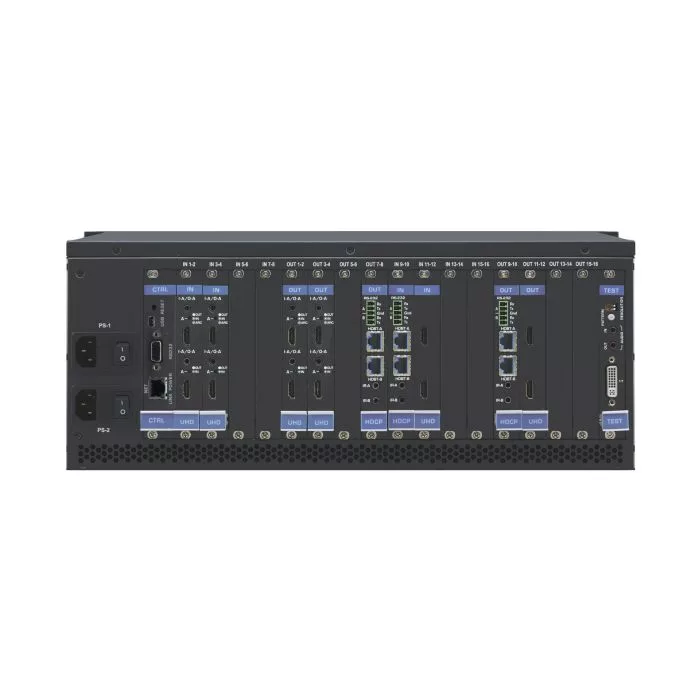

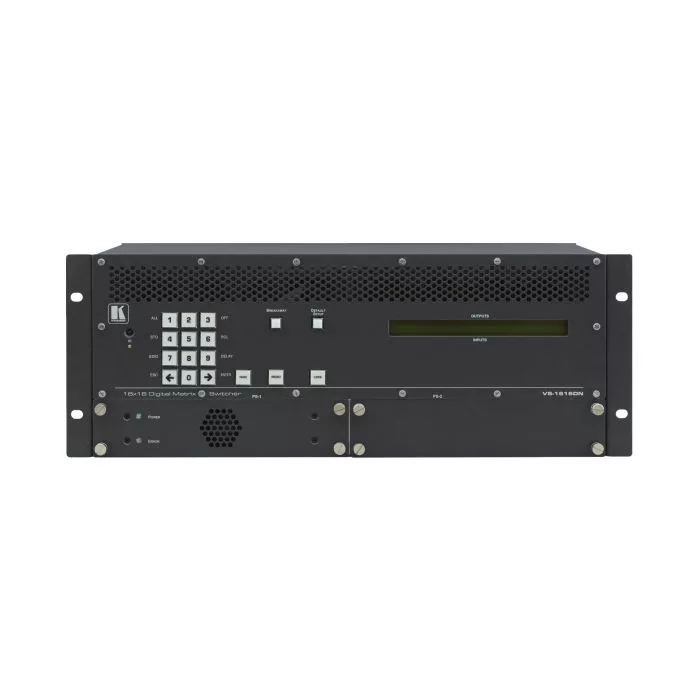

VS−1616DN−EM is a high−performance 2x2 to 16x16 4K@60Hz (4:2:0) modular matrix switcher chassis for AV signals. The unit is a multi−format digital switcher, populated from 2x2 to 16x16 in increments of two inputs and/or two outputs. The chassis includes optional dual, redundant power supplies, a control module and a test module that can monitor and test any input and output in the matrix. VS−1616DN−EM supports a wide variety of input and output cards for different AV signals.
Pokaż pełny opisZwiń opis⌄
VS−1616DN−EM is a high−performance 2x2 to 16x16 4K@60Hz (4:2:0) modular matrix switcher chassis for AV signals. The unit is a multi−format digital switcher, populated from 2x2 to 16x16 in increments of two inputs and/or two outputs. The chassis includes optional dual, redundant power supplies, a control module and a test module that can monitor and test any input and output in the matrix. VS−1616DN−EM supports a wide variety of input and output cards for different AV signals.
Kramer Core™ — FLEXIBLE INFRASTRUCTURE CONVERSION! Copper, Fiber or Twisted Pair — all can be used at the same time, according to input/output module selection. The matrix receives signals from compatible Kramer transmitters, automatically converts between available infrastructure options and sends the signals to compatible Kramer receivers. Kramer Core™ solution is the ultimate in versatility!
Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel) when using compatible cards.
HDTV Compatible.
HDCP Compliant — With DVI (HDCP), HDMI, F670, HDBaseT, HDMI with audio and DGKat modules.
HDMI Support.
Cables — For optimum range and performance, use recommended Kramer cables.
Kramer Equalization & re‑Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
Optional Fast Switching Support — For fraction of a second switching.
Modular & Easily Configurable Platform — Input or output module types can be mixed and added in increments of 2 from 2x2 up to 16x16.
Protocol 3000 Support.
Flexible Configuration — To disable HDCP support and convert between HDMI and DVI.
Default EDID — For each input.
EDID Capture — Copies and stores the EDID from a display device.
Take Button — Executes multiple switches all at once.
Memory Locations — Stores multiple switches as presets to be recalled and executed as needed.
Test Pattern Module — With 4 output resolutions for troubleshooting video problems and additional monitor port with audio embedding and de–embedding.
Front Panel Lockout.
Second Power Supply — Redundant, hot–swappable (optional).
Modular Cooling System — 2 easily replaceable, low–noise, hot–swappable fan racks.
Flexible Control Options — Front panel, IR remote (included), RS–232 (K–Router™ Windows®–based software is included), Ethernet, mini USB port for communicating with unit and FW upgrade, in/out audio jacks for unit testing, and reset button for convenient unit reset (for future use).
