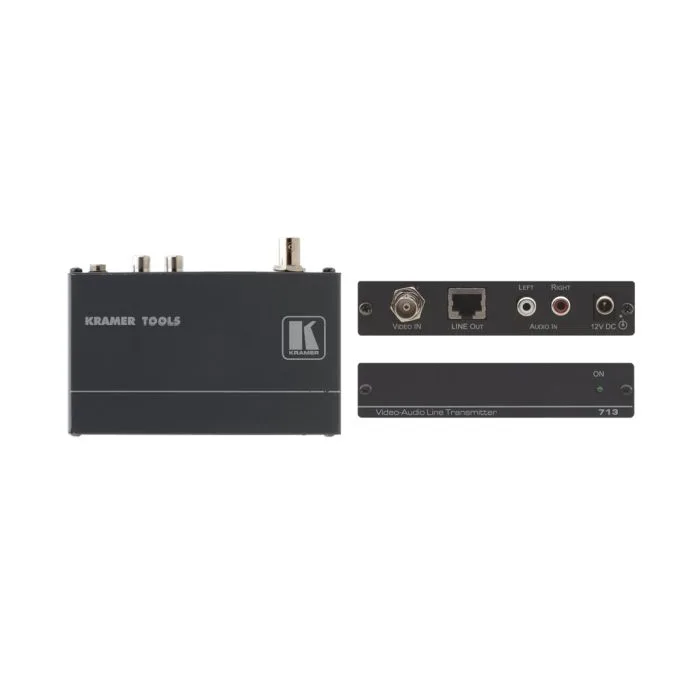

Nadajnik Kramer 713
Nadajnik sygnału kompozyt wideo i niesymetrycznego audio skrętką
Wyjście skrętki: Złącze RJ-45.
SKU
713
The 713 is a twisted pair transmitter for composite video and unbalanced stereo audio signals. The 713 converts composite video and stereo audio into a twisted pair signal and the 714 receiver converts the TP signal back to composite video, stereo audio and S/PDIF digital audio output.
-
System Range - Depending on the model of the receiver. 714−05: up to 600m (2000ft), 714−10: up to 1000m (3000ft), 714−15: up to 1600m (5300ft).
-
High-Quality Audio - 48kHz/24bit.
-
Equalization - Automatic or manual.
-
Compact Kramer TOOLS™ - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
Zastosowania
Remote monitoring for CCTV, medical and schools.
Existing facilities with TP cable already installed.
Teleconferencing in offices and hospitals using existing intercom or telephone wiring.
Security systems.
Przykładowa aplikacja
Specyfikacja
| INPUT: | Video: 1 composite 1Vpp/75Ω on a BNC connector; Audio: 1 unbalanced stereo audio 4dBm/50kΩ on two RCA connectors. |
| OUTPUT: | 1 RJ−45 CAT 5 connector (LINE OUT). |
| VIDEO MAX. SIGNAL LEVEL: | 1.4Vpp (terminated 75Ω). |
| AUDIO MAX. SIGNAL LEVEL: | 2.3Vpp. |
| VIDEO BANDWIDTH (–3dB): | 9MHz. |
| AUDIO BANDWIDTH (–3dB): | 20Hz−20kHz. |
| VIDEO S/N RATIO (unweighted): | >55dB RMS. |
| AUDIO S/N RATIO: | >85db @1kHz. |
| AUDIO CONVERSION: | 48kHz/24−bit; S/PDIF out >0.5V/75Ω terminated. |
| CONTROLS: | Equalization; automatic and manual (+/–). |
| VIDEO COUPLING: | Input: AC; Output: DC. |
| AUDIO COUPLING: | Input: AC; Output: DC. |
| POWER CONSUMPTION: | 12V DC 120mA. |
| DIMENSIONS: | 12cm x 6.9cm x 2.4cm (4.7" x 2.7" x 0.96") W, D, H. |
| WEIGHT: | 0.3kg (0.67lbs) approx. (each). |
| ACCESSORIES: | Power supplies, mounting brackets. |
| OPTIONS: | RK−T1, RK−T3, 19" rack adapters. |
| Skrót właściwości | Nadajnik sygnału kompozyt wideo i niesymetrycznego audio skrętką Wyjście skrętki: Złącze RJ-45. |
|---|
