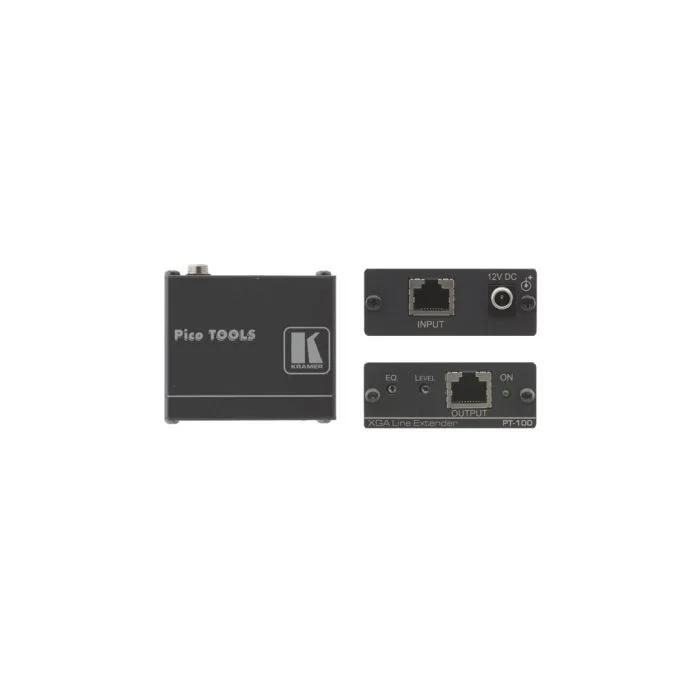

Nadajnik Kramer PT-100
Nadajnik sygnałów przesyłanych skrętką..
Wyjście skrętki: RJ-45.
SKU
PT-100
The PT−100 is a high−performance line equalizer for computer graphics video over twisted pair signals. The unit provides level and equalization controls for signals that arrive at a switcher or other device located between a twisted pair transmitter and receiver.
-
Transmission Range - More than 100m (320ft) over UTP cabling providing a total range of more than 200m (640ft) when placed halfway between the TP transmitter and receiver.
-
Power Connect™ System - A single connection to either the transmitter or the receiver powers the extender when either device is within 50m (150ft) of the extender.
-
Controls - EQ. and level trimmers.
-
Ultra-Compact PicoTOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack adapter.
Zastosowania
Presentation and multimedia applications.
Long-range graphics distribution for schools, hospitals, security and stores.
Przykładowa aplikacja
Specyfikacja
| INPUT: | 1 twisted pair on an RJ−45 connector. |
| OUTPUT: | 1 twisted pair on an RJ−45 connector. |
| RESOLUTION: | Up to WUXGA and 1080p. |
| S/N RATIO: | Video: 58dB unweighted, 68.3dB @5MHz weighted; Audio: <−80dB. |
| CONTROLS: | Equalization and level trimmers. |
| COUPLING: | AC. |
| POWER CONSUMPTION: | 12V DC, 900mA. |
| DIMENSIONS: | 6.2cm x 5cm x 2.4cm (2.44" x 1.97" x 0.94") W, D, H. |
| WEIGHT: | 0.2kg (0.44lbs) approx. |
| ACCESSORIES: | Power supply, rack ears. |
| OPTIONS: | RK−4PT, RK−1TPT, RK−1T2PT 19” rack adapters. |
| Skrót właściwości | Nadajnik sygnałów przesyłanych skrętką.. Wyjście skrętki: RJ-45. |
|---|
