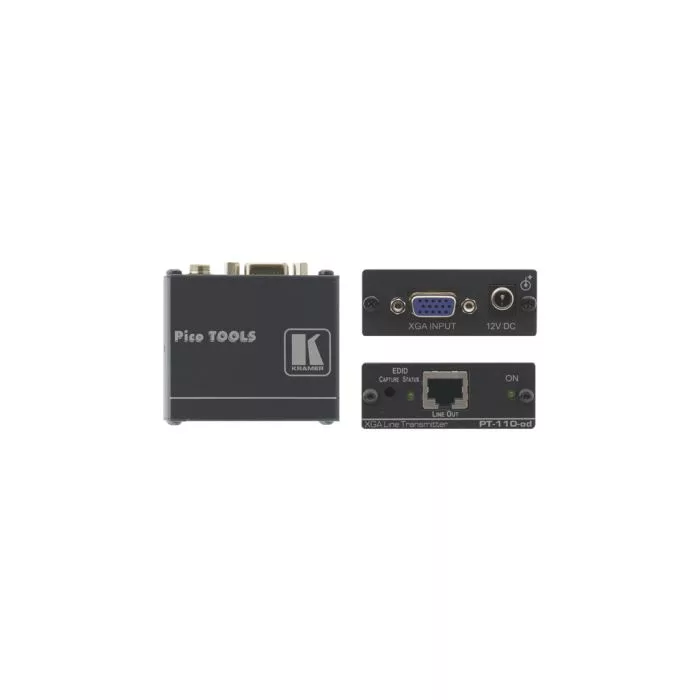

Nadajnik Kramer PT-110-od
Nadajnik sygnałów RGBHV przesyłanych skrętką z transmisją sygnału EDID i ochroną EMP.
Wyjście skrętki: RJ-45.
SKU
PT-110-od
The PT−110−od is a twisted pair transmitter for computer graphics video signals. It converts a computer graphics signal into a twisted pair signal that is converted back to a computer graphics video signal by a TP−120−od receiver.
-
Max. Resolution - WUXGA & 1080p.
-
HDTV Compatible.
-
EMP Protection - Protected from voltage surges induced by the electromagnetic field of nearby lightning. The system does not protect against direct lightning strikes.
-
EDID Capture - Copies and stores the EDID from a display device.
-
Sync Polarity Settings - H & V switches for improved display compatibility with the CAT 5 outputs.
-
System Range - Up to 100m (320ft). Greater distances possible depending on resolution and cable.
-
Cable - STP (shielded twisted pair) such as CAT 5.
-
Power Connect™ System - A single connection to the transmitter or the receiver powers both units when the devices are within 50m (150ft) of each other.
-
Ultra Compact Pico TOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional =RK−4PT= rack adapter.
Zastosowania
Presentation and multimedia applications.
Long range graphics distribution for schools, hospitals, security, and stores.
Specyfikacja
| INPUT: | 1 VGA/UXGA on a 15−pin HD connector. |
| OUTPUT: | 1 RJ−45 LINE OUTPUT connector. |
| RESOLUTION: | Up to WUXGA & 1080p. |
| S/N RATIO: | 69dB (worst case). |
| COUPLING: | AC. |
| POWER CONSUMPTION: | 12V DC, 300mA. |
| DIMENSIONS: | 6cm x 6.5cm x 2.5cm (2.36" x 2.56" x 1") W, D, H. |
| WEIGHT: | 0.14kg (0.31lbs) approx. |
| ACCESSORIES: | Power supply. |
| OPTIONS: | RK−4PT 19−inch rack adapter. |
| Skrót właściwości | Nadajnik sygnałów RGBHV przesyłanych skrętką z transmisją sygnału EDID i ochroną EMP. Wyjście skrętki: RJ-45. |
|---|
