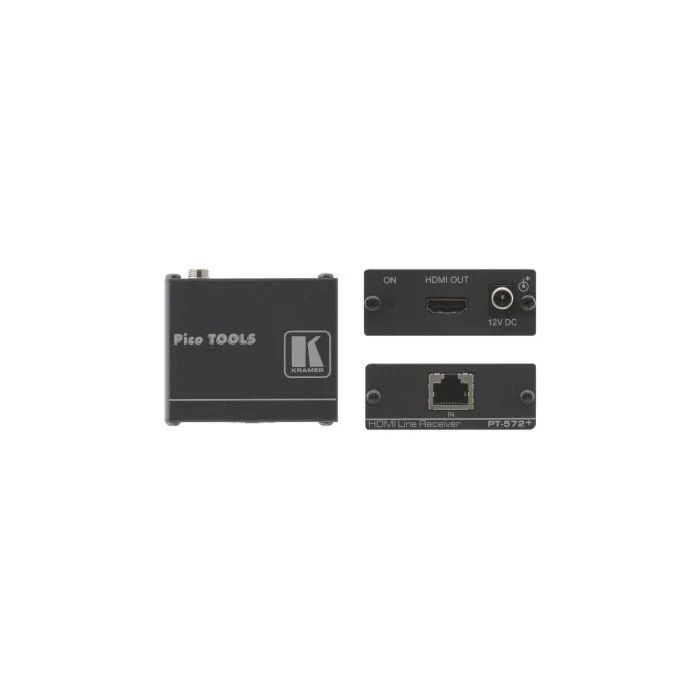

Odbiornik Kramer PT-572+
Odbiornik sygnałów HDMI, wysyłanych skrętką.
Wyjście skrętki: RJ-45.
Sygnał skrętki: DGKat.
SKU
PT-572+
The PT−572+ is a DGKat™ twisted pair receiver for HDMI signals. The PT−571 converts an HDMI signal to a single twisted pair signal and the PT−572+ converts the twisted pair signal back to an HDMI signal.
-
Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
-
HDTV Compatible.
-
HDCP Compliant.
-
DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
-
HDMI Support - 3D, x.v.Color™, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS−HD.
-
3D Pass-Through.
-
System Range - Up to 90m (295ft) at 1080i, or up to 30m (98ft) at 1080p on shielded BC−DGKat524 cable. Up to 90m (295ft) at 1080i, or up to 70m (230ft) at 1080p on shielded BC−DGKat623 cable. Up to 100m (330ft) at 1080i or up to 90m (295ft) at 1080p on shielded BC−DGKat7a23 cable.
-
Cable - Requires Shielded Twisted Pair (STP) cable. For optimum range and performance use, use Kramer's BC−DGKat524, BC−DGKat623 and BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges. Use only shielded cable where both ends of the shield are soldered to ground.
-
EDID PassThru - Passes EDID signals between the source and display.
-
Status LED - Lights red when receiving power only, orange when output and power are attached, and yellow when both an active input and output are attached.
-
Power Connect™ System - A single connection to the transmitter or the receiver powers the system when the devices are within 270ft (90m) of each other.
-
Ultra-Compact Pico TOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack adapter.
Zastosowania
Board, conference, and training rooms.
Presentation systems.
Signal distribution and home theater.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 1 RJ−45 connector. |
| OUTPUTS: | 1 HDMI connector. |
| BANDWIDTH: | 4.95Gbps (1.65Gbps per graphic channel). |
| COMPLIANCE WITH HDMI STANDARD: | Supports HDMI and HDCP. |
| POWER CONSUMPTION: | 12V DC, 250mA. |
| DIMENSIONS: | 6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H. |
| WEIGHT: | 0.14kg (0.3lbs). |
| ACCESSORIES: | Power supply. |
| OPTIONS: | RK−4PT 19” rack adapter. |
| Skrót właściwości | Odbiornik sygnałów HDMI, wysyłanych skrętką. Wyjście skrętki: RJ-45. Sygnał skrętki: DGKat. |
|---|
