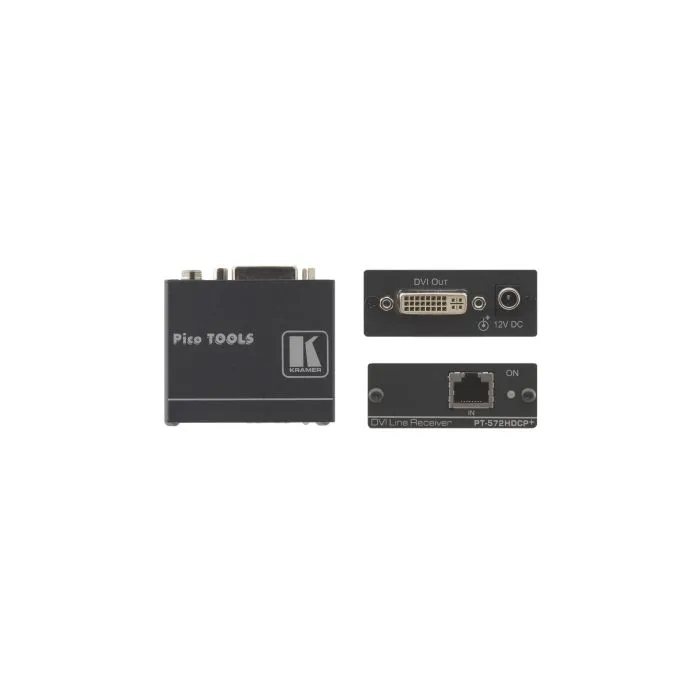

Odbiornik Kramer PT-572HDCP+
Odbiornik sygnałów DVI wysyłanych skrętką.
Wyjście skrętki: RJ-45.
SKU
PT-572HDCP+
The PT−572HDCP+ is a DGKat™ twisted−pair receiver for DVI signals. The PT−571HDCP converts the DVI to twisted pair signal and the PT−572HDCP+ converts the twisted pair signal back to a DVI signal.
-
Max. Data Rate - 4.95Gbps (1.65Gbps per graphic channel).
-
HDTV Compatible.
-
HDCP Compliant.
-
DGKat™ Signal Integration - Kramer’s unique technology for converting TMDS as well as control and communication to signals that run over twisted pair cables. We strongly recommend using Kramer DGKat™ cables designed specifically for optimum performance.
-
System Range - Up to 90m (295ft) at SXGA, or up to 30m (98ft) at UXGA on shielded BC−DGKat524 cable.
Up to 90m (295ft) at SXGA, or up to 70m (230ft) at UXGA on shielded BC−DGKat623 cable.
Up to 100m (330ft) at SXGA, or up to 80m (265ft) at UXGA on shielded BC−DGKat7a23 cable. -
Cable - Requires STP (shielded twisted pair) cable. For optimum range and performance, use Kramer's BC−DGKat524, BC−DGKat623 or BC−DGKat7a23 cables. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non−Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges.
-
EDID PassThru - Passes EDID signals between the source and display.
-
Power Connect™ System - A single connection to the transmitter or the receiver powers the system when the devices are within 270ft (90m) of each other.
-
Ultra-Compact PicoTOOLS™ - 4 units can be rack mounted side−by−side in a 1U rack space with the optional RK−4PT rack adapter.
Zastosowania
Board, conference, and training rooms.
Presentation systems.
Signal distribution and home theater.
Przykładowa aplikacja
Specyfikacja
INPUTS: | 1 DGKat twisted pair on an RJ−45 connector. |
OUTPUTS: | 1 DVI, 1.2Vpp on a DVI Molex 24−pin female connector, DDC signal 5Vpp (TTL). |
BANDWIDTH: | 4.95Gbps (1.65Gbps per graphic channel). |
POWER CONSUMPTION: | 12V DC, 250mA. |
DIMENSIONS: | 6.2cm x 5.2cm x 2.4cm (2.4" x 2.1" x 1") W, D, H. |
WEIGHT: | 0.14kg (0.3lbs). |
ACCESSORIES: | Power supply, mounting bracket. |
OPTIONS: | RK−4PT 19” rack adapter. |
Skrót właściwości | Odbiornik sygnałów DVI wysyłanych skrętką. Wyjście skrętki: RJ-45. |
---|
