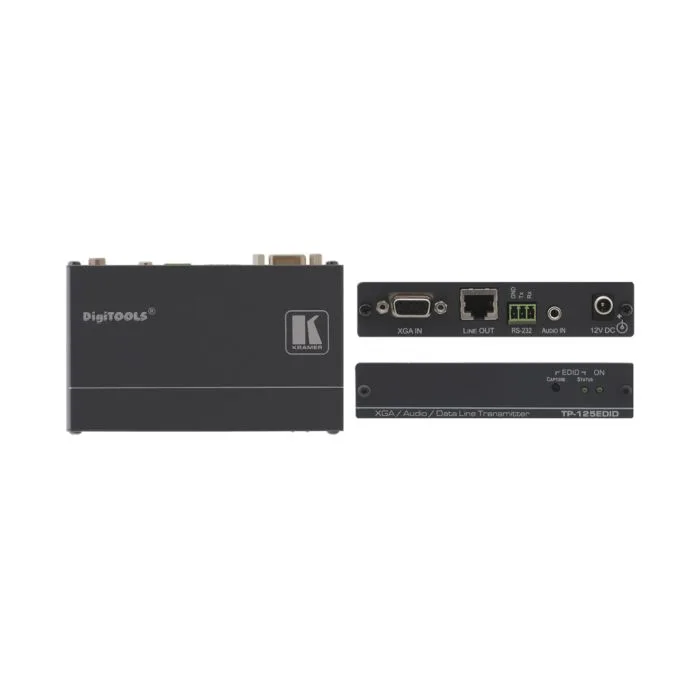

Nadajnik Kramer TP-125EDID
Nadajnik sygnałów VGA i RS-232 wraz z niesymetrycznym stereo audio wysyłanych skrętką oraz sygnał EDID.
Wyjście skrętki: RJ-45.
SKU
TP-125EDID
The TP−125EDID is a high−performance twisted pair transmitter for computer graphics video, unbalanced stereo audio and bidirectional RS−232 control command signals. It converts the input signals to a twisted pair signal and transmits them over CAT 5 cable to a compatible receiver.
-
Max. Resolution - WUXGA & 1080p.
-
HDTV Compatible.
-
System Range - More than 300ft (more than 100m).
-
EDID Capture - Copies and stores the EDID from a display device.
-
Cable - STP (shielded twisted pair) such as Kramer BC−STP CAT 5.
-
Bidirectional RS-232 Interface - Commands and data can flow in both directions via the RS−232 interface, allowing status requests and control of the destination unit.
-
Compact DigiTOOLS® - 3 units can be rack mounted side−by−side in a 1U rack space with the optional RK−3T rack adapter.
Zastosowania
Presentation and multimedia applications.
Long range graphics distribution for schools, hospitals, security, and stores.
Przykładowa aplikacja
Specyfikacja
| INPUTS: | 1 WUXGA on a 15−pin HD connector; 1 audio ANALOG 3.5mm mini jack. |
| OUTPUT: | 1 RJ−45 OUT connector. |
| CONTROL: | RS−232 2−pin terminal block. |
| RS-232 BAUD RATE: | Up to 19200kbps. |
| RS-232 MODE: | Full−duplex. |
| AUDIO BANDWIDTH (-3dB): | 20Hz to 20kHz @0.5dB. |
| RESOLUTION: | Up to WUXGA and 1080p. |
| S/N RATIO: | Video: 58dB unweighted, 68.3dB @5MHz weighted; Audio: <−80dB. |
| TOTAL GAIN: | Audio: Analog/analog: 0dB; Analog/SPDIF: –12dBFS. |
| COUPLING: | AC. |
| THD+N: | Audio: <0.01%. |
| POWER CONSUMPTION: | 12V DC, 60mA. |
| DIMENSIONS: | 12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H. |
| WEIGHT: | 0.3kg (0.67lbs) approx. |
| ACCESSORIES: | Power supply. |
| OPTIONS: | RK−3TB 19” rack mount adapter. |
| Skrót właściwości | Nadajnik sygnałów VGA i RS-232 wraz z niesymetrycznym stereo audio wysyłanych skrętką oraz sygnał EDID. Wyjście skrętki: RJ-45. |
|---|
