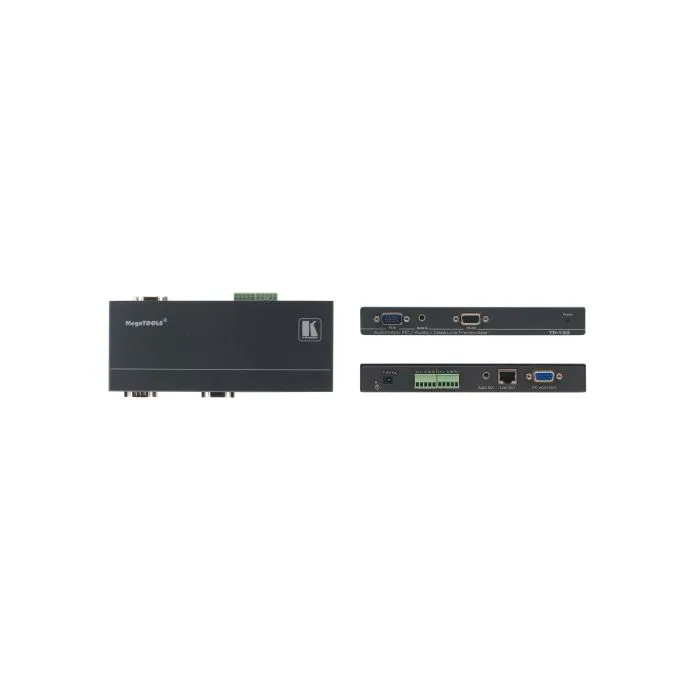

Nadajnik Kramer TP-133

Nadajnik sygnałów VGA i RS-232 wraz z stereofonicznym audio wysyłanych skrętką. Wyjście skrętki: RJ-45.
SKU
TP-133

The TP−133 is a high−performance, extended range twisted pair transmitter for computer graphics video, balanced/unbalanced stereo audio and bidirectional RS−232 data signals. The TP−133 converts input signals to twisted pair signals and the TP−134 converts the twisted pair signals back into the original formats.

Zastosowania

Presentation and multimedia applications.
Long-range graphics distribution for schools, hospitals, security and stores.

Przykładowa aplikacja

Kramer TP-133

Specyfikacja

INPUTS: 1 computer graphics on a 15−pin HD connector, 1 unbalanced stereo audio on a 3.5mm mini jack, 1 balanced stereo audio on a 5−pin terminal block, 1 RS−232 bidirectional on a 9 pin D−sub connector.
OUTPUTS: 1 looping computer graphics on a 15−pin HD connector, 1 looping balanced stereo audio on a 5−pin terminal block, 1 looping unbalanced stereo audio on a 3.5mm mini jack, 1 twisted pair on an RJ−45 connector.
VIDEO RESOLUTION: Up to WUXGA.
AUDIO BANDWIDTH: 20Hz–20kHz (−3dB).
S/N RATIO: 84dB unweighted.
COUPLING: AC.
AUDIO TND+N: 0.02% unweighted.
RS-232 BAUD RATE: Up to 115200bps, full−duplex.
POWER CONSUMPTION: 5.3V DC, 450mA.
TRANSMISSION RANGE: Up to 200m (656ft).
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F).
STORAGE TEMPERATURE: −40° to +70°C (−40° to 158°F).
HUMIDITY: 10% to 90%, RHL non−condensing.
DIMENSIONS: 19.05cm x 8.63cm x 2.44cm (7.5" x 3.4" x 0.96") W, D, H.
WEIGHT: 0.33kg (0.73lbs) approx.
ACCESSORIES: Power supply, AD−GF/GF 15−pin HD (F/F) gender changer.
OPTIONS: RK−T2B 19” rack adapter.
Specyfikacja techniczna
Skrót właściwości Nadajnik sygnałów VGA i RS-232 wraz z stereofonicznym audio wysyłanych skrętką. Wyjście skrętki: RJ-45.
